BC 262 DL - RedMax Brushcutter (1994-03) 010 - TRIMMER GROUP Parts Diagram

Brushcutter

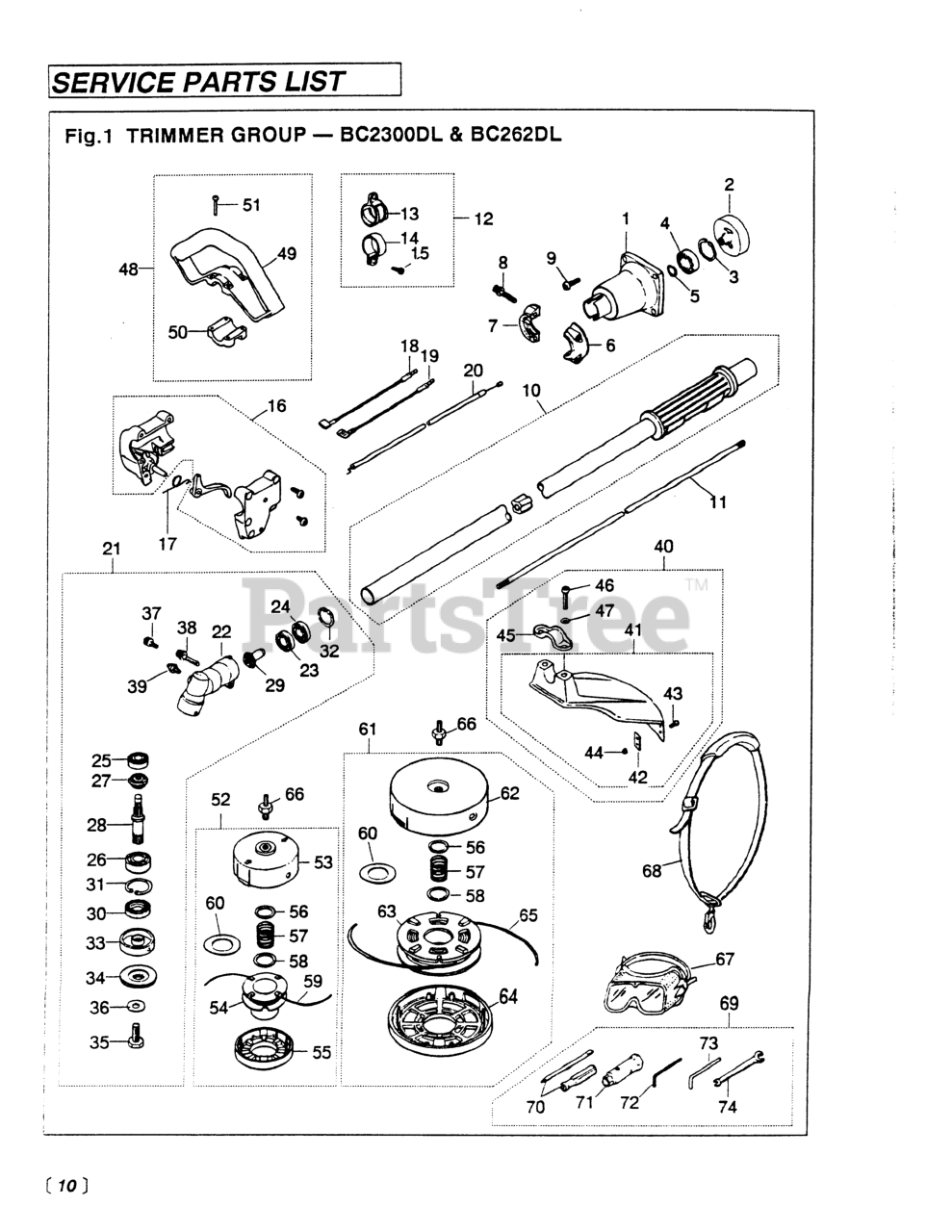

010 - TRIMMER GROUP Parts Diagram

  • Title
1

RedMax 646011100

6460-11900
(Superseded to 574016801)

$

$

Not available

2

RedMax 352012111

DRUM CLUTCH (USE 6460-12112)
(Superseded to 515636801)

$43.99

$

Usually ships in 3-10 days

0

3

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

4

RedMax 0600406001

BEARING
(Superseded to 506610101)

$11.99

$

Usually ships in 3-10 days

0

5

RedMax 313013270

04064-01210
(Superseded to 516124101)

$4.99

$

In Stock, only 3 left!

0

6

RedMax 646011130

CLAMP, LEFT
(Superseded to 521471401)

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 646011140

CLAMP, RIGHT
(Superseded to 521471501)

$6.49

$

Usually ships in 3-10 days

0

8

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.49

$

Usually ships in 3-10 days

0

9

RedMax 022550620

BOLT, M6 X 20

$0.39

$

Usually ships in 3-10 days

0

10

RedMax 180771BC

180931
(Superseded to 574048801)

$

$

Not available

11

RedMax 936612210

3520-12212
(Superseded to 514344201)

$53.99

$

Usually ships in 3-10 days

0

12

RedMax 646017100

HANGER COMPLETE
(Superseded to 574087101)

$

$

Not available

13

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

14

RedMax 646017120

CLAMP
(Superseded to 515640201)

$

$

Not available

15

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$

$

Not available

16

RedMax 180251

180975
(Superseded to 574049001)

$

$

Not available

17

RedMax 610314

SPRING, THROTTLE TRIGGER
(Superseded to 574065001)

$

$

Not available

18

RedMax 180768

CORD, RED (LEAD WIRE)
(Superseded to 574048001)

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 180769

CORD, BLACK (LEAD WIRE)
(Superseded to 532180769)

$40.99

$

In Stock, only 1 left!

0

20

RedMax 646082100

6502-82100
(Superseded to 574087701)

$

$

Not available

21

RedMax 646013000

GEARCASE ASSEMBLY

$

$

Not available

22

RedMax 646013110

GEARCASE
(Superseded to 574017001)

$

$

Not available

23

RedMax 646013410

BEARING
(Superseded to 574018101)

$

$

Not available

24

RedMax 646013420

BEARING
(Superseded to 574018201)

$

$

Not available

25

RedMax 646013430

BEARING
(Superseded to 574018301)

$

$

Not available

26

RedMax 0600106001

BEARING
(Superseded to 516129901)

$7.99

$

In Stock, only 1 left!

0

27

RedMax 646013220

GEAR
(Superseded to 574017301)

$

$

Not available

28

$20.67

$

Usually ships in 3-10 days

0

29

RedMax 646013310

PINION
(Superseded to 574087001)

$29.99

$

Usually ships in 3-10 days

0

30

RedMax 646013140

SEAL, OIL
(Superseded to 574017101)

$

$

Not available

31

RedMax 646013340

RING, SNAP
(Superseded to 574017701)

$

$

Not available

32

RedMax 646013350

RING, SNAP

$0.63

$

Usually ships in 3-10 days

0

33

RedMax 646013240

HOLDER (A)

$

$

Not available

34

RedMax 646013250

HOLDER (B)

$

$

Not available

$

$

Not available

36

RedMax 646013370

WASHER
(Superseded to 574018001)

$3.99

$

Usually ships in 3-10 days

0

37

RedMax 0125250512

BOLT, M5 x 12

$0.45

$

Usually ships in 3-10 days

0

38

RedMax 0125250525

BOLT, M5 X 25

$0.45

$

Usually ships in 3-10 days

0

39

RedMax 646013360

FITTING, GREASE
(Superseded to 574017901)

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 646024000

GUARD ASSEMBLY

$

$

Not available

41

RedMax 646024100

6460-24000

$

$

Not available

42

RedMax 604124140

BLADE
(Superseded to 521404201)

$

$

Not available

43

RedMax 026330512

SCREW, M5 x 12
(Superseded to 510478301)

$3.99

$

Usually ships in 3-10 days

0

44

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, only 4 left!

0

45

RedMax 354124121

CLAMP
(Superseded to 514368601)

$6.49

$

Usually ships in 3-10 days

0

46

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

In Stock, only 2 left!

0

47

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

48

RedMax 646214100

HANDLE ASSEMBLY
(Superseded to 521473001)

$20.99

$

Usually ships in 3-10 days

0

49

RedMax 646214310

HANDLE
(Superseded to 515642801)

$

$

Not available

50

RedMax 646214320

CLAMP
(Superseded to 521473201)

$6.49

$

Usually ships in 3-10 days

0

51

RedMax 026390530

SCREW, M5 x 30
(Superseded to 516113501)

$

$

Not available

52

RedMax PT104

4
(Superseded to 511010601)

$58.99

$

Usually ships in 3-10 days

0

53

RedMax 646015110

6460-15113
(Superseded to 515639101)

$28.99

$

Usually ships in 3-10 days

0

54

RedMax 646015140

6460-15141
(Superseded to 515639501)

$11.99

$

In Stock, only 1 left!

0

55

RedMax 646015130

6460-15131
(Superseded to 515639401)

$11.99

$

Usually ships in 3-10 days

0

56

RedMax 326815150

PLATE, LARGE
(Superseded to 520939401)

$

$

Not available

57

RedMax 604199161

6041-99162
(Superseded to 515517001)

$9.99

$

Usually ships in 3-10 days

0

58

RedMax 326815170

PLATE, SMALL
(Superseded to 520939801)

$6.49

$

Usually ships in 3-10 days

0

59

RedMax 646015180

CORD
(Superseded to 521472601)

$

$

Not available

60

RedMax 646015210

SPACER
(Superseded to 521472701)

$

$

Not available

61

RedMax PT100

6
(Superseded to 515516101)

$

$

Not available

62

RedMax 604199110

6041-99111
(Superseded to 521404702)

$34.99

$

Usually ships in 3-10 days

0

63

RedMax 604199140

6041-99141
(Superseded to 515516901)

$74.99

$

Usually ships in 3-10 days

0

64

RedMax 604199130

COVER
(Superseded to 521404801)

$60.99

$

Usually ships in 3-10 days

0

65

RedMax 604199181

CORD
(Superseded to 521405301)

$30.99

$

Usually ships in 3-10 days

0

66

RedMax PTA008

ARBOR, 8MM
(Superseded to 515517601)

$6.49

$

Usually ships in 3-10 days

0

67

RedMax 180773

GOGGLE
(Superseded to 532180773)

$47.99

$

Usually ships in 3-10 days

0

68

RedMax 160197

SHOULDER STRAP ASSY
(Superseded to 574046801)

$

$

Not available

69

RedMax 355091000

TOOL SET

$15.97

$

Usually ships in 3-10 days

0

70

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

71

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

72

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

73

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

74

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0
