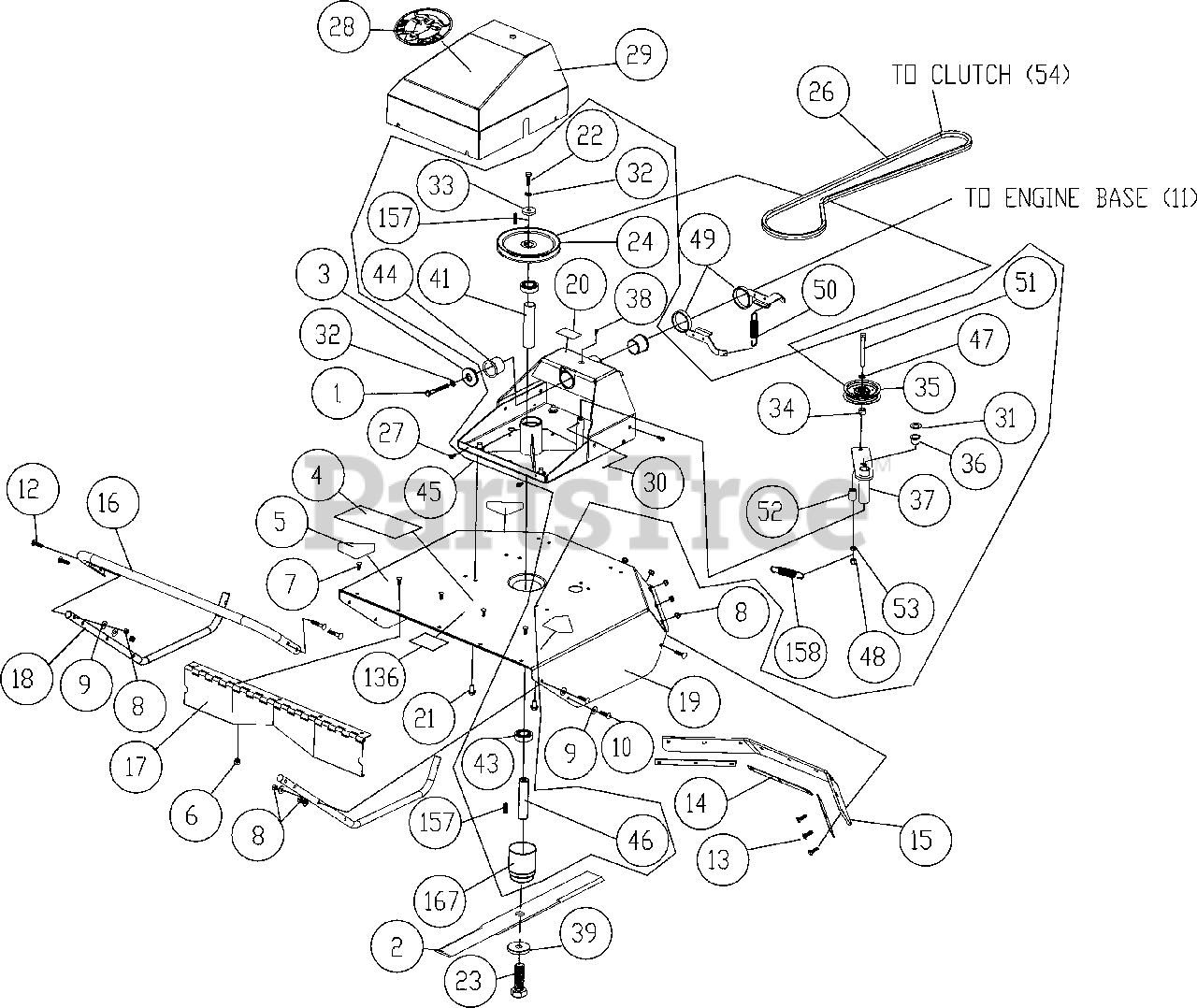

BC 2600 ICH - Billy Goat 26" Brush Cutter DECK Parts Diagram

26" Brush Cutter

DECK Parts Diagram

  • Title
1

Billy Goat 900154

SCREWCAP 3/8-24 X 1” HCS GR. 8

$2.49

$

Usually ships in 2-11 days

0

2

Billy Goat 501224

BLADE 26” FLAT BC26
(Superseded to 501601)

$99.99

$

In Stock, Qty 5

0

3

Billy Goat 501214

WASHER DECK RETAINNG

$12.99

$

Usually ships in 2-11 days

0

4

Billy Goat 501500

LABEL BADGING BC26 HYDRO

$31.99

$

Usually ships in 2-11 days

0

5

Billy Goat 400424

LABEL DANGER

$3.99

$

In Stock, only 1 left!

0

6

Billy Goat 8160001

NUT LOCK 1/4-20 ZP

$0.99

$

In Stock, Qty 8

0

7

Billy Goat 8024021

BOLT CARRIAGE 1/4-20 X 3/4” HCS ZP

$0.99

$

Usually ships in 2-11 days

0

8

Billy Goat 8160002

NUT LOCK 5/16-18 ZP

$0.99

$

In Stock, only 4 left!

0

9

Billy Goat 8171003

WASHER 5/16 FLAT

$0.99

$

In Stock, Qty 10

0

10

Billy Goat 8041030

SCREWCAP 5/16”-18 X 1 1/2 HCS ZP

$0.99

$

Usually ships in 2-11 days

0

12

Billy Goat 8024043

CARRIAGE BOLT 5/16”-18 X 1 3/4”

$0.99

$

In Stock, Qty 6

0

13

Billy Goat 8024040

CARRIAGE BOLT 5/16”-18 X 1”

$0.99

$

In Stock, only 1 left!

0

14

Billy Goat 501239

PLATE CLAMP SKIRTING BC26

$5.49

$

Usually ships in 2-11 days

0

15

Billy Goat 501231

DEFLECTOR RUBBER

$108.99

$

Usually ships in 2-11 days

0

16

Billy Goat 501403

BAR GUARD BC26

$46.99

$

Usually ships in 2-11 days

0

17

Billy Goat 501211

HINGE DEFLECTOR BC26

$123.99

$

In Stock, only 1 left!

0

18

Billy Goat 501407

SKID BC26

$63.99

$

Usually ships in 2-11 days

0

19

Billy Goat 501600

DECK BC26 WA W/LABELS

$447.99

$

Usually ships in 2-11 days

0

20

Billy Goat 900327

LABEL DANGER GUARD

$3.99

$

In Stock, only 3 left!

0

21

Billy Goat 791080

SCREW SER HEX WASHER FLNG

$1.49

$

In Stock, only 1 left!

0

22

Billy Goat 8041051

SCREWCAP 3/8”-16 X 1 1/4” HCS ZP

$0.99

$

In Stock, Qty 9

0

23

Billy Goat 501345

SCREWCAP 9/16”-18 X 1 3/4” GR 8

$3.49

$

In Stock, only 2 left!

0

24

Billy Goat 501308

PULLEY 7” OD X 1.000 BORE

$75.99

$

In Stock, only 1 left!

0

26

Billy Goat 501220

BELT 6972 POWERATED

$98.99

$

Usually ships in 2-11 days

0

27

Billy Goat 890359

SCREW SELT TAP 1/4-20 X 5/8” HWH TYPE F

$1.49

$

Usually ships in 2-11 days

0

28

Billy Goat 430303

LABEL PRODUCT DECAL LG CIRCLE

$6.99

$

In Stock, only 1 left!

0

29

Billy Goat 501602

COVER BELT DECK WA BC26 W/LABEL

$167.99

$

Usually ships in 2-11 days

0

30

Billy Goat 8197031

PIN COTTER 1/8” X 1”

$0.99

$

Usually ships in 2-11 days

0

31

Billy Goat 850238

WASHER .765 ID X 1.25 OD X .06 THK

$1.49

$

In Stock, only 2 left!

0

32

Billy Goat 8177012

WASHER LOCK 3/8 S/T MED

$0.99

$

In Stock, Qty 9

0

33

Billy Goat 440153

WASHER 1.5 OD X .453 ID X .25 THK

$2.99

$

Usually ships in 2-11 days

0

34

Billy Goat 830526

TUBE PIVOT IDLER VQ

$5.49

$

In Stock, only 1 left!

0

35

Billy Goat 500113

PULLEY IDLER 4.00 OD X 3/8” BORE

$34.99

$

Usually ships in 2-11 days

0

36

Billy Goat 360183

BUSHING PIVOT FRAME AE

$6.99

$

Usually ships in 2-11 days

0

37

Billy Goat 501103

ARM IDLER DECK WA BC

$37.99

$

Usually ships in 2-11 days

0

38

Billy Goat 610363

ZERK FITTING GREASE

$0.99

$

Usually ships in 2-11 days

0

39

Billy Goat 501346

WASHER BLADE BC26

$18.99

$

Usually ships in 2-11 days

0

41

Billy Goat 501245

SPACER SPINDLE BEARING BC26

$21.99

$

In Stock, only 1 left!

0

43

Billy Goat 501302

BEARING 1.00” SEALED PRESS IN

$13.99

$

In Stock, only 2 left!

0

44

Billy Goat 501217

BUSHING 1.500 ID X 1.5 LONG FLANGED

$

$

Not available

45

Billy Goat 501604

BRACKET DECK MOUNT WA BC26 W/LABEL

$1186.99

$

Usually ships in 2-11 days

0

46

Billy Goat 501341

SHAFT BLADE BC26

$61.99

$

In Stock, only 1 left!

0

47

Billy Goat 8172009

WASHER 3/8” SAE

$1.49

$

In Stock, Qty 5

0

48

Billy Goat 8160003

NUT LOCK 3/8-16 HEX

$0.99

$

In Stock, only 1 left!

0

49

Billy Goat 501116

ARM RTN WA BC26

$52.99

$

Usually ships in 2-11 days

0

50

Billy Goat 351254

SPRING LIFT ASSIST TENSION

$9.99

$

In Stock, only 1 left!

0

51

Billy Goat 8041061

SCREWCAP 3/8”-16 X 3 3/4” HCS ZP

$1.99

$

In Stock, only 4 left!

0

52

Billy Goat 360138

BUSHING PIVOT LIFT

$6.99

$

In Stock, only 1 left!

0

53

Billy Goat 8161042

NUT LOCK 3/8”-16 LT WT TH ZP

$0.99

$

In Stock, Qty 6

0

136

Billy Goat 810736

LABEL WARNING FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

157

Billy Goat 9201109

KEY 1/4 SQ. X 0.75”

$2.99

$

In Stock, only 2 left!

0

158

Billy Goat 501261

SPRING IDLER BC

$11.99

$

In Stock, only 2 left!

0

167

Billy Goat 501345

ADAPTER BLADE WA BC26

$3.49

$

In Stock, only 2 left!

0
