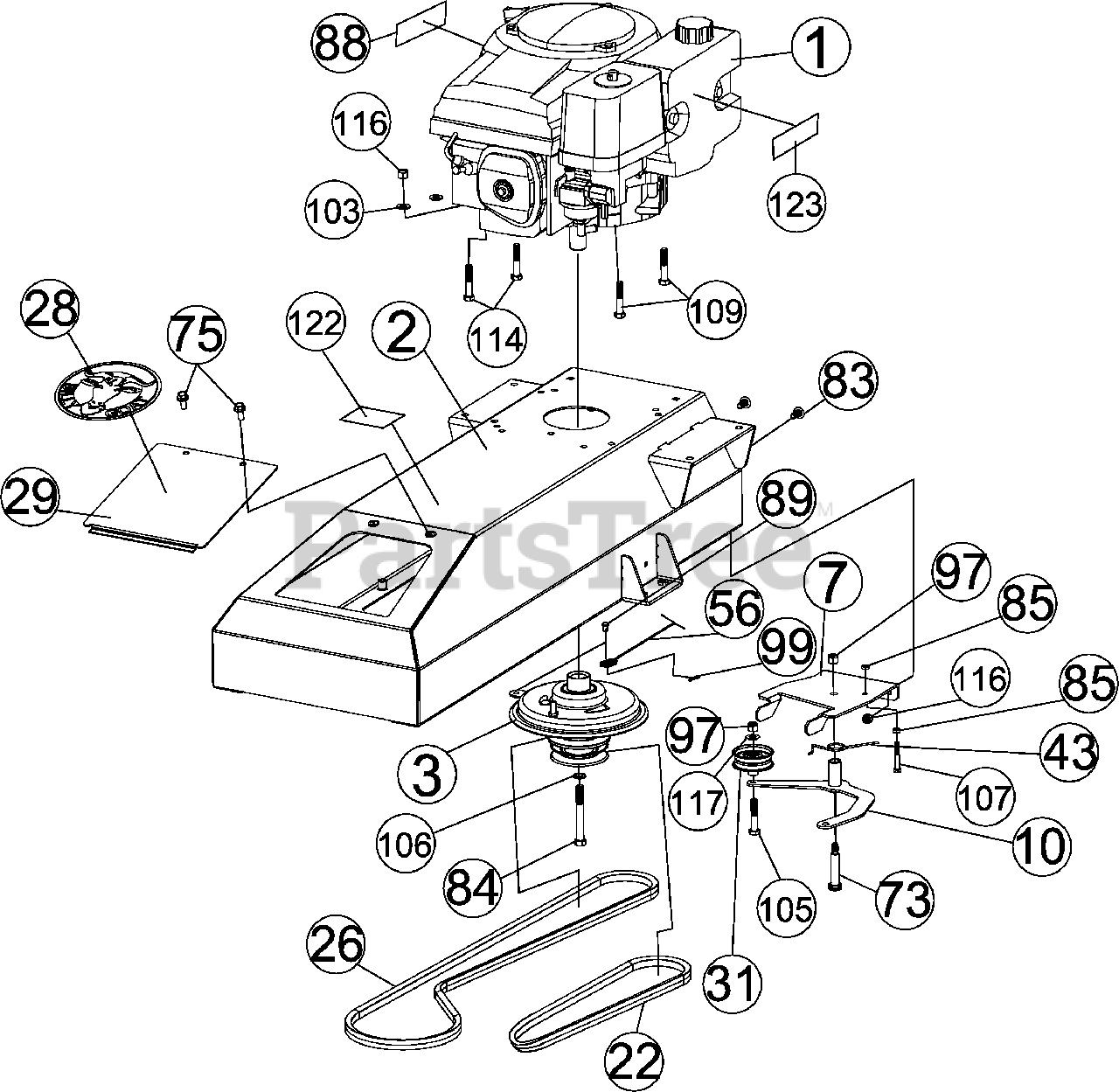

BC 2600 HMF - Billy Goat 26" Brush Cutter ENGINE Parts Diagram

26" Brush Cutter

ENGINE Parts Diagram

  • Title

1

Billy Goat 500334

ENGINE 13HP HONDA GX390UTQA2

$

$

Currently unavailable

2

Billy Goat 501120-S

BASE ENGINE BC26 FIXED WA W/LABELS

$800.99

$

Usually ships in 2-11 days

0

3

Billy Goat 501223

CLUTCH
(Superseded to 501223-S)

$470.99

$

Usually ships in 2-11 days

0

7

Billy Goat 501249

BRACKET BELT TIGHTEN BC26

$27.99

$

Usually ships in 2-11 days

0

10

Billy Goat 501117

ARM IDLER DRIVE MECH WA

$39.99

$

In Stock, only 1 left!

0

22

Billy Goat 501268

BELT 6830 POWERATED

$26.99

$

In Stock, only 2 left!

0

26

Billy Goat 501220

BELT 6972 POWERATED

$98.99

$

Usually ships in 2-11 days

0

28

Billy Goat 430303

LABEL PRODUCT DECAL LG CIRCLE

$6.99

$

In Stock, only 1 left!

0

29

Billy Goat 500233

DOOR BASE ENGINE BC

$24.99

$

Usually ships in 2-11 days

0

31

Billy Goat 521121

PULLEY IDLER ARM HP

$27.99

$

Usually ships in 2-11 days

0

43

Billy Goat 510142

SPRING TRANS IDLER

$9.99

$

Usually ships in 2-11 days

0

56

Billy Goat 501279

CABLE CLUTCH BC26

$37.99

$

Usually ships in 2-11 days

0

73

Billy Goat 520031

BOLT SHOULDER 1/2" X 2"

$6.99

$

In Stock, only 1 left!

0

75

Billy Goat 351264

SER HEX WSHR FLNG SCR 5/16"-18 X 3/4"

$0.99

$

In Stock, Qty 6

0

83

Billy Goat 8024039

BOLT CARRIAGE 5/16"-18 X 3/4" ZP

$0.99

$

In Stock, Qty 10

0

84

Billy Goat 440150

SCREWCAP 7/16" -20 X 3 1/2" GR. 8 W/PATCH

$4.99

$

Usually ships in 2-11 days

0

85

Billy Goat 8143001

NUT JAM 1/4" NC HEX

$0.99

$

Usually ships in 2-11 days

0

88

N/A

LABEL WARNING FUEL EN/SP

$

$

Not available

89

Billy Goat 440124

PIN CLEVIS .25 X .050

$1.49

$

In Stock, only 4 left!

0

97

Billy Goat 8160003

NUT LOCK 3/8"-16 HEX

$0.99

$

In Stock, Qty 6

0

99

Billy Goat 440193

PIN HITCH CLIP .051 X 3/4"

$0.99

$

In Stock, only 3 left!

0

103

Billy Goat 8171003

WASHER 5/16" FLAT ZP

$0.99

$

In Stock, Qty 10

0

105

Billy Goat 8041054

SCREWCAP 3/8"-16 X 2" HCS ZP

$0.99

$

In Stock, Qty 5

0

106

Billy Goat 8177013

WASHER LOCK 7/16" S/T MED

$0.99

$

In Stock, Qty 9

0

107

Billy Goat 8041009

SCREWCAP 1/4"-20 X 1 3/4" HCS ZP

$0.99

$

In Stock, only 2 left!

0

109a

Billy Goat 850408

SCREW 3/8" X 1 1/2" TCS

$0.99

$

Usually ships in 2-11 days

0

109b

Billy Goat 400164

SCREWCAP 5/16"- 24 X 1" GR. 8 ZP W/PATCH

$

$

Not available

114

Billy Goat 8041031

SCREWCAP 5/16"- 18 X 1 3/4" GR. 5 HCS ZP

$0.99

$

In Stock, only 3 left!

0

116

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX ZP

$0.99

$

In Stock, only 4 left!

0

117

Billy Goat 8172009

WASHER 3/8" SAE

$1.49

$

In Stock, Qty 5

0

122

Billy Goat 900327

LABEL GUARDS

$3.99

$

In Stock, only 3 left!

0

123

Billy Goat 100256

LABEL SPARK ARRESTOR

$2.99

$

In Stock, Qty 5

0
