BC 2600 HMF - Billy Goat 26" Brush Cutter DECK Parts Diagram

26" Brush Cutter

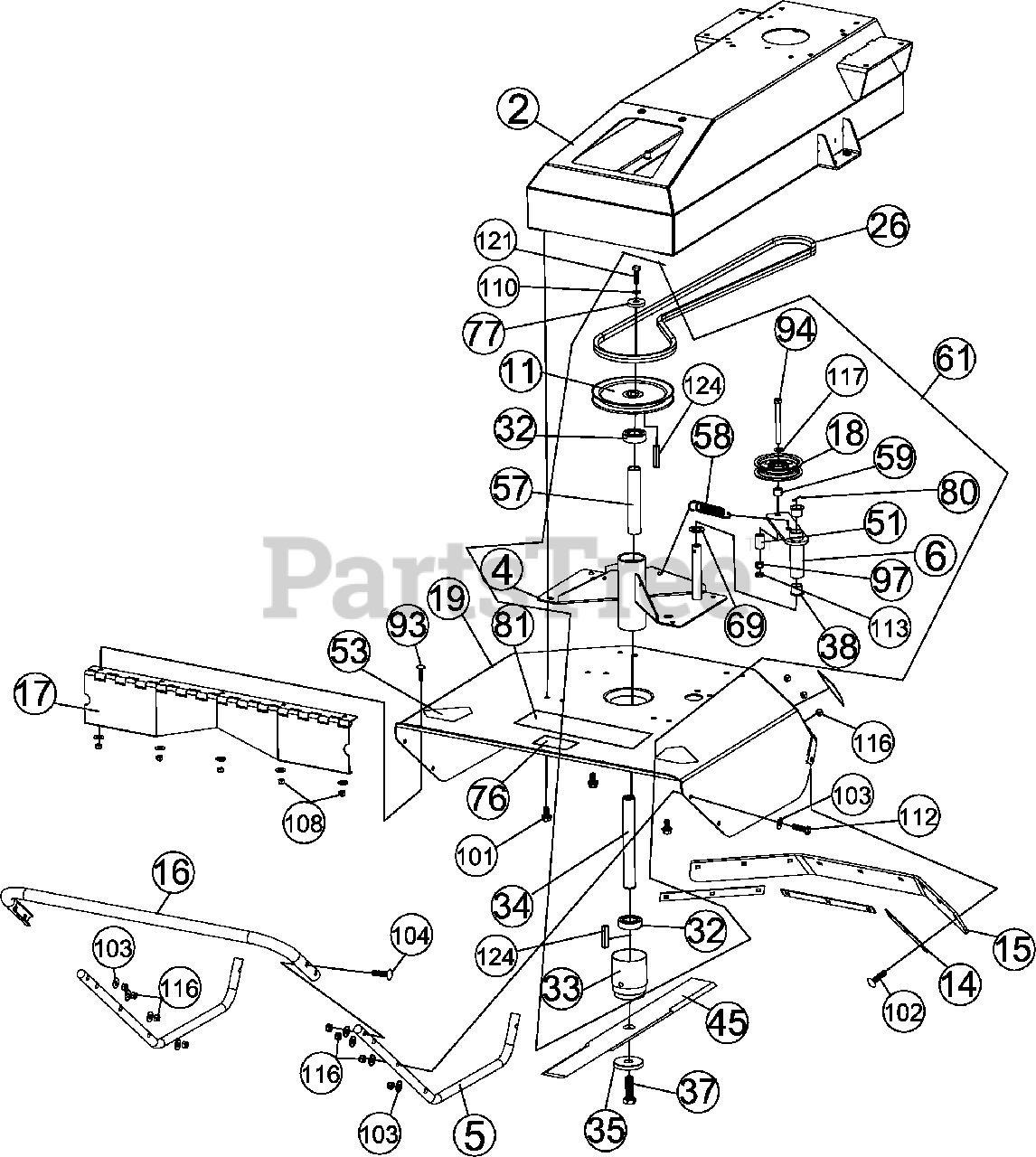

DECK Parts Diagram

  • Title
2

Billy Goat 501120-S

BASE ENGINE BC26 FIXED WA W/LABELS

$800.99

$

Usually ships in 2-11 days

0

4

Billy Goat 501118

BRACKET DECK MOUNT WA BC

$210.99

$

Usually ships in 2-11 days

0

5

Billy Goat 501407

SKID BC26

$63.99

$

Usually ships in 2-11 days

0

6

Billy Goat 501103

ARM IDLER DECK WA BC

$37.99

$

Usually ships in 2-11 days

0

11

Billy Goat 501308

PULLEY 7" OD X 1.00" BORE

$75.99

$

In Stock, only 1 left!

0

14

Billy Goat 501239

PLATE CLAMP SKIRTING BC26

$5.49

$

Usually ships in 2-11 days

0

15

Billy Goat 501231

DEFLECTOR RUBBER BC26

$108.99

$

Usually ships in 2-11 days

0

16

Billy Goat 501403

BAR GUARD BC26

$46.99

$

Usually ships in 2-11 days

0

17

Billy Goat 501211

HINGE DEFLECTOR BC26

$123.99

$

In Stock, only 1 left!

0

18

Billy Goat 500113

PULLEY IDLER 4.00" OD X 3/8" BORE

$34.99

$

Usually ships in 2-11 days

0

19

Billy Goat 501102

DECK WA BC26

$

$

Not available

26

Billy Goat 501220

BELT 6972 POWERATED

$98.99

$

Usually ships in 2-11 days

0

32

Billy Goat 501302

BEARING 1.00" SEALED PRESS IN

$13.99

$

In Stock, only 2 left!

0

33

Billy Goat 501343

ADAPTER BLADE WA BC26

$137.99

$

Usually ships in 2-11 days

0

34

Billy Goat 501341

SHAFT BLADE BC2600

$61.99

$

In Stock, only 1 left!

0

35

Billy Goat 501346

WASHER BLADE BC26

$18.99

$

Usually ships in 2-11 days

0

37

Billy Goat 501345

SCREWCAP 9/16"-18 X 1 3/4" GR 8

$3.49

$

In Stock, only 2 left!

0

38

Billy Goat 360138

BUSHING PIVOT LIFT

$6.99

$

In Stock, only 1 left!

0

45

Billy Goat 501224

BLADE 26" FLAT BC26
(Superseded to 501601)

$99.99

$

In Stock, Qty 5

0

51

Billy Goat 360183

BUSHING PIVOT FRAME AE

$6.99

$

Usually ships in 2-11 days

0

53

Billy Goat 900327

LABEL DANGER

$3.99

$

In Stock, only 3 left!

0

57

Billy Goat 501245

SPACER SPINDLE BEARING BC2600

$21.99

$

In Stock, only 1 left!

0

58

Billy Goat 501261

SPRING IDLER

$11.99

$

In Stock, only 2 left!

0

59

Billy Goat 830526

TUBE PIVOT IDLER VQ

$5.49

$

In Stock, only 1 left!

0

61

Billy Goat 501608

SPINDLE ASSY BC26 FIXED
(Superseded to 501609)

$614.99

$

Usually ships in 2-11 days

0

69

Billy Goat 850238

WASHER .765" ID X 1.25" OD X .06"

$1.49

$

In Stock, only 2 left!

0

76

Billy Goat 810736

LABEL DANGER FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

77

Billy Goat 440153

WASHER 1.5 OD X .453 ID X .25 THK

$2.99

$

Usually ships in 2-11 days

0

80

Billy Goat 8197031

PIN COTTER 1/8" X 1"

$0.99

$

Usually ships in 2-11 days

0

81

Billy Goat 501501

LABEL OUTBACK BC26 MECH

$16.99

$

In Stock, Qty 6

0

93

Billy Goat 8024021

BOLT CARRIAGE 1/4"-20 X 3/4" ZP

$0.99

$

Usually ships in 2-11 days

0

94

Billy Goat 8041061

SCREWCAP 3/8"- 16 X 3 3/4" HCS ZP

$1.99

$

In Stock, only 4 left!

0

97

Billy Goat 8160003

NUT LOCK 3/8"-16 HEX

$0.99

$

In Stock, only 1 left!

0

101

Billy Goat 791080

SER HEX WSHR FLNG SCR .375" - 16 X .75"

$1.49

$

In Stock, only 1 left!

0

102

Billy Goat 8024040

BOLT CARRIAGE 5/16"-18 X 1" ZP

$0.99

$

In Stock, only 1 left!

0

103

Billy Goat 8171003

WASHER 5/16" FLAT ZP

$0.99

$

In Stock, Qty 10

0

104

Billy Goat 8024041

BOLT CARRIAGE 5/16"- 18 X 1 1/4" ZP

$0.99

$

In Stock, Qty 6

0

108

Billy Goat 8160001

NUT LOCK 1/4"-20 HEX ZP

$0.99

$

In Stock, Qty 8

0

110

Billy Goat 8177012

WASHER LOCK 3/8" S/T MED

$0.99

$

In Stock, Qty 9

0

112

Billy Goat 8041030

SCREWCAP 5/16"-18 X 1 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

113

Billy Goat 8161042

NUT LOCK 3/8"- 16 LT WT TH ZP

$0.99

$

In Stock, Qty 6

0

116

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX ZP

$0.99

$

In Stock, only 4 left!

0

117

Billy Goat 8172009

WASHER 3/8" SAE

$1.49

$

In Stock, Qty 5

0

121

Billy Goat 8041051

SCREWCAP 3/8"-16 1 1/4" HCS ZP

$0.99

$

In Stock, Qty 9

0

124

Billy Goat 9201109

KEY 1/4" SQ X 3/4"

$2.99

$

In Stock, only 2 left!

0
