BC 2600 EU - Billy Goat 26" Brush Cutter TRANS Parts Diagram

26" Brush Cutter

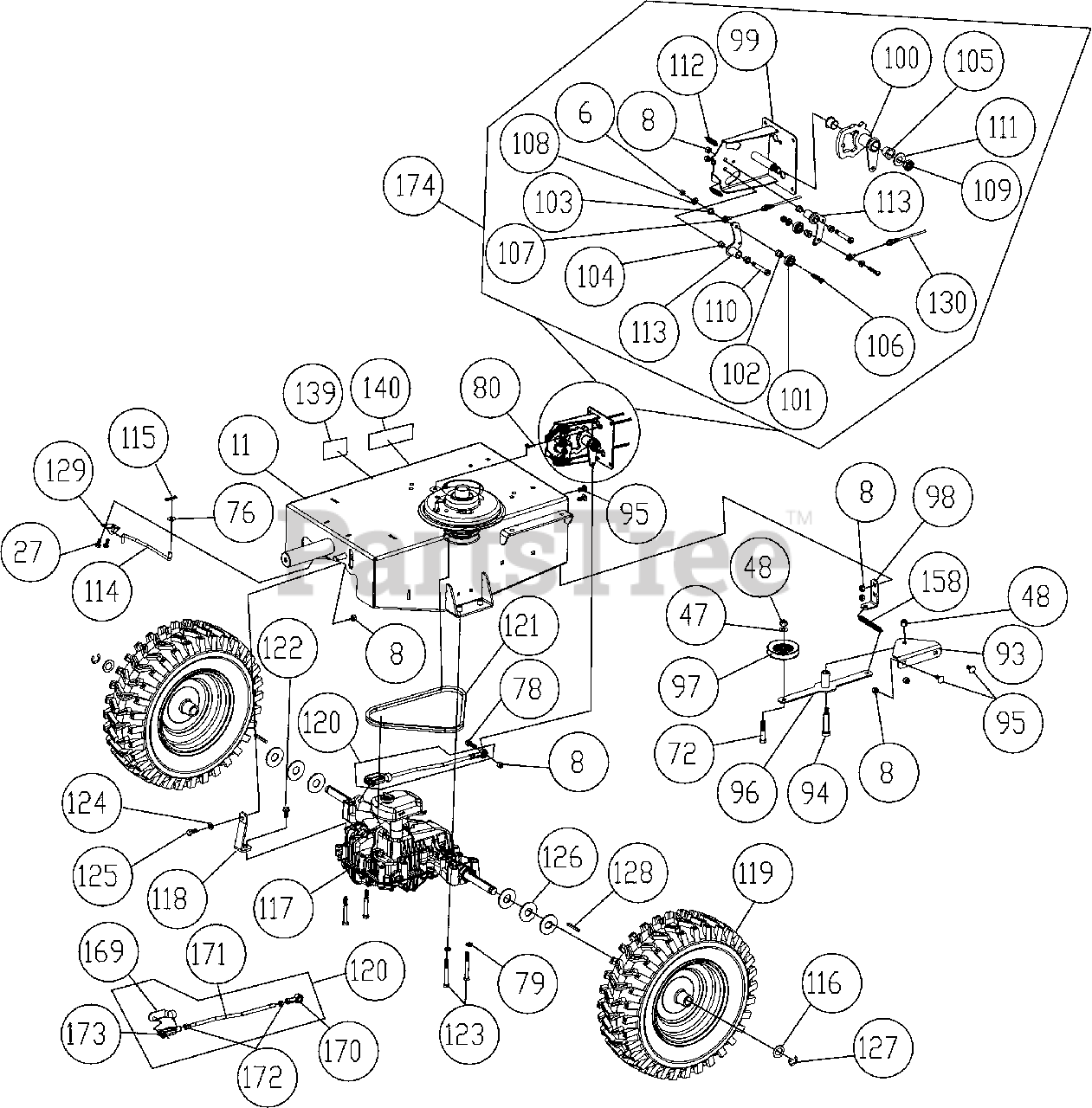

TRANS Parts Diagram

  • Title
6

Billy Goat 8160001

NUT LOCK 1/4”-20 HEX ZP

$0.99

$

In Stock, Qty 8

0

8

Billy Goat 8160002

NUT LOCK 5/16”-18

$0.99

$

In Stock, only 4 left!

0

11

Billy Goat 501603

ENGINE BASE WA W/LABELS

$757.99

$

Usually ships in 2-11 days

0

27

Billy Goat 890359

SCREW SELT TAP 1/4-20 X 5/8” HWH TYPE F

$1.49

$

Usually ships in 2-11 days

0

47

Billy Goat 8172009

WASHER 3/8” SAE

$1.49

$

In Stock, Qty 5

0

48

Billy Goat 8160003

NUT LOCK 3/8”-16 HEX

$0.99

$

In Stock, only 1 left!

0

72

Billy Goat 8041054

SCREWCAP 3/8”-16 X 2” HCS ZP

$0.99

$

In Stock, Qty 5

0

76

Billy Goat 8172007

WASHER 1/4” SAE

$0.99

$

In Stock, Qty 8

0

78

Billy Goat 8041028

SCREWCAP 5/16”-18 X 1” HCS ZP

$0.99

$

In Stock, Qty 7

0

79

Billy Goat 8177011

WASHER LOCK 5/16” S/T MED

$0.99

$

In Stock, Qty 9

0

80

Billy Goat 501279

CABLE CLUTCH

$37.99

$

Usually ships in 2-11 days

0

93

Billy Goat 501269

BRACKET IDLER ARM HYDRO BC26

$23.99

$

Usually ships in 2-11 days

0

94

Billy Goat 520031

BOLT SHOULDER 1/2” X 2”

$6.99

$

In Stock, only 1 left!

0

95

Billy Goat 9024039

BOLT CARRIAGE 5/16”-18 X 3/4” PLAIN

$

$

Currently unavailable

96

Billy Goat 501112

ARM IDLER DRIVE HYDRO BC26 WA

$27.99

$

Usually ships in 2-11 days

0

97

Billy Goat 501216

PULLEY INSIDE IDLER BC26

$43.99

$

In Stock, only 1 left!

0

98

Billy Goat 501297

BRACKET SPRING IDLER

$9.99

$

Usually ships in 2-11 days

0

99

Billy Goat 501105

BRACKET SPEED CONTROL BC26

$112.99

$

Usually ships in 2-11 days

0

100

Billy Goat 351110

PLATE CAM SPEED CONTROL BC26

$

$

Not available

101

Billy Goat 351257

BEARING 1/2” ID X 1.125” OD

$4.99

$

Usually ships in 2-11 days

0

102

Billy Goat 351255

SPACER STEPPED SPEED CONTROL HYDRO DR
(Superseded to 351347)

$3.99

$

Usually ships in 2-11 days

0

103

Billy Goat 351256

SPACER EYELET SPEED CONTROL
(Superseded to 351348)

$2.49

$

In Stock, only 1 left!

0

104

Billy Goat 840078

BUSHING 3/8” ID 1/2” OD X 3/8” LONG

$4.49

$

In Stock, only 2 left!

0

105

Billy Goat 360183

BUSHING PIVOT FRAME AE

$6.99

$

Usually ships in 2-11 days

0

106

Billy Goat 840199

SCREWCAP 1/4-20 X 1 3/4 SKT BUT HD

$1.99

$

In Stock, only 3 left!

0

107

Billy Goat 501276

CABLE SPEED CONTROL RT
(Superseded to 501276-S)

$52.99

$

In Stock, only 3 left!

0

108

Billy Goat 8172007

WASHER 1/4” SAE

$0.99

$

In Stock, Qty 8

0

109

Billy Goat 8161046

NUT LOCK 5/8”-11 LT WT TH ZP

$0.99

$

Usually ships in 2-11 days

0

110

Billy Goat 351258

BOLT SHOULDER 3/8” X 1 3/4”

$4.49

$

Usually ships in 2-11 days

0

111

Billy Goat 8172013

WASHER 5/8” FLAT

$0.99

$

Usually ships in 2-11 days

0

112

Billy Goat 800242

SPRING TENSION

$4.49

$

Usually ships in 2-11 days

0

113

Billy Goat 501114

BELLCRANK SPEED CONTROL BC26

$25.99

$

Usually ships in 2-11 days

0

114

Billy Goat 501265

ROD TRANS BYPASS BC26

$

$

Not available

115

Billy Goat 900471

HAIR PIN COTTER 1/4”

$1.49

$

In Stock, only 2 left!

0

116

Billy Goat 850238

WASHER .765 ID X 1.25” OD X .06

$1.49

$

In Stock, only 2 left!

0

117

Billy Goat 501218

TRANSAXLE TUFF TORQ BC26
(Superseded to 501354)

$1452.99

$

Usually ships in 2-11 days

0

118

Billy Goat 501267

BRACKET SUPPORT HYDRO TRANSAXLE

$12.99

$

Usually ships in 2-11 days

0

119

Billy Goat 501275

TIRE 16” AG SP

$277.99

$

Usually ships in 2-11 days

0

120

Billy Goat 501025

TRANS ROD ASSY
(Superseded to 501025-S)

$59.99

$

Usually ships in 2-11 days

0

121

Billy Goat 501268

BELT HYDRO TRANSAXLE BC26

$26.99

$

In Stock, only 1 left!

0

122

Billy Goat 8123128

SCREW SELF TAP 5/16” X 3/4” HEX

$1.49

$

In Stock, only 1 left!

0

123

Billy Goat 8041035

SCREWCAP 5/16”-18 X 2 3/4” HCS ZP

$0.99

$

Usually ships in 2-11 days

0

124

Billy Goat 8172008

WASHER 5/16” SAE

$0.99

$

In Stock, Qty 9

0

125

Billy Goat 8041026

SCREWCAP 5/16”-18 X 3/4” HCS ZP

$0.99

$

In Stock, only 1 left!

0

126

Billy Goat 8172015

WASHER 3/4” SAE

$0.99

$

In Stock, only 3 left!

0

127

Billy Goat 850230

RING RETAINING E 3/4”

$0.99

$

In Stock, only 3 left!

0

128

Billy Goat 9201087

KEY 3/16” SQ X 2 1/8”

$2.99

$

In Stock, only 2 left!

0

129

Billy Goat 501272

BRACKET BYPASS ROD

$8.99

$

Usually ships in 2-11 days

0

130

Billy Goat 351271

CABLE SPEED CONTROL LFT
(Superseded to 351271-S)

$52.99

$

In Stock, only 1 left!

0

139

Billy Goat 501504

LABEL DRIVE RELEASE

$6.49

$

Usually ships in 2-11 days

0

140

Billy Goat 500168

LABEL CHOCK WHEELS

$3.99

$

Usually ships in 2-11 days

0

158

Billy Goat 501261

SPRING IDLER BC

$11.99

$

In Stock, only 2 left!

0

169

Billy Goat 501262

SPRING PIN CONTROL ROD

$6.49

$

Usually ships in 2-11 days

0

170

Billy Goat 351278

SPHERICAL ROD END MSF-5

$12.99

$

Usually ships in 2-11 days

0

171

Billy Goat 501260

CONTROL ROD

$9.99

$

Usually ships in 2-11 days

0

172

Billy Goat 8143002

NUT JAM 5/16” NC

$0.99

$

Usually ships in 2-11 days

0

173

Billy Goat 501274

YOKE FEMALE STEEL 5/16” – 24 RH X 2.25”

$9.99

$

Usually ships in 2-11 days

0

174

Billy Goat 501607

KIT SPEED CONTROL NO CABLES BC26

$390.99

$

Usually ships in 2-11 days

0
