BC 2600 DL - RedMax Brushcutter (1999-07) 020 - TRIMMER GROUP Parts Diagram

Brushcutter

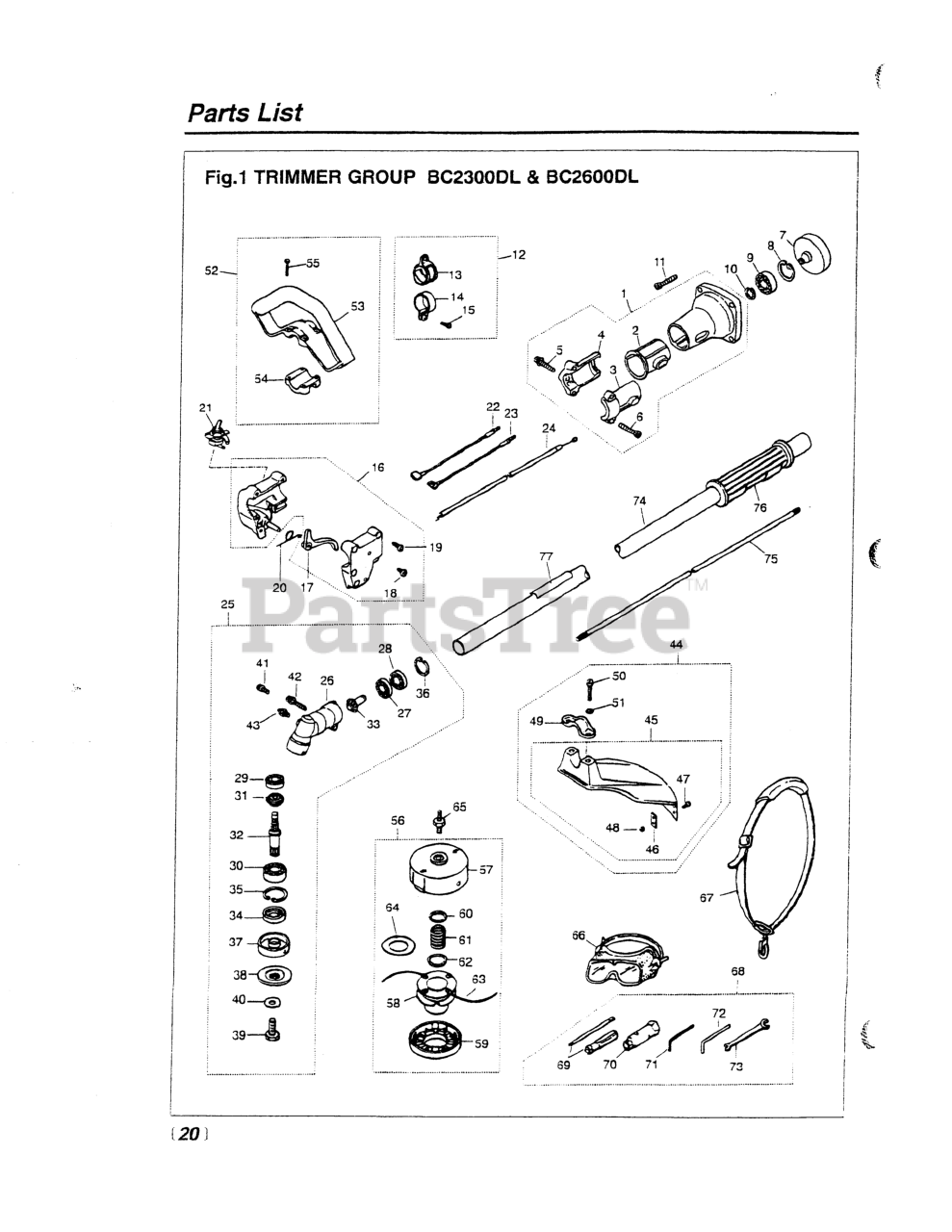

020 - TRIMMER GROUP Parts Diagram

  • Title
1

RedMax 646011002

6460-11004
(Superseded to 574086901)

$88.99

$

Usually ships in 3-10 days

0

2

RedMax 647031230

CUSHION
(Superseded to 515649601)

$10.99

$

In Stock, only 4 left!

0

3

RedMax 646031210

BRACKET (USE -31211)
(Superseded to 521472801)

$7.49

$

Usually ships in 3-10 days

0

4

RedMax 646031220

BRACKET (USE -31221)
(Superseded to 521472901)

$10.99

$

Usually ships in 3-10 days

0

5

RedMax 0125230514

BOLT (USE 3310-31720)
(Superseded to 520961501)

$4.99

$

In Stock, only 1 left!

0

6

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

7

RedMax 646012111

6460-12112
(Superseded to 515636801)

$43.99

$

Usually ships in 3-10 days

0

8

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

9

RedMax 0600406001

BEARING
(Superseded to 506610101)

$11.99

$

Usually ships in 3-10 days

0

10

RedMax 0406401210

RING, SNAP (RPLS 3130-13270)
(Superseded to 516124101)

$4.99

$

In Stock, only 3 left!

0

11

RedMax 646891150

BOLT, M6 x 20

$0.39

$

Usually ships in 3-10 days

0

12

RedMax 646017100

HANGER COMPLETE
(Superseded to 574087101)

$

$

Not available

13

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

14

RedMax 646017120

CLAMP
(Superseded to 515640201)

$

$

Not available

15

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$

$

Not available

16

RedMax 181124

181689

$

$

Not available

17

RedMax 180975

LEVER, THROTTLE
(Superseded to 574049001)

$

$

Not available

18

RedMax 145569

SET SCREW, ANTI-ROTATION
(Superseded to 574045201)

$

$

Not available

19

RedMax 180974

SCREW
(Superseded to 574048901)

$1.49

$

Usually ships in 3-10 days

0

20

RedMax 610314

SPRING, THROTTLE TRIGGER
(Superseded to 574065001)

$

$

Not available

21

RedMax 180252

SWITCH, STOP
(Superseded to 574047101)

$

$

Not available

22

RedMax 180768

CORD, RED (LEAD WIRE)
(Superseded to 574048001)

$4.99

$

Usually ships in 3-10 days

0

23

RedMax 180769

CORD, BLACK (LEAD WIRE)
(Superseded to 532180769)

$40.99

$

In Stock, only 1 left!

0

24

RedMax 650282100

CABLE COMP (RPLS 6460- )
(Superseded to 574087701)

$

$

Not available

25

RedMax 646013000

GEARCASE ASSEMBLY

$

$

Not available

26

RedMax 646013110

GEARCASE
(Superseded to 574017001)

$

$

Not available

27

RedMax 646013410

BEARING
(Superseded to 574018101)

$

$

Not available

28

RedMax 646013420

BEARING
(Superseded to 574018201)

$

$

Not available

29

RedMax 646013430

BEARING
(Superseded to 574018301)

$

$

Not available

30

RedMax 0600106001

BEARING
(Superseded to 516129901)

$7.99

$

In Stock, only 1 left!

0

31

RedMax 646013220

GEAR
(Superseded to 574017301)

$

$

Not available

32

$20.67

$

Usually ships in 3-10 days

0

33

RedMax 646013310

PINION
(Superseded to 574087001)

$29.99

$

Usually ships in 3-10 days

0

34

RedMax 646013140

SEAL, OIL
(Superseded to 574017101)

$

$

Not available

35

RedMax 646013340

RING, SNAP
(Superseded to 574017701)

$

$

Not available

36

RedMax 646013350

RING, SNAP

$0.63

$

Usually ships in 3-10 days

0

37

RedMax 646013240

HOLDER (A)

$

$

Not available

38

RedMax 646013250

HOLDER (B)

$

$

Not available

$

$

Not available

40

RedMax 646013370

WASHER
(Superseded to 574018001)

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 0125250512

BOLT, M5 x 12

$0.45

$

Usually ships in 3-10 days

0

42

RedMax 0125250525

BOLT, M5 X 25

$0.45

$

Usually ships in 3-10 days

0

43

RedMax 646013360

FITTING, GREASE
(Superseded to 574017901)

$3.99

$

Usually ships in 3-10 days

0

44

RedMax 646024000

GUARD ASSEMBLY

$

$

Not available

45

RedMax 646024100

6460-24000

$

$

Not available

46

RedMax 604124140

BLADE
(Superseded to 521404201)

$

$

Not available

47

RedMax 026330512

SCREW, M5 x 12
(Superseded to 510478301)

$3.99

$

Usually ships in 3-10 days

0

48

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, only 4 left!

0

49

RedMax 354124121

CLAMP
(Superseded to 514368601)

$6.49

$

Usually ships in 3-10 days

0

50

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

In Stock, only 2 left!

0

51

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

52

RedMax 646214100

HANDLE ASSEMBLY
(Superseded to 521473001)

$20.99

$

Usually ships in 3-10 days

0

53

RedMax 646214310

HANDLE
(Superseded to 515642801)

$

$

Not available

54

RedMax 646214320

CLAMP
(Superseded to 521473201)

$6.49

$

Usually ships in 3-10 days

0

55

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

56

RedMax PT104

4
(Superseded to 511010601)

$58.99

$

Usually ships in 3-10 days

0

57

RedMax 646015112

6460-15113
(Superseded to 515639101)

$28.99

$

Usually ships in 3-10 days

0

58

RedMax 646015141

6460-15142
(Superseded to 515639501)

$11.99

$

In Stock, only 1 left!

0

59

RedMax 646015131

COVER (RPLS -15130)
(Superseded to 515639401)

$11.99

$

Usually ships in 3-10 days

0

60

RedMax 326815150

PLATE, LARGE
(Superseded to 520939401)

$

$

Not available

61

RedMax 604199161

6041-99162
(Superseded to 515517001)

$9.99

$

Usually ships in 3-10 days

0

62

RedMax 326815170

PLATE, SMALL
(Superseded to 520939801)

$6.49

$

Usually ships in 3-10 days

0

63

RedMax 646015180

CORD
(Superseded to 521472601)

$

$

Not available

64

RedMax 646015210

SPACER
(Superseded to 521472701)

$

$

Not available

65

RedMax PTA008

ARBOR, 8MM
(Superseded to 515517601)

$6.49

$

Usually ships in 3-10 days

0

66

RedMax 180773

GOGGLE
(Superseded to 532180773)

$47.99

$

Usually ships in 3-10 days

0

67

RedMax 160197

SHOULDER STRAP ASSY
(Superseded to 574046801)

$

$

Not available

68

RedMax 355091000

TOOL SET

$15.97

$

Usually ships in 3-10 days

0

69

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

70

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

71

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

72

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

73

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

74

RedMax 180771BC

180931
(Superseded to 574048801)

$

$

Not available

75

RedMax 352012212

3520-12213

$

$

Not available

76

RedMax 180770

180866
(Superseded to 574048601)

$

$

Not available

77

RedMax 181127

LABEL, BC2300/2600DL
(Superseded to 574051101)

$1.49

$

Usually ships in 3-10 days

0
