BC 25H (5901093) - Ferris Walk-Behind Brush Mower, 13.5hp Handle Parts Group (S/N: 011903999 & Below (986129)) Parts Diagram

Walk-Behind Brush Mower, 13.5hp

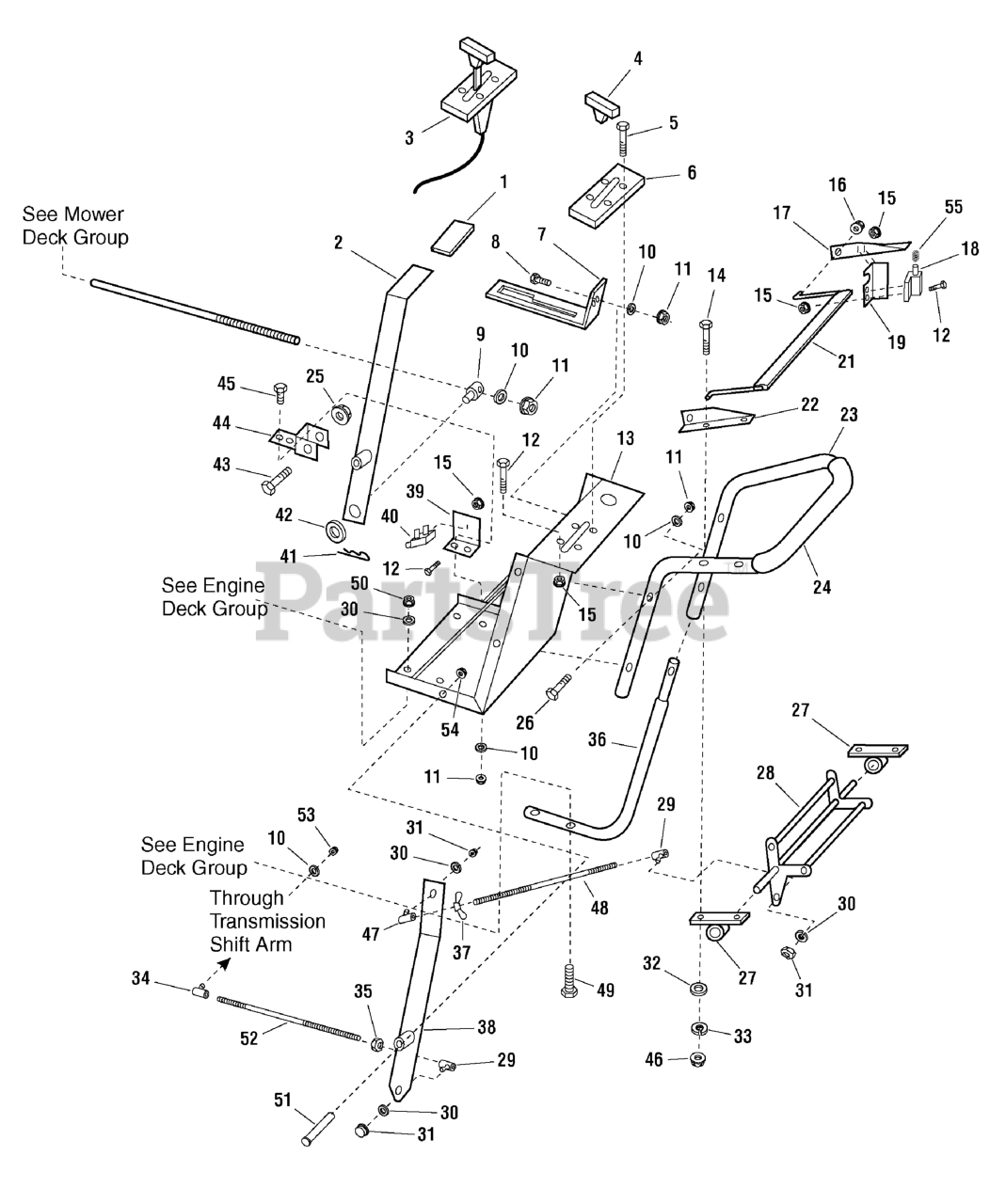

Handle Parts Group (S/N: 011903999 & Below (986129)) Parts Diagram

  • Title

1

Ferris 1719965

HANDLE GRIP
(Superseded to 1719965SM)

$5.49

$

Usually ships in 2-12 days

0

2

Ferris 1723595

Blade Clutch Engagement Lever
(Superseded to 1723595SM)

$

$

Not available

3

Ferris 1723686

Throttle Control Cable Assembly, 13 HP Honda
(Superseded to 1723686SM)

$22.99

$

Usually ships in 2-12 days

0

3

Ferris 1723625

Throttle Control Cable Assembly, 15 HP Kawasaki
(Superseded to 7027802SM)

$30.99

$

Usually ships in 2-12 days

0

3

Ferris 1723624

Throttle Control Cable Assembly, 9 HP Briggs
(Superseded to 1723624SM)

$31.99

$

Usually ships in 2-12 days

0

4

Ferris 1723626

Throttle Control, T-Handle
(Superseded to 7076833SM)

$2.99

$

Usually ships in 2-12 days

0

5

Ferris 1675044

Rivet, 3/16
(Superseded to 1675044SM)

$3.99

$

In Stock, only 1 left!

0

6

Ferris 1723623

Throttle Speed Indicator Plate
(Superseded to 1723623SM)

$2.99

$

Usually ships in 2-12 days

0

7

Ferris 1723550

Blade Engage Lever Lock Bracket
(Superseded to 1723550SM)

$23.99

$

Usually ships in 2-12 days

0

8

Ferris 1921332

BOLT, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

9

Ferris 1723598

Rod, Fitting End
(Superseded to 1723598SM)

$12.99

$

Usually ships in 2-12 days

0

10

Ferris 1917356

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Ferris 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Ferris 1960600

Screw, 8-32 x 3/4
(Superseded to 1960600SM)

$4.99

$

Usually ships in 2-12 days

0

13

Ferris 1723553

Control Deck & Dash Panel

$

$

Currently unavailable

14

Ferris 1921962

BOLT, 1/4-20 x 1-3/4
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

15

Ferris 1960222

NUT Assembly, 8-32
(Superseded to 1960222SM)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 1932718

Push Nut, 5/16

$

$

Not available

17

Ferris 1723562

Safety Bar Pivot Bracket, Left
(Superseded to 1723562SM)

$13.99

$

Usually ships in 2-12 days

0

18

Ferris 1723563

Safety Switch
(Superseded to 7027225YP)

$

$

Not available

19

Ferris 1723565

Safety Switch Mounting Bracket
(Superseded to 1723565SM)

$23.99

$

Usually ships in 2-12 days

0

20

Machine Screw Assembly, 8-32 x 1/2

$

$

Not available

21

Ferris 1723561

Safety Bar
(Superseded to 1723561SM)

$61.99

$

Usually ships in 2-12 days

0

22

Ferris 1723566

Safety Bar Pivot Bracket, Right
(Superseded to 1723566SM)

$12.99

$

Usually ships in 2-12 days

0

23

Ferris 1723572

Upper Handle

$

$

Not available

24

Ferris 1723568

Foam Handle Cover
(Superseded to 1723568SM)

$11.99

$

Usually ships in 2-12 days

0

25

Ferris 1930644

NUT, Hex Flangelock, 1/2-13
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

26

Ferris 1921221

BOLT, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

27

Ferris 1723570

Bearing, 3/4 ID
(Superseded to 1723570SM)

$

$

Not available

28

Ferris 1723571

Drive Engagement Bar
(Superseded to 1725232SM)

$108.99

$

Usually ships in 2-12 days

0

29

Ferris 1723557

Ball Joint, 3/8-24, LH
(Superseded to 1723557SM)

$12.99

$

Usually ships in 2-12 days

0

30

Ferris 1916965

Lockwasher, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

31

Ferris 1918403

NUT, Jam, 3/8-24
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

32

Ferris 1921319

Flatwasher, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Ferris 1916964

Lockwasher, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

34

Ferris 1723554

Ball Joint, 5/16-24
(Superseded to 1723554SM)

$16.99

$

Usually ships in 2-12 days

0

35

Ferris 1723556

NUT, Hex Jam, 3/8-24, LH
(Superseded to 1723556SM)

$

$

Not available

36

Ferris 1723569

Lower Handle
(Superseded to 1723569SM)

$51.99

$

Usually ships in 2-12 days

0

37

Ferris 1723559

NUT, Wing, 3/8-24
(Superseded to 1723559SM)

$7.49

$

Usually ships in 2-12 days

0

38

Ferris 1723573

Transmission Drive Intermediate Lever
(Superseded to 7059204YP)

$125.99

$

Usually ships in 2-12 days

0

39

Ferris 1723551

Deck Safety Switch Bracket
(Superseded to 1723551SM)

$15.99

$

Usually ships in 2-12 days

0

40

Ferris 1723552

Deck Safety Switch
(Superseded to 1723552SM)

$

$

Not available

41

Ferris 1723597

Bridge Pin, #2
(Superseded to 1723597SM)

$2.99

$

Usually ships in 2-12 days

0

42

Ferris 1924940

Flatwasher, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

43

Ferris 1960462

BOLT, 1/2 x 2-1/2
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

44

Ferris 1723596

Blade Clutch Engagement Lever Bracket
(Superseded to 1723596SM)

$17.99

$

Usually ships in 2-12 days

0

45

Ferris 1921333

BOLT, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

46

Ferris 1916622

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

47

Ferris 1723558

Ball Joint, 3/8-24 RH
(Superseded to 1723558SM)

$16.99

$

Usually ships in 2-12 days

0

48

Ferris 1723560

Transmission Engagement Rod, Upper
(Superseded to 1725231SM)

$42.99

$

Usually ships in 2-12 days

0

49

Ferris 1922127

BOLT, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

50

Ferris 1916950

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

51

Ferris 1723662

Bolt, Shoulder, 1/2 x 1 -3/8 to 3/8-16
(Superseded to 1723662SM)

$3.99

$

Usually ships in 2-12 days

0

52

Ferris 1723555

Transmission Engagement Rod, Lower
(Superseded to 1723555SM)

$16.99

$

Usually ships in 2-12 days

0

53

Ferris 2820438

NUT, Hex Jam, 5/16-24
(Superseded to 2820438SM)

$3.49

$

In Stock, only 2 left!

0

54

Ferris 1960339

NUT, Hex Centerlock, 3/8-16
(Superseded to 1922694SM)

$6.99

$

In Stock, Qty 20+

0

55

Ferris 1723564

Safety switch return spring
(Superseded to 1723564SM)

$9.99

$

Usually ships in 2-12 days

0
