BC 25BE (5901092) - Ferris Walk-Behind Brush Mower, 13hp Engine Deck Group (S/N: 011903999 & Below (986126)) Parts Diagram

Walk-Behind Brush Mower, 13hp

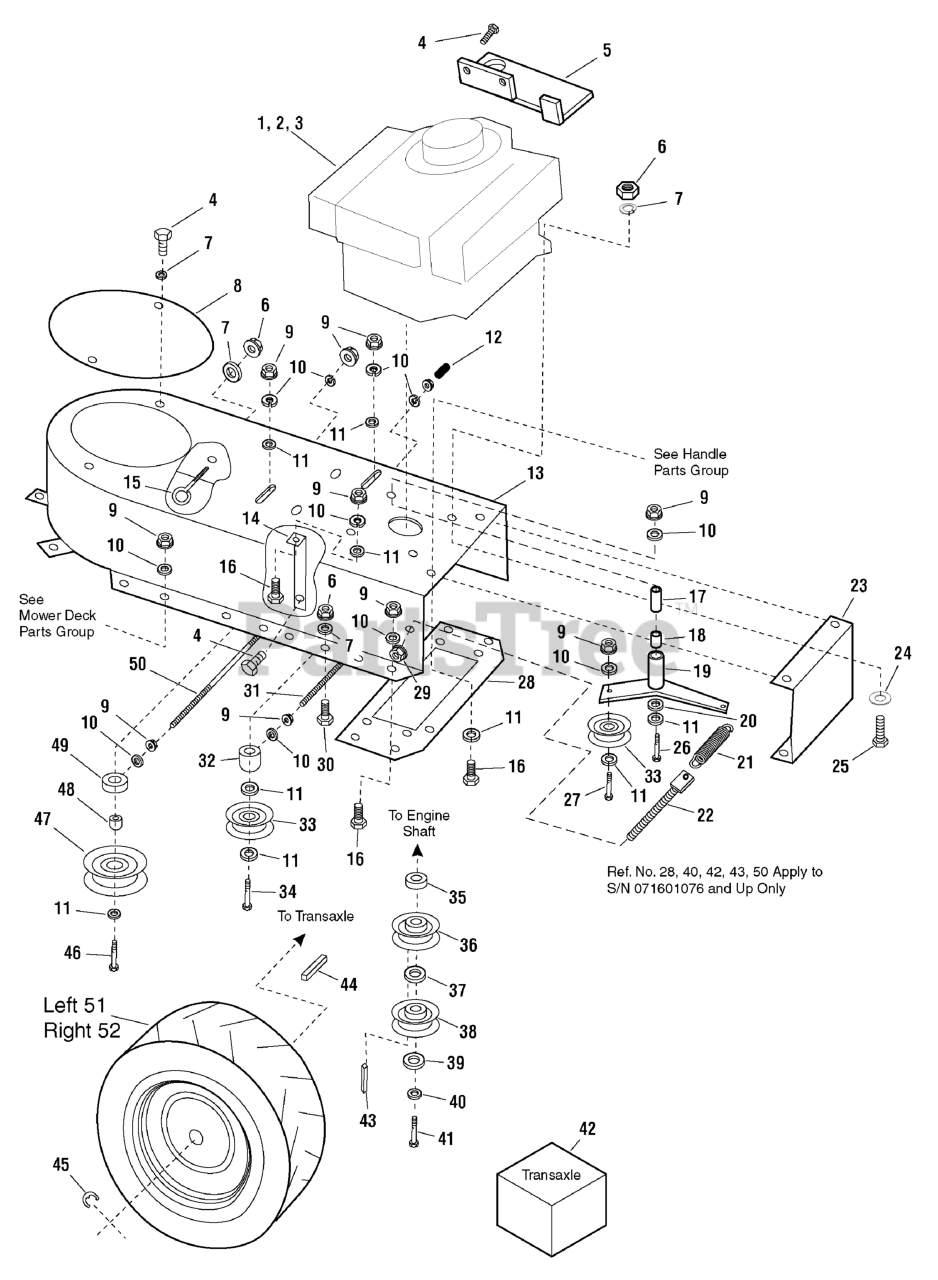

Engine Deck Group (S/N: 011903999 & Below (986126)) Parts Diagram

  • Title

42

Ferris 5022724X1

FAN

$

$

Not available

1

ENGINE, 13.5HP Briggs & Stratton

$

$

Not available

2

ENGINE, 13HP Honda

$

$

Not available

3

ENGINE, 15HP Kawasaki

$

$

Not available

4

Ferris 1921332

BOLT, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

5

Ferris 1723616

Auxiliary fuel tank base
(Superseded to 1723616SM)

$59.99

$

Usually ships in 2-12 days

0

6

Ferris 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Ferris 1917356

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 1723549

Clutch Cover Plate
(Superseded to 1723549SM)

$32.99

$

Usually ships in 2-12 days

0

9

Ferris 1916950

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

10

Ferris 1916965

Lockwasher, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

11

Ferris 1924940

Flatwasher, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 1704723

Cap, Black
(Superseded to 1704723SM)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 1723593

Engine Deck
(Superseded to 1723593SM)

Note: (S/N: 071601075 & below)

$

$

Not available

13

Ferris 1723803

Engine Deck
(Superseded to 1723803SM)

Note: (S/N: 071601076 & above)

$

$

Not available

14

Ferris 1723575

Transmission Forward Mounting Hanger
(Superseded to 1723575SM)

$18.99

$

Usually ships in 2-12 days

0

15

Ferris 1723574

EYE BOLT, 5/16-18x3-1/4
(Superseded to 1723574SM)

$5.49

$

Usually ships in 2-12 days

0

16

Ferris 1921210

BOLT, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

17

Ferris 1723806

Idler Arm Pivot Boss
(Superseded to 1723806SM)

$70.99

$

Usually ships in 2-12 days

0

18

Ferris 1723805

Sleeve Bushing, 3/4 ID
(Superseded to 1723805SM)

$12.99

$

In Stock, only 2 left!

0

19

Ferris 1723804

Transmission Idler Arm
(Superseded to 1723804SM)

$

$

Not available

20

Ferris 1960170

Flatwasher, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

21

Ferris 1723807

Idler Spring
(Superseded to 1723807SM)

$10.99

$

Usually ships in 2-12 days

0

22

Ferris 1723808

Idler Tension Rod

$

$

Currently unavailable

23

Ferris 1723592

Engine deck back cover
(Superseded to 1723592SM)

$38.99

$

Usually ships in 2-12 days

0

24

Ferris 1918265

Flatwasher, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

25

Ferris 1921221

BOLT, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

26

Ferris 1922918

CAPSCREW, 3/8-16 x 3-1/4

$

$

Not available

27

Ferris 1922606

BOLT, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

28

Ferris 1723591

Lower handle mounting plate
(Superseded to 1723591SM)

$142.99

$

Usually ships in 2-12 days

0

29

Ferris 1922694

NUT, Reverse Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

30

Ferris 1921160

CAPSCREW, 5/16-18 x 2-1/4
(Superseded to 1921160SM)

$4.99

$

Usually ships in 2-12 days

0

31

Ferris 1723594

Trans belt idler tensioning rod

$2.99

$

Usually ships in 2-12 days

0

32

Ferris 1723582

Transmission Idler Boss
(Superseded to 1723582SM)

$25.99

$

Usually ships in 2-12 days

0

33

Ferris 1723583

Idler Pulley
(Superseded to 1723583SM)

$23.99

$

Usually ships in 2-12 days

0

34

Ferris 1922648

BOLT, 3/8-16 x 4
(Superseded to 7079832YP)

$3.99

$

Usually ships in 2-12 days

0

35

Ferris 1723585

Engine Shaft Spacer, 1"
(Superseded to 1723585SM)

$11.99

$

Usually ships in 2-12 days

0

36

Ferris 1723586

Blade Clutch Drive Pulley
(Superseded to 1723586SM)

$37.99

$

Usually ships in 2-12 days

0

37

Ferris 1723587

Engine Shaft Spacer - 1/4"
(Superseded to 1723587SM)

$26.99

$

Usually ships in 2-12 days

0

38

Ferris 1723588

Transmission Drive Pulley
(Superseded to 1723588SM)

$39.99

$

Usually ships in 2-12 days

0

39

Ferris 1723640

Flatwasher Heavy Duty, 7/16
(Superseded to 7091807SM)

$2.99

$

Usually ships in 2-12 days

0

40

Ferris 1918199

Lockwasher, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

41

Ferris 1723589

CAPSCREW, Socket Head, 7/16-20 x 1-1/2
(Superseded to 1723589SM)

$

$

Not available

42

Ferris 1723620

Transaxle
(Superseded to 1723620SM)

$883.99

$

Usually ships in 2-12 days

0

43

Ferris 1723590

Key, Engine Shaft, 1/4 x 1/4 x 2-1/8

$

$

Currently unavailable

44

Ferris 1723584

Key, Axle Shaft 3/16 x 3/16 x 1-3/8
(Superseded to 7072386YP)

$5.49

$

In Stock, only 1 left!

0

45

Ferris 2827794

E clip
(Superseded to 2827794SM)

$3.49

$

In Stock, Qty 16

0

46

Ferris 1921973

BOLT, 3/8-16 x 3-1/4
(Superseded to 1921973SM)

$5.49

$

Usually ships in 2-12 days

0

47

Ferris 1723579

Blade clutch idler pulley
(Superseded to 1723579SM)

$

$

Not available

48

Ferris 1723578

Idler pulley spacer bushing
(Superseded to 1723578SM)

$12.99

$

Usually ships in 2-12 days

0

49

Ferris 1723577

Blade Clutch Idler Boss
(Superseded to 1723577SM)

$26.99

$

Usually ships in 2-12 days

0

50

Ferris 1723576

Blade Clutch Idler Tensioning Rod
(Superseded to 1723576SM)

$4.99

$

Usually ships in 2-12 days

0

51

Ferris 1723580

Drive Wheel, Left
(Superseded to 1723580SM)

$85.99

$

Usually ships in 2-12 days

0

52

Ferris 1723581

Drive Wheel, Right
(Superseded to 1723581SM)

Note: (Not Shown)

$75.99

$

Usually ships in 2-12 days

0
