BC 2500 LE - Weed Eater Brushcutter, Type 2 Handle & Driveshaft Assembly Type 1-3 Parts Diagram

Brushcutter, Type 2

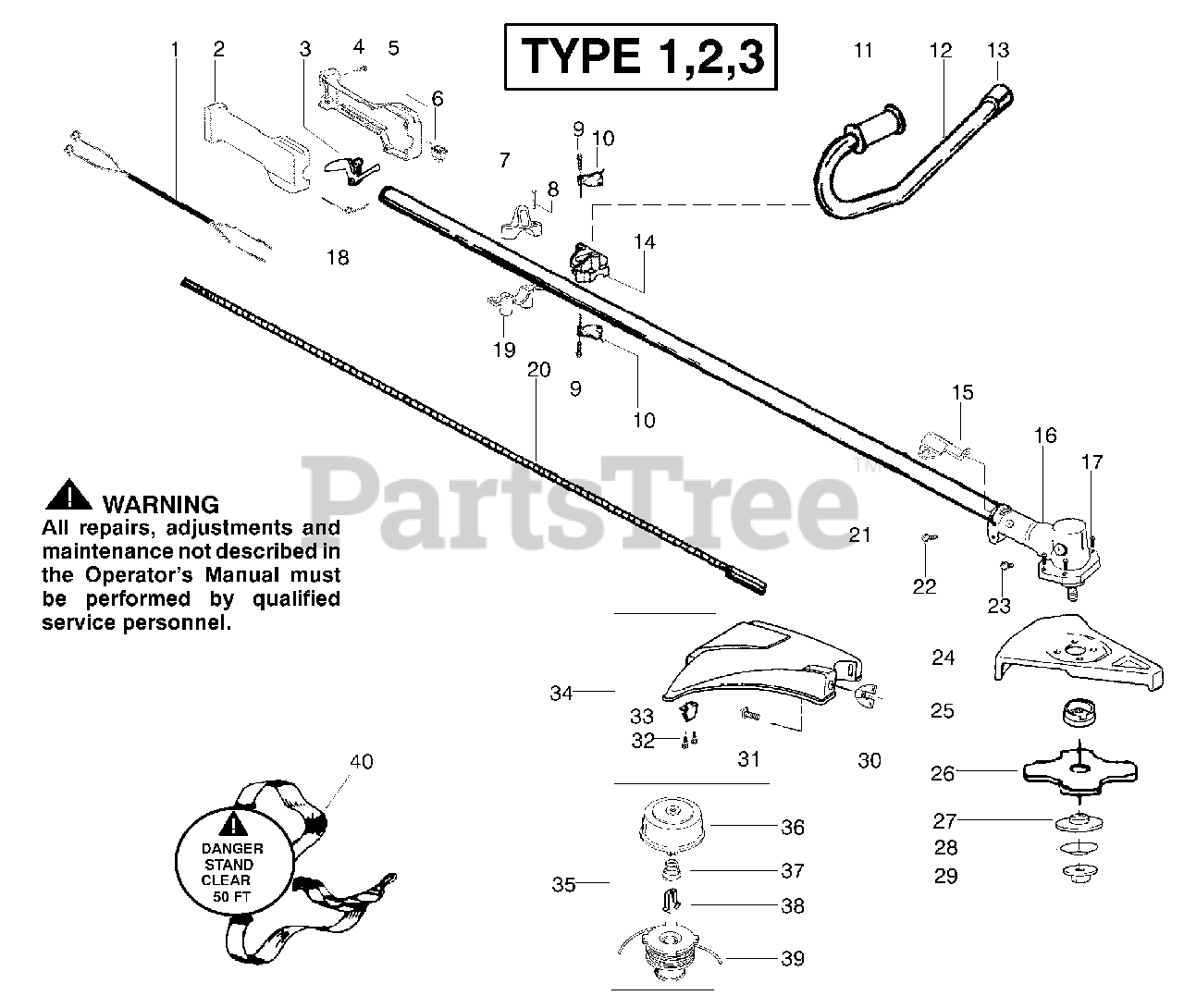

Handle & Driveshaft Assembly Type 1-3 Parts Diagram

  • Title

1

Poulan 530047307

Assy--Leadwire

$9.99

$

Usually ships in 3-10 days

0

2

Poulan 530053968

Hsg.--Throttle Right

$

$

Not available

3

Poulan 530056334

Lever--Throttle

$

$

Not available

4

Poulan 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

5

Poulan 530053969

Hsg.--Throttle Left

$

$

Not available

6

Poulan 530069572

Kit--On/Off Switch

$9.49

$

In Stock, only 3 left!

0

7

Poulan 530055392

Clamp--Upper
(Superseded to 530071605)

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530015770

Screw

$

$

Not available

9

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530094572

Bracket--Handlebar

$3.99

$

In Stock, only 1 left!

0

11

Poulan 530092086

Grip--Handlebar

$

$

Not available

12

Poulan 530056300

Kit--Handlebar Assy. w/decal

$16.99

$

Usually ships in 3-10 days

0

13

Poulan 530092192

End Cap--Handlebar

$0.99

$

Usually ships in 3-10 days

0

14

Poulan 530012207

Clamp--Handlebar

$

$

Not available

15

Poulan 530095812

Bracket--Shield

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 530071585

Kit--Gear Box Ass'y.

$

$

Not available

17

Poulan 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

18

Poulan 530027597

Spring--lever return

$3.99

$

In Stock, only 4 left!

0

19

Poulan 530055394

Clamp--Lower

$

$

Not available

20

Poulan 530094585

Shaft--Flex

$

$

Not available

21

Poulan 530071338

Kit--Drive Shaft Assy

$37.99

$

Usually ships in 3-10 days

0

22

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

23

Poulan 530016301

Screw

$6.49

$

In Stock, only 4 left!

0

24

Poulan 530071383

Kit--Metal Shield

$14.99

$

Usually ships in 3-10 days

0

25

Poulan 530095815

Dust Cup

$11.99

$

In Stock, Qty 6

0

26

Poulan 952701611

Accy--4 Point Blade
(Superseded to 952711585)

$

$

Not available

27

Poulan 530095816

Washer

$10.99

$

In Stock, Qty 5

0

28

Poulan 530016240

Washer--Belleville

$6.49

$

In Stock, only 1 left!

0

29

Poulan 530015793

Nut--Flange

$6.49

$

In Stock, Qty 6

0

30

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

31

Poulan 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

32

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

33

Poulan 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530069779

Kit--Shield Ass'y.

Note: (Incl. 30--33)

$

$

Not available

35

Poulan 952711550

Accy--Cutting Head

Note: (Incl. 36--39)

$

$

Not available

36

Poulan 530095772

Assy--Hub

$

$

Not available

37

Poulan 530053241

Spring--Return

$

$

Not available

38

Poulan 530401957

Retainer--Spool

$4.99

$

In Stock, only 4 left!

0

39

Poulan 952711551

Accy--Spool w/Line

$

$

Not available

40

Poulan 530094417

Assy--Shoulder Strap

$

$

Not available

Poulan 530163351

Manual--Operator

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

Poulan 530056335

Decal--Blade Direction

Note: Not Shown

$2.23

$

Usually ships in 3-10 days

0

Poulan 530031159

Hex Wrench (5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Poulan 530031098

Hex Wrench (3/16)

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530027778

Decal--H'bar Warning

Note: Not Shown

$

$

Not available

Poulan 530055349

Decal--Shaft Warning

Note: Not Shown

$

$

Not available
