BC 2403 HEB - Billy Goat 24" Brush Cutter HANDLE Parts Diagram

24" Brush Cutter

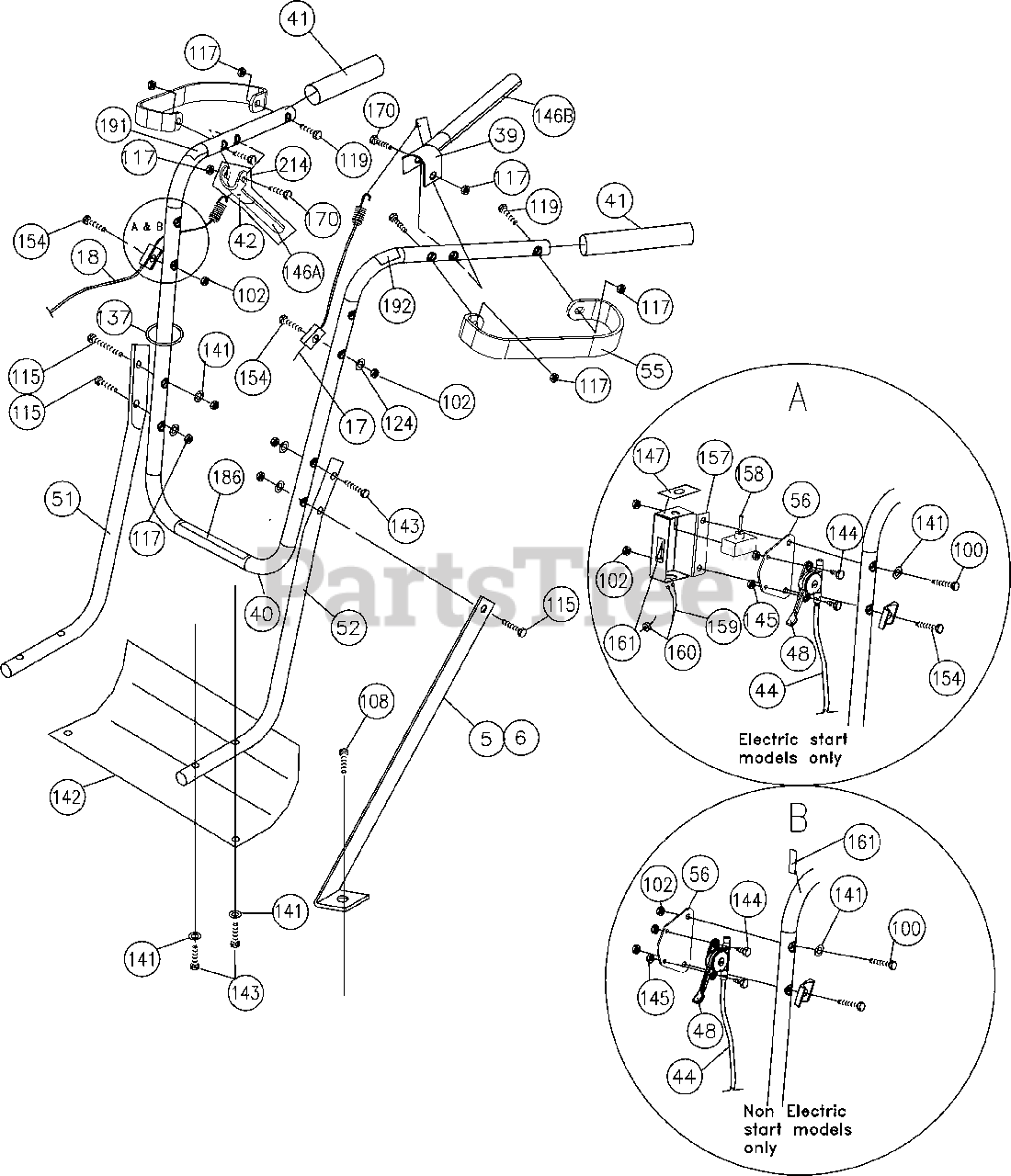

HANDLE Parts Diagram

  • Title

5

Billy Goat 500196

Handle Brace Left

$28.99

$

Usually ships in 2-11 days

0

6

Billy Goat 500200

Handle Brace Right

$28.99

$

In Stock, only 1 left!

0

17

Billy Goat 500259

Cable Clutch Blade BC2402

$29.99

$

In Stock, only 1 left!

0

18

Billy Goat 500410

Cable Clutch Drive BC2402

$

$

Currently unavailable

39

Billy Goat 500312

Lever Control Blade
(Superseded to 500312-S)

$69.99

$

Usually ships in 2-11 days

0

40

Billy Goat 500383

Handle Upper BC2403

$

$

Currently unavailable

41

Billy Goat 500267

Grip Handle 1” ID x 7.5”

$6.99

$

In Stock, only 2 left!

0

42

Billy Goat 500406

Lever Control Clutch
(Superseded to 500406-S)

$100.99

$

Usually ships in 2-11 days

0

44

Billy Goat 440178

Cable Throttle Control 36.0”

$31.99

$

In Stock, only 2 left!

0

48

Billy Goat 440013

Control Throttle

$40.99

$

In Stock, Qty 11

0

51

Billy Goat 500141

Handle Lower RH BC2402

$80.99

$

Usually ships in 2-11 days

0

52

Billy Goat 500140

Handle Lower LH BC2402

$82.99

$

Usually ships in 2-11 days

0

55

Billy Goat 500339

Guard Hand BC2402

$

$

Currently unavailable

56

Billy Goat 500385

Throttle Plate BC2403

$13.99

$

Usually ships in 2-11 days

0

100

Billy Goat 8041007

Screw cap ¼-20 x 1 1/4

$0.99

$

In Stock, only 1 left!

0

102

Billy Goat 8160001

Nut Lock 1/4-20

$0.99

$

In Stock, Qty 8

0

108

Billy Goat 8041035

Screw Cap 5/16-18 x 2-3/4”

$0.99

$

Usually ships in 2-11 days

0

115

Billy Goat 8041032

Screw Cap 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

117

Billy Goat 8160002

Nut Lock 5/16-18

$0.99

$

In Stock, only 4 left!

0

119

Billy Goat 8041030

Screw Cap 5/16-18 x 1-1/2”

$0.99

$

Usually ships in 2-11 days

0

124

Billy Goat 8171002

Washer 1/4” FC

$0.99

$

In Stock, Qty 10

0

137

Billy Goat 900407

Ty Wrap

$0.99

$

In Stock, only 2 left!

0

141

Billy Goat 8171003

Washer 5/16” FC

$0.99

$

In Stock, Qty 10

0

142

Billy Goat 500321

Bracket Clutch Cable Guard

$37.99

$

Usually ships in 2-11 days

0

143

Billy Goat 8041031

Screw Cap 5/16-18 x 1-3/4”

$0.99

$

In Stock, only 3 left!

0

144

Billy Goat 830514

Screw Mach Flat HD Phil #10-24

$0.99

$

In Stock, only 2 left!

0

145

Billy Goat 8164005

Nut Lock LT #10-24

$0.99

$

In Stock, only 4 left!

0

146A

Billy Goat 500378

Grip Lever Yellow

$4.99

$

Usually ships in 2-11 days

0

146B

Billy Goat 500379

Grip Lever Orange

$4.99

$

In Stock, only 1 left!

0

147

Billy Goat 500329

Label Start/Stop Toggle

$4.49

$

Usually ships in 2-11 days

0

154

Billy Goat 8041009

Screw Cap 1/4-20 x 1 3/4”

$0.99

$

In Stock, only 2 left!

0

157

Billy Goat 500384

Switch box BC2403

$24.99

$

Usually ships in 2-11 days

0

158

Billy Goat 500307

Switch Toggle, ON/OFF

$54.99

$

Usually ships in 2-11 days

0

159

Billy Goat 500306

Harness Assy

$32.99

$

Usually ships in 2-11 days

0

160

Billy Goat 500282

Bushing Strain Relief

$2.99

$

In Stock, only 2 left!

0

161

Billy Goat 810656

Label Throttle

$3.99

$

Usually ships in 2-11 days

0

170

Billy Goat 501313

Bolt Shoulder 3/8-16 x 1-1/2”

$3.99

$

In Stock, only 1 left!

0

186

Billy Goat 500349

Label Shift BC2402

$16.99

$

In Stock, only 2 left!

0

191

Billy Goat 500176

Label Clutch Drive

$3.99

$

Usually ships in 2-11 days

0

192

Billy Goat 500177

Label Clutch Blade

$3.99

$

Usually ships in 2-11 days

0
