BC 2402 H - Billy Goat 24" Brush Cutter Spindle Parts Diagram

24" Brush Cutter

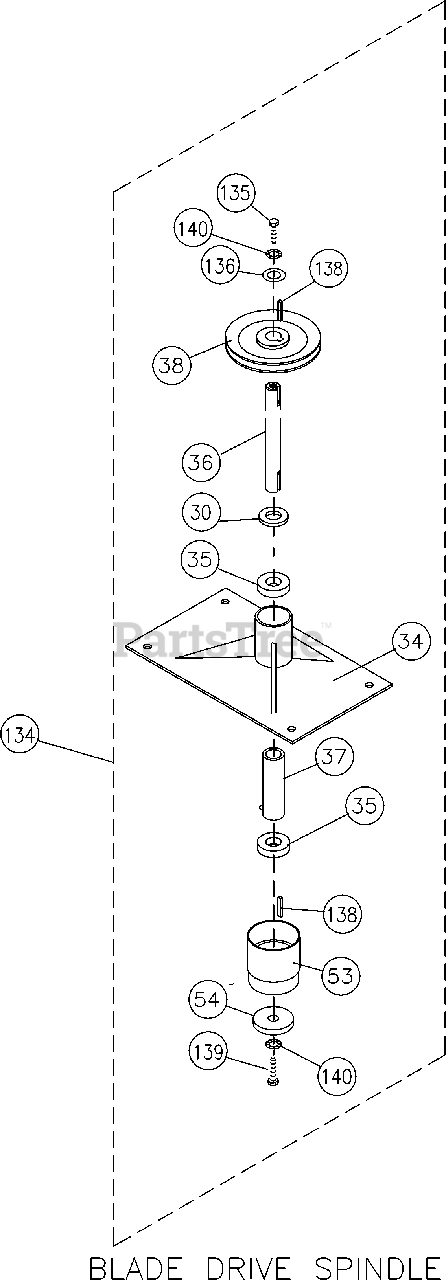

Spindle Parts Diagram

  • Title
134

Billy Goat 500242

Spindle Assembly Complete
(Superseded to 500242-S)

$956.99

$

Usually ships in 2-11 days

0

30

Billy Goat 500232

Spacer Spindle BC2402

$28.99

$

In Stock, only 1 left!

0

34

Billy Goat 500174

Spindle WA BC2402

$274.99

$

Usually ships in 2-11 days

0

35

Billy Goat 500101

Bearing 7/8" ID Sealed Press

$25.99

$

Usually ships in 2-11 days

0

36

Billy Goat 500107

Shaft Drive Blade

$114.99

$

In Stock, only 1 left!

0

37

Billy Goat 500115

Spacer Spindle Bearing

$14.99

$

Usually ships in 2-11 days

0

38

Billy Goat 500253

Pulley 7" OD x 7/8" Bore

$99.99

$

Usually ships in 2-11 days

0

53

Billy Goat 500191

Adapter Blade WA

$259.99

$

Usually ships in 2-11 days

0

54

Billy Goat 500108

Washer Friction Blade

$56.99

$

In Stock, Qty 7

0

135

Billy Goat 800554

Screw Cap 7/16-20 x 1-1/4” GR8

$

$

Not available

136

Billy Goat 350153

Washer 7/8 SAE

$2.99

$

Usually ships in 2-11 days

0

138

Billy Goat 9201072

Key Sq 3/16 x 5/8”

$2.99

$

In Stock, only 2 left!

0

139

Billy Goat 500188

Screw Cap 7/16-20 x 2” GR8

$3.49

$

Usually ships in 2-11 days

0

140

Billy Goat 850132

Washer Lock 7/16”

$

$

Not available
