BC 2402 H - Billy Goat 24" Brush Cutter Deck Parts Diagram

24" Brush Cutter

Deck Parts Diagram

  • Title
1

Billy Goat 500239

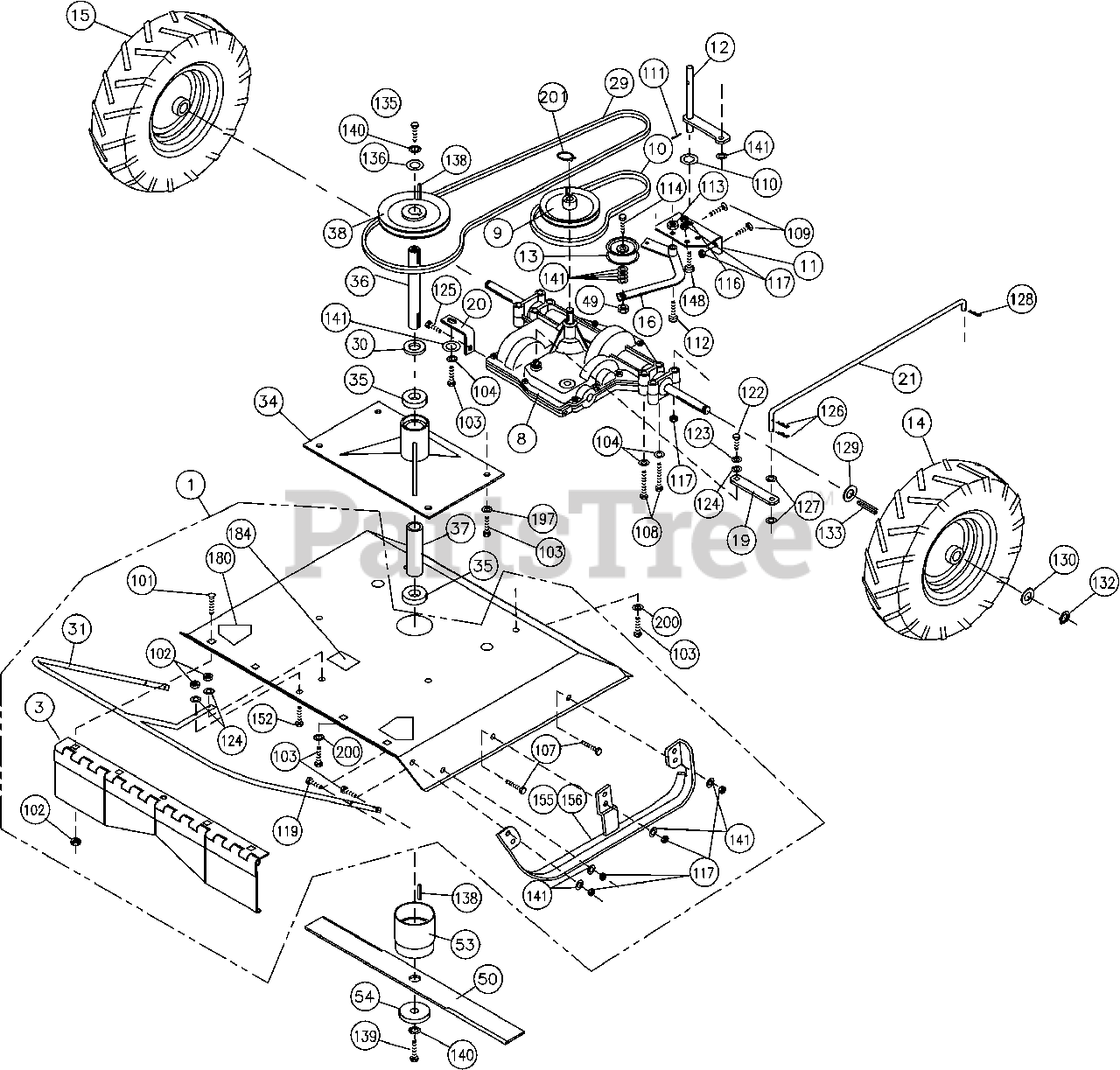

Deck Assembly with Labels
(Superseded to 500407)

$680.99

$

Usually ships in 2-11 days

0

3

Billy Goat 500125

Deflector Front BC2402

$121.99

$

Usually ships in 2-11 days

0

8

Billy Goat 500342

Transaxle 3 SPD BC2402
(Superseded to 500342-S)

$1200.99

$

Usually ships in 2-11 days

0

9

Billy Goat 830180

Pulley 5.0" OD ‘A’ Section
(Superseded to 830180-S)

$82.99

$

Usually ships in 2-11 days

0

10

Billy Goat 500119

Belt Traction Drive

$44.99

$

In Stock, only 1 left!

0

11

Billy Goat 500122

Plate Pivot Idler/Shifter

$20.99

$

In Stock, only 1 left!

0

12

Billy Goat 500169

Shifter Pivot WA
(Superseded to 500368)

$82.99

$

Usually ships in 2-11 days

0

13

Billy Goat 800260

Pulley Idler
(Superseded to 5108777)

$105.99

$

Usually ships in 2-11 days

0

14

Billy Goat 500343

Wheel & Tire 16" SP LH
(Superseded to 500344-S)

$264.99

$

Usually ships in 2-11 days

0

15

Billy Goat 500344

Wheel & Tire 16" SP RH

$

$

Not available

16

Billy Goat 500170

Arm Idler WA

$79.99

$

Usually ships in 2-11 days

0

19

Billy Goat 500121

Bar Shift T-axle

$9.99

$

Usually ships in 2-11 days

0

20

Billy Goat 500127

Angle Support T-axle

$17.99

$

Usually ships in 2-11 days

0

21

Billy Goat 500144

Rod Link Shifter
(Superseded to 500144-S)

$45.99

$

Usually ships in 2-11 days

0

29

Billy Goat 500237

Belt Blade Drive

$98.99

$

In Stock, only 1 left!

0

30

Billy Goat 500232

Spacer Spindle BC2402

$28.99

$

In Stock, only 1 left!

0

31

Billy Goat 500235

Bar Guard WA BC2402

$

$

Not available

34

Billy Goat 500174

Spindle WA BC2402

$274.99

$

Usually ships in 2-11 days

0

35

Billy Goat 500101

Bearing 7/8" ID Sealed Press

$25.99

$

Usually ships in 2-11 days

0

36

Billy Goat 500107

Shaft Drive Blade

$114.99

$

In Stock, only 1 left!

0

37

Billy Goat 500115

Spacer Spindle Bearing

$14.99

$

Usually ships in 2-11 days

0

38

Billy Goat 500253

Pulley 7" OD x 7/8" Bore

$99.99

$

Usually ships in 2-11 days

0

49

Billy Goat 8161042

Nut Lock 3/8-16 Thin

$0.99

$

In Stock, Qty 7

0

50

Billy Goat 500210

Blade 24" BC2402
(Superseded to 500210-S)

$56.99

$

Usually ships in 2-11 days

0

53

Billy Goat 500191

Adapter Blade WA

$259.99

$

Usually ships in 2-11 days

0

54

Billy Goat 500108

Washer Friction Blade

$56.99

$

In Stock, Qty 7

0

101

Billy Goat 8024021

Bolt Carriage 1/4-20 x 3/4”

$0.99

$

Usually ships in 2-11 days

0

102

Billy Goat 8160001

Nut Lock 1/4-20

$0.99

$

In Stock, Qty 8

0

103

Billy Goat 8041029

Screw Cap 5/16-18 x 1-1/4”

$0.99

$

Usually ships in 2-11 days

0

104

Billy Goat 8177011

Washer Split Lock 5/16”

$0.99

$

In Stock, Qty 10

0

107

Billy Goat 8041028

Screw Cap 5/16-18 x 1"

$0.99

$

In Stock, Qty 7

0

108

Billy Goat 8041035

Screw Cap 5/16-18 x 2-3/4 “

$0.99

$

Usually ships in 2-11 days

0

109

Billy Goat 8024039

Bolt Carriage 5/16-18 x 3/4 “

$0.99

$

In Stock, Qty 10

0

110

Billy Goat 900230

Washer Flat 1/2

$0.99

$

In Stock, only 2 left!

0

111

Billy Goat 8197016

Pin Cotter 3/32 x 3/4"

$0.99

$

In Stock, Qty 9

0

112

Billy Goat 500114

Bolt Shoulder 1/2 x 1”

$9.49

$

In Stock, only 1 left!

0

113

Billy Goat 816003

Nut Lock 3/8-16

$

$

Currently unavailable

114

Billy Goat 800888

Bolt Idler

$9.99

$

In Stock, only 1 left!

0

116

Billy Goat 8142002

Nut Jam 5/16-18

$0.99

$

Usually ships in 2-11 days

0

117

Billy Goat 8160002

Nut Lock 5/16-18

$0.99

$

In Stock, only 4 left!

0

119

Billy Goat 8041030

Screw Cap 5/16-18 x 1-1/2”

$0.99

$

Usually ships in 2-11 days

0

122

Billy Goat 850408

Screw Cap 1/4-28 x 1/2” GR5

$0.99

$

Usually ships in 2-11 days

0

123

Billy Goat 8181008

Washer Lock 5/16” External Tooth

$0.99

$

Usually ships in 2-11 days

0

124

Billy Goat 8171002

Washer 1/4” FC

$0.99

$

In Stock, Qty 10

0

125

Billy Goat 8123128

Screw Self Tap 5/16”

$1.49

$

In Stock, only 1 left!

0

126

Billy Goat 900471

Pin Hair Cotter

$1.49

$

In Stock, only 2 left!

0

127

Billy Goat 8171003

Washer 5/16 FC

$0.99

$

In Stock, Qty 10

0

128

Billy Goat 8197016

Pin Cotter 3/32 x 3/4”

$0.99

$

In Stock, Qty 9

0

129

Billy Goat 8172015

Washer 3/4” SAE

$0.99

$

In Stock, only 3 left!

0

130

Billy Goat 850238

Washer 0.765 x 1.250 x 0.060”

$1.49

$

In Stock, only 2 left!

0

132

Billy Goat 850230

Ring Snap 0.750”

$0.99

$

Usually ships in 2-11 days

0

133

Billy Goat 9201087

Key 3/16 x 2-1/8”

$2.99

$

In Stock, only 2 left!

0

135

Billy Goat 800554

Screw Cap 7/16-20 x 1-1/4” GR8

$

$

Not available

136

Billy Goat 350153

Washer 7/8 SAE

$2.99

$

Usually ships in 2-11 days

0

138

Billy Goat 9201072

Key Sq 3/16 x 5/8”

$2.99

$

In Stock, only 2 left!

0

139

Billy Goat 500188

Screw Cap 7/16-20 x 2” GR8

$3.49

$

Usually ships in 2-11 days

0

140

Billy Goat 850132

Washer Lock 7/16”

$

$

Not available

141

Billy Goat 8171003

Washer 5/16 FC

$0.99

$

In Stock, Qty 10

0

148

Billy Goat 8160003

Nut Lock 3/8 - 16

$0.99

$

In Stock, Qty 6

0

152

Billy Goat 8041007

Screw Cap 1/4-20 x 1-1/4”

$0.99

$

In Stock, only 1 left!

0

155

$181.99

$

Usually ships in 2-11 days

0

156

$181.99

$

Usually ships in 2-11 days

0

180

Billy Goat 400424

Label OPEI

$3.99

$

In Stock, only 1 left!

0

184

Billy Goat 810736

Label Flying Debris

$3.99

$

In Stock, only 2 left!

0

197

Billy Goat 800177

Washer Lock 5/16 twisted tooth

$4.49

$

Usually ships in 2-11 days

0

200

Billy Goat 430298

Washer Lock 5/16 twisted tooth heavy

$1.99

$

In Stock, only 2 left!

0

201

Billy Goat 850233

Snap ring

$0.99

$

In Stock, only 1 left!

0
