BC 2400 - Weed Eater Brushcutter, Type 6 Handle, Chassis & Bar Assembly Type 6 Parts Diagram

Brushcutter, Type 6

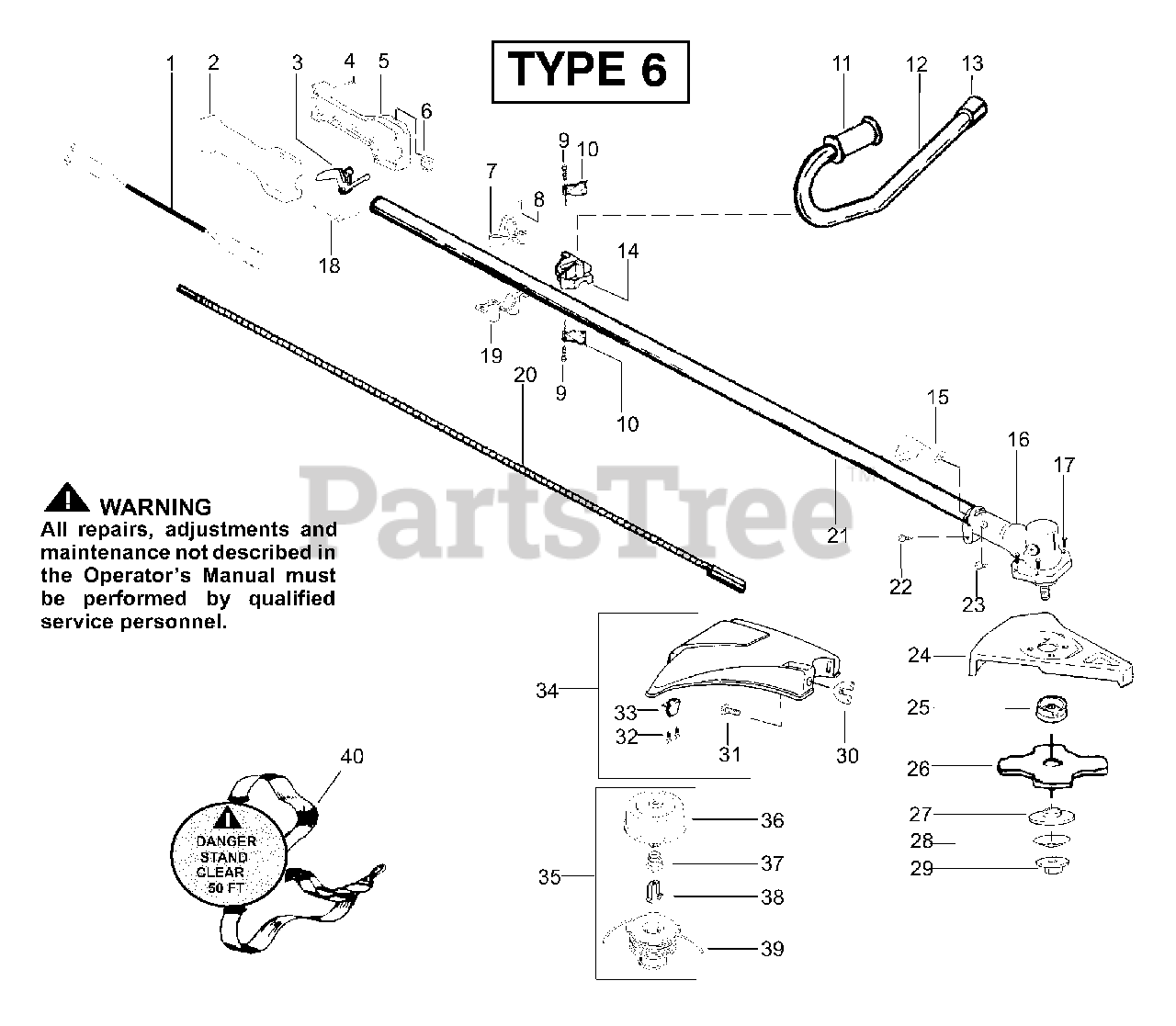

Handle, Chassis & Bar Assembly Type 6 Parts Diagram

  • Title
1

UNKNOWN

$

$

Not available

2

Poulan 530047307

Assy-Leadwire

$9.99

$

Usually ships in 3-10 days

0

2

Poulan 530053968

Hsg.-Throttle Right

$

$

Not available

3

Poulan 530056334

Lever-Throttle

$

$

Not available

$6.49

$

In Stock, only 3 left!

0

5

Poulan 530053969

Hsg.-Throttle Left

$

$

Not available

6

Poulan 530069572

Kit-On/Off Switch

$9.49

$

In Stock, only 3 left!

0

7

Poulan 530055392

Clamp-Upper
(Superseded to 530071605)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530094572

Bracket-Handlebar

$3.99

$

In Stock, only 1 left!

0

11

Poulan 530092086

Grip-Handlebar

$

$

Not available

12

Poulan 530056300

Kit-Handlebar Assy. w/decal

$16.99

$

Usually ships in 3-10 days

0

13

Poulan 530092192

End Cap-Handlebar

$0.99

$

Usually ships in 3-10 days

0

14

Poulan 530012207

Clamp-Handlebar

$

$

Not available

15

Poulan 530095812

Bracket-Shield

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 530071585

Kit-Gear Box Ass'y.

$

$

Not available

17

$6.49

$

In Stock, only 3 left!

0

18

Poulan 530027597

Spring-lever return

$3.99

$

In Stock, only 4 left!

0

19

Poulan 530055394

Clamp-Lower

$

$

Not available

20

Poulan 530094585

Shaft-Flex

$

$

Not available

21

Poulan 530071338

Kit-Drive Shaft Assy

$37.99

$

Usually ships in 3-10 days

0

22

$6.49

$

In Stock, only 3 left!

0

23

$6.49

$

In Stock, only 4 left!

0

24

Poulan 530071383

Kit-Metal Shield

$14.99

$

Usually ships in 3-10 days

0

25

Poulan 530095815

Dust Cup

$11.99

$

In Stock, Qty 6

0

26

Poulan 952701611

Accy-4 Point Blade
(Superseded to 952711585)

$

$

Not available

27

$10.99

$

In Stock, Qty 5

0

28

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, only 1 left!

0

29

Poulan 530015793

Nut-Flange

$6.49

$

In Stock, Qty 5

0

30

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 1 left!

0

32

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

33

Poulan 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530069779

Kit-Shield Ass'y.

Note: (Incl.30-33)

$

$

Not available

35

Poulan 952711550

Accy-Cutting Head

Note: (Incl. 36-39)

$

$

Not available

36

Poulan 530095772

Assy-Hub

$

$

Not available

37

Poulan 530053241

Spring-Return

$

$

Not available

38

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

39

Poulan 952711551

Accy-Spool w/Line

$

$

Not available

40

Poulan 530094417

Assy-Shoulder Strap

$

$

Not available

Poulan 530163429

Manual-Operator

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530056335

Decal-Blade Direction

Note: Not Shown

$2.23

$

Usually ships in 3-10 days

0

Poulan 530031159

Hex Wrench (5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Poulan 530031098

Hex Wrench (3/16)

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530027778

Decal-H'bar Warning

Note: Not Shown

$

$

Not available

Poulan 530055349

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
