BC 233 B - Electrolux/AYP String Trimmer (2010-03) SHAFT HANDLE Parts Diagram

String Trimmer

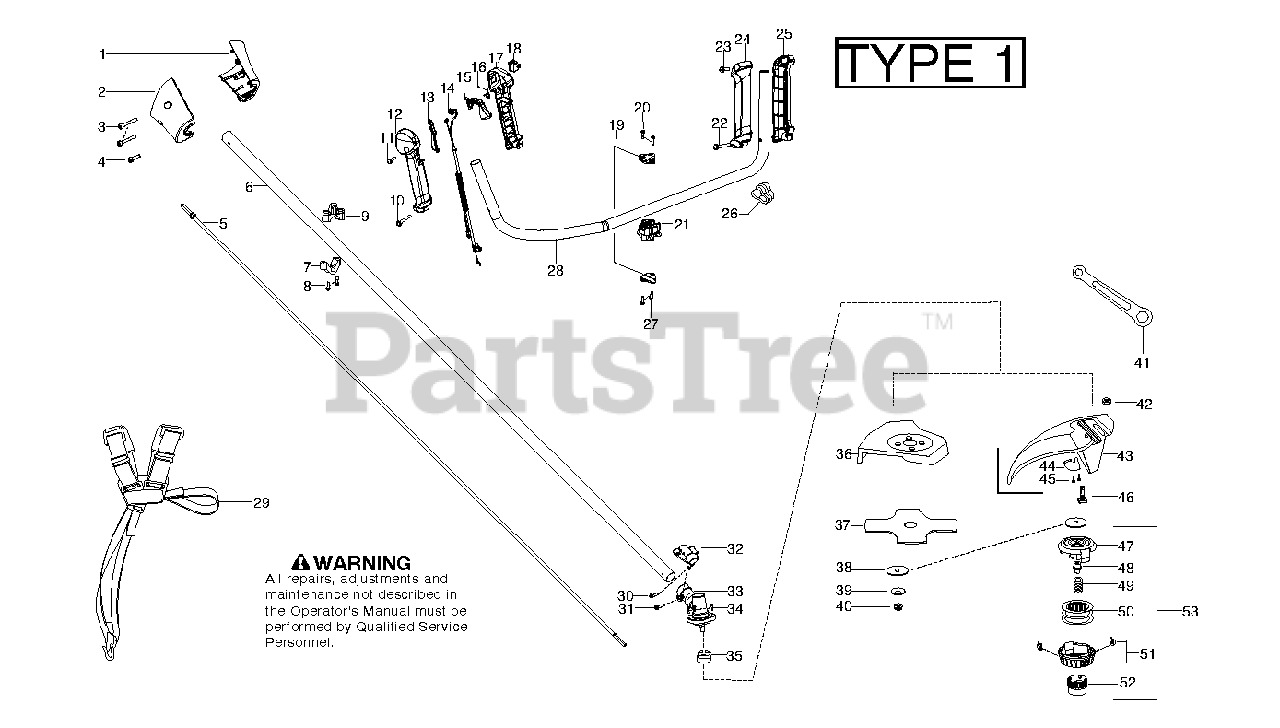

SHAFT HANDLE Parts Diagram

  • Title

1

Electrolux/AYP 545207001

NOSECONE LH LT33 BUL

$2.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 545207101

NOSECONE RH LT33 BUL

$2.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 530015805

SCREW-10-16 X 1/2, TYPE 2
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

5

Electrolux/AYP 545007507

FLEXSHAFT 57"

$34.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 545180867

Drive Shaft Assembly

$46.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 545056601

CLAMP HARNESS LOWER

$4.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 530015940

SCREW

$6.49

$

In Stock, Qty 8

0

9

Electrolux/AYP 545113301

CLAMP HARNESS UPPER

$6.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 530016406

SCREW #10 PLASTITE 1.362

$6.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015934

SCREW

$4.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 545158902

HANDLE HOUSING

$

$

Not available

13

Electrolux/AYP 545159401

THROTTLE LOCKOUT

$

$

Not available

14

Electrolux/AYP 545216401

WIRING ASSY

$24.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 545159501

TRIGGER

$2.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 545165301

SPRING

$

$

Not available

17

Electrolux/AYP 545159701

Housing

$9.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530069572

SWITCH

$9.49

$

In Stock, only 3 left!

0

19

Electrolux/AYP 530058563

CLAMP BRACKET

$4.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, only 3 left!

0

21

Electrolux/AYP 530058765

Clamp

$

$

Not available

22

Electrolux/AYP 530016406

SCREW #10 PLASTITE 1.362

$6.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 530015934

SCREW

$4.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 545159001

HANDLE

$

$

Not available

25

Electrolux/AYP 545159101

Handle

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 502211201

GROMMET

$7.49

$

In Stock, only 2 left!

0

27

Electrolux/AYP 530015940

SCREW

$6.49

$

In Stock, Qty 8

0

28

Electrolux/AYP 545219901

ASSY HANDLEBAR BULLH

Note: (Incl 22 23 24 25)

$34.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 544845802

HARNESS BLACK NO LABEL

$

$

Not available

30

Electrolux/AYP 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

31

Electrolux/AYP 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

32

Electrolux/AYP 575963401

Bracket

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530096100

GEARBOX

$62.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 530016312

SCR 10-24 MS LDK PAN PH

$6.49

$

In Stock, only 3 left!

0

35

Electrolux/AYP 530095815

DUST CUP , BLADE

$11.99

$

In Stock, Qty 6

0

36

Electrolux/AYP 530071947

KIT
(Superseded to 530071976)

$21.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530055892

ASSEMBLY
(Superseded to 577614209)

$34.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 530095816

WASHER,BLADE RETAINING

$10.99

$

In Stock, Qty 5

0

39

Electrolux/AYP 530016240

Belleville Washer

$6.49

$

In Stock, only 1 left!

0

40

Electrolux/AYP 530015793

NUT-FLANGE (LH)

$6.49

$

In Stock, Qty 5

0

41

Electrolux/AYP 530056401

Wrench

$13.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530015197

NUT

$6.49

$

In Stock, only 4 left!

0

43

Electrolux/AYP 545081001

KIT

Note: . 41 42 44 45 46

$27.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 530052286

LINE CUTTER

$

$

Not available

45

Electrolux/AYP 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

46

Electrolux/AYP 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

47

Electrolux/AYP 537419302

Housing

$11.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 537419901

ADAPTER

$11.99

$

In Stock, only 4 left!

0

49

Electrolux/AYP 537338801

SPRING
(Superseded to 537338801)

$6.49

$

In Stock, only 2 left!

0

50

Electrolux/AYP 530096328

SPOOL WOUND LH 15 FT.

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 545003365

COVER

$9.49

$

In Stock, only 1 left!

0

52

Electrolux/AYP 537419601

KNOB
(Superseded to 537419601)

$6.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 537419211

Trimmer Head, P25
(Superseded to 596585805)

Note: . 47 48 49 50 51 52

$31.99

$

In Stock, only 1 left!

0
