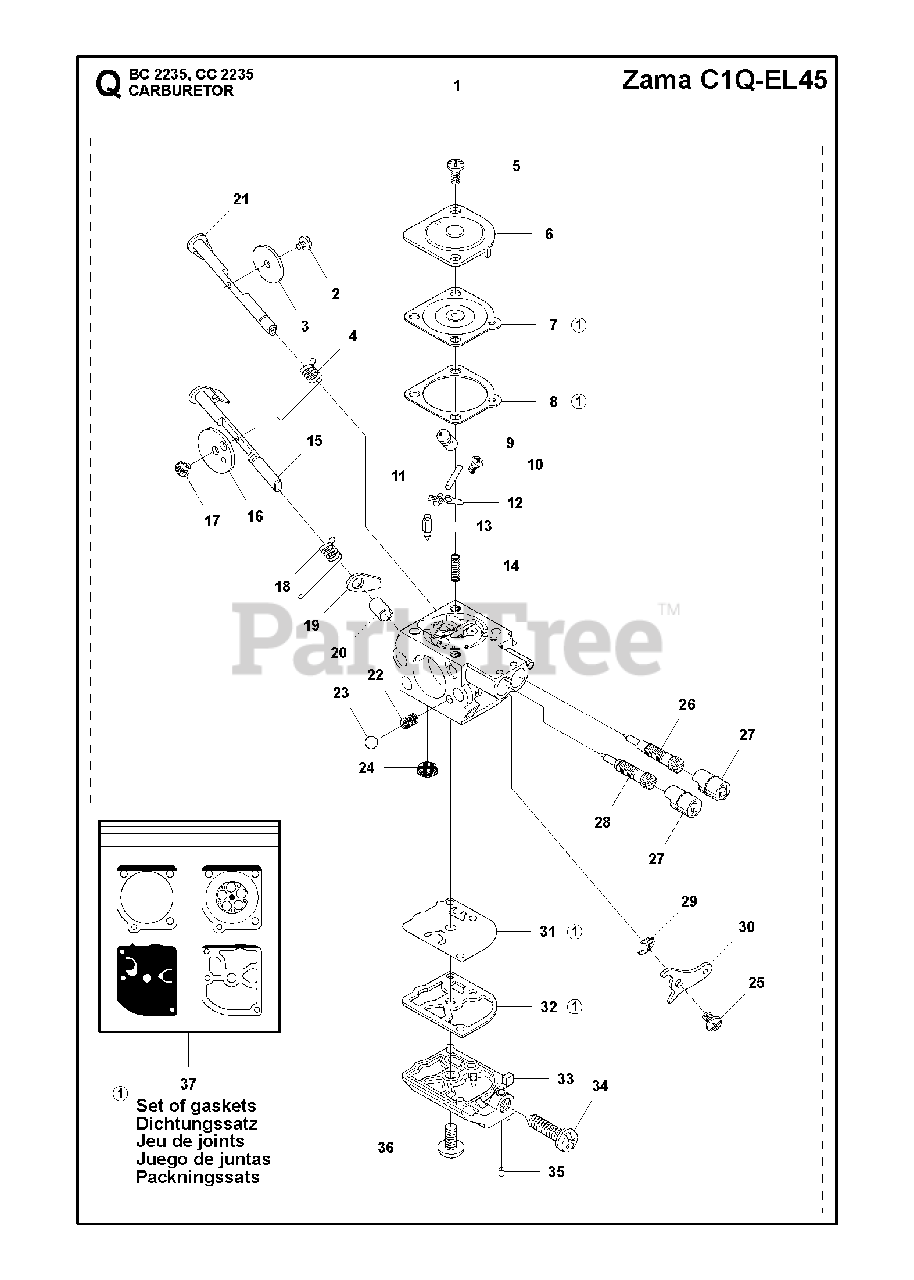

BC 2235 - Jonsered Brushcutter (2011-02) CARBURETOR Parts Diagram

Brushcutter

CARBURETOR Parts Diagram

  • Title

1

Jonsered 575729001

CARBURETOR

Note: Zama C1Q-EL45

$113.99

$

Usually ships in 3-10 days

0

2

Jonsered 503479201

SCREW

Note: . 1

$3.99

$

In Stock, only 2 left!

0

3

Jonsered 537417201

THROTTLE

Note: . 1

$12.99

$

Usually ships in 3-10 days

0

4

Jonsered 544372401

RETURN SPRING

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 503480501

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 503974301

COVER

Note: . 1

$6.99

$

In Stock, only 1 left!

0

7

Jonsered 504105601

DIAPHRAGM

Note: . 1 37

$17.99

$

Usually ships in 3-10 days

0

8

Jonsered 537020401

GASKET

Note: . 1 37

$4.99

$

In Stock, Qty 9

0

9

Jonsered 537387301

JET

Note: . 1

$15.99

$

Usually ships in 3-10 days

0

10

Jonsered 503480101

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

11

Jonsered 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 1

$3.49

$

In Stock, only 1 left!

0

12

Jonsered 503665901

LEVER

Note: . 1

$4.99

$

In Stock, only 2 left!

0

13

Jonsered 503479701

INLET NEEDLE

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

14

Jonsered 537020301

SPRING
(Superseded to 537273401)

Note: . 1

$

$

Not available

15

Jonsered 501327101

SHAFT ASSY

Note: . 1

$

$

Not available

16

Jonsered 537370301

CHOKE CAP

Note: . 1

$7.99

$

In Stock, only 3 left!

0

17

Jonsered 503481801

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

18

Jonsered 544372601

SPRING

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

19

Jonsered 544372501

LEVER

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

20

Jonsered 544427001

SLEEVE

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

21

Jonsered 504102701

SHAFT ASSY

Note: . 1

$

$

Not available

22

Jonsered 537012601

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

23

Jonsered 537012501

BALL

Note: . 1

$3.99

$

In Stock, Qty 6

0

24

Jonsered 503481301

FUEL INLET SCREEN

Note: . 1

$3.99

$

In Stock, only 4 left!

0

25

Jonsered 503479001

SCREW

Note: . 1

$3.99

$

In Stock, Qty 8

0

26

Jonsered 537416901

IDLE SCREW

Note: . 1

$15.99

$

Usually ships in 3-10 days

0

27

Jonsered 537417001

LIMITER CAP KIT

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

28

Jonsered 537387501

SCREW

Note: . 1

$13.41

$

Usually ships in 3-10 days

0

29

Jonsered 537385201

CLIP

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

30

Jonsered 576270201

THROTTLE LEVER

Note: . 1

$

$

Not available

31

Jonsered 537020001

PUMP DIAPHRAGM

Note: . 1 37

$9.49

$

In Stock, Qty 5

0

32

Jonsered 537020101

GASKET

Note: . 1 37

$4.99

$

In Stock, Qty 13

0

33

Jonsered 537020201

COVER

Note: . 1

$26.99

$

Usually ships in 3-10 days

0

34

Jonsered 537020701

SCREW

Note: . 1

$14.99

$

In Stock, only 1 left!

0

35

Jonsered 503481101

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

36

Jonsered 503479601

SCREW

Note: . 1

$3.99

$

In Stock, Qty 5

0

37

Jonsered 531004552

GASKET KIT (ZAMA GND39)

Note: Set of gaskets

$11.99

$

In Stock, only 1 left!

0
