BC 2200 E - RedMax Brushcutter (1998-09) 002 - TRIMMER UNIT Parts Diagram

Brushcutter

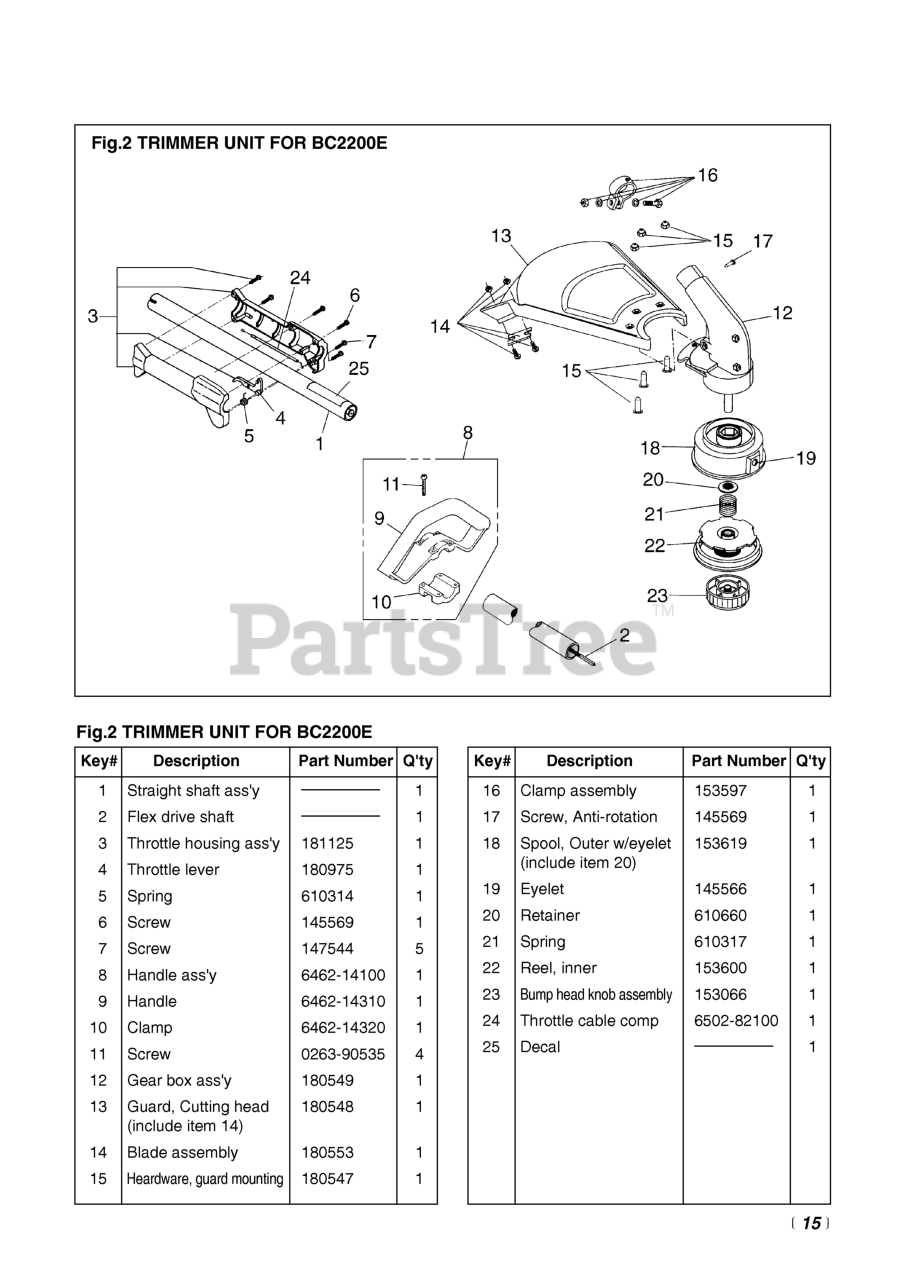

002 - TRIMMER UNIT Parts Diagram

  • Title
1

STRAIGHT SHAFT ASSY

$

$

Not available

2

FLEX, DRIVE SHAFT

$

$

Not available

3

RedMax 181125

180277
(Superseded to 574047201)

$

$

Not available

4

RedMax 180975

LEVER, THROTTLE
(Superseded to 574049001)

$

$

Not available

5

RedMax 610314

SPRING, THROTTLE TRIGGER
(Superseded to 574065001)

$

$

Not available

6

RedMax 145569

SET SCREW, ANTI-ROTATION
(Superseded to 574045201)

$

$

Not available

7

$

$

Not available

8

RedMax 646214100

HANDLE ASSEMBLY
(Superseded to 521473001)

$20.99

$

Usually ships in 3-10 days

0

9

RedMax 646214310

HANDLE
(Superseded to 515642801)

$

$

Not available

10

RedMax 646214320

CLAMP
(Superseded to 521473201)

$6.49

$

Usually ships in 3-10 days

0

11

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

12

RedMax 180549

GEARBOX ASSEMBLY
(Superseded to 574047801)

$

$

Not available

13

RedMax 180548

ASSY, GUARD & BLADE
(Superseded to 574047701)

$

$

Not available

14

RedMax 180553

ASSY, BLADE
(Superseded to 532180552)

$80.99

$

In Stock, Qty 5

0

15

RedMax 180547

ASSY, GUARD MOUNTING SCREWS
(Superseded to 574047601)

$

$

Not available

16

RedMax 153597

CLAMP ASSY, LOWER
(Superseded to 574046601)

$8.49

$

Usually ships in 3-10 days

0

17

RedMax 145569

SET SCREW, ANTI-ROTATION
(Superseded to 574045201)

$

$

Not available

18

RedMax 153619

OUTER SPOOL ASSEMBLY
(Superseded to 574046701)

$24.99

$

Usually ships in 3-10 days

0

19

RedMax 145566

EYELET
(Superseded to 574045001)

$14.99

$

Usually ships in 3-10 days

0

20

RedMax 610660

WASHER, EYELET
(Superseded to 574065301)

$

$

Not available

21

RedMax 610317

610317B
(Superseded to 574098101)

$7.49

$

Usually ships in 3-10 days

0

22

RedMax 153600

610318
(Superseded to 917153600)

$

$

Not available

23

RedMax 153066

153066B
(Superseded to 574090801)

$

$

Not available

24

RedMax 650282100

CABLE COMP (RPLS 6460- )
(Superseded to 574087701)

$

$

Not available

25

DECAL

$

$

Not available
