BC 2090 (41BDC90C912) - Cub Cadet Brush Cutter (2011) Engine Assembly Parts Diagram

Brush Cutter

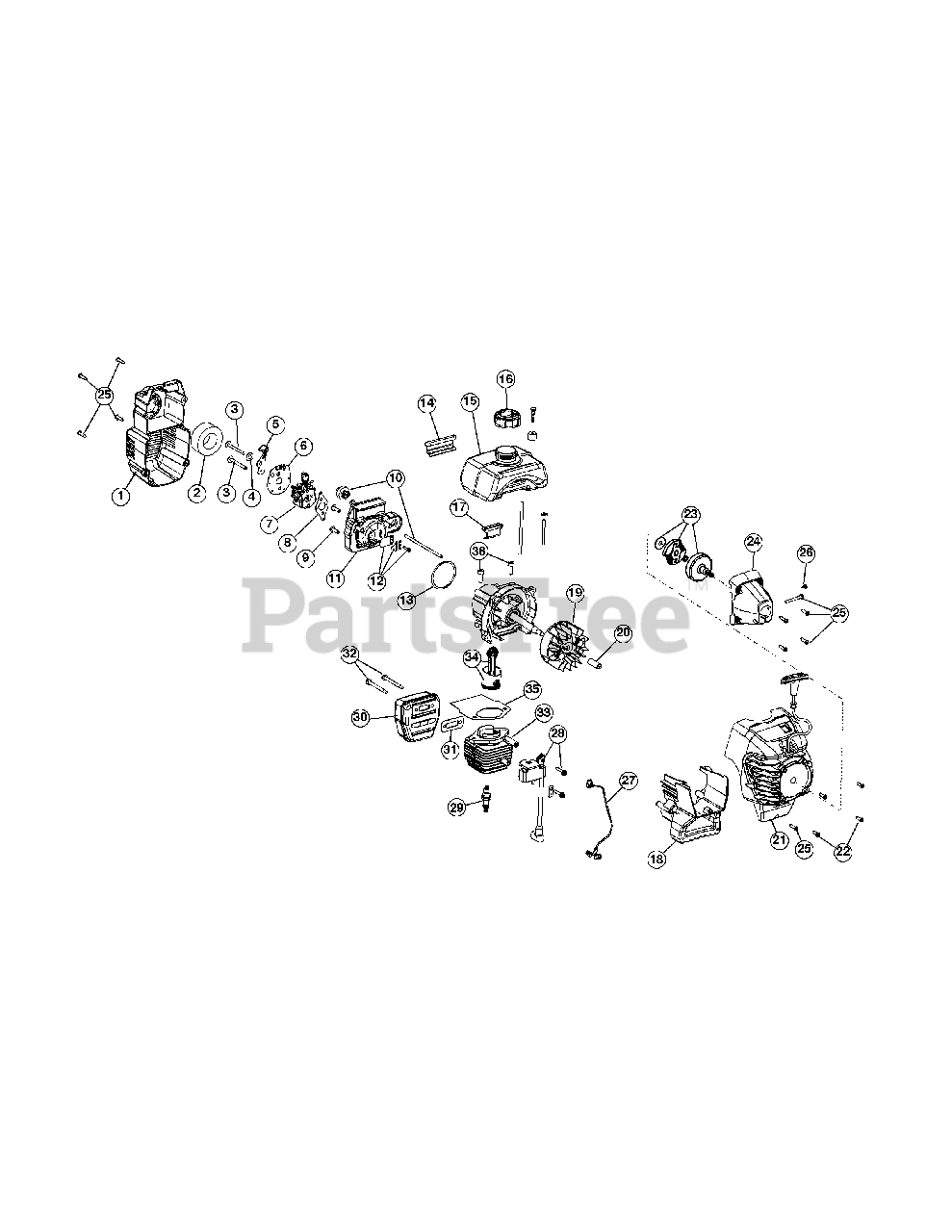

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-04511

Air Cleaner Cover Assembly

Note: (Incl Ref No. 2)

$38.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

Cub Cadet 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

Cub Cadet 936-0271

Wavey Washer

$4.49

$

In Stock, Qty 10

0

5

Cub Cadet 753-04418

Choke Lever

$

$

Not available

6

Cub Cadet 753-04419

Choke Plate

Note: (Incl Ref No. 5)

$

$

Not available

7

Cub Cadet 753-05133

Carburetor Assembly

Note: (Incl Ref No. 8)

$81.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

9

Cub Cadet 791-181860

Carb Mount Screw

$

$

Not available

10

Cub Cadet 791-683974B

Primer & Hose Assembly

$22.99

$

In Stock, Qty 18

0

11

Cub Cadet 753-1196

Carb Mount Assembly

Note: (Incl Ref No. 9, 12 & 13)

$

$

Not available

12

Cub Cadet 791-684451

Reed Assembly

$

$

Not available

13

Cub Cadet 721-04163

Carburetor O-Ring

$3.99

$

In Stock, Qty 7

0

14

Cub Cadet 791-612134

Rear Mounting Pad

$

$

Not available

15

Cub Cadet 791-182767

Fuel Tank Assembly

Note: (Incl Ref No. 16)

$

$

Not available

16

Cub Cadet 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 10

0

17

Cub Cadet 791-145308

Front Mounting Pad

$

$

Not available

18

Cub Cadet 791-182401

Shroud Extension & Stand

Note: (Incl Ref No. 25)

$

$

Not available

19

Cub Cadet 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

20

Cub Cadet 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 753-06077

Starter Housing Assembly

Note: (Incl Ref No. 22 & 25)

$29.99

$

In Stock, only 1 left!

0

22

Cub Cadet 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

23

Cub Cadet 753-05860

Clutch Rotor Assembly

$25.99

$

In Stock, Qty 10

0

24

Cub Cadet 753-04889

Clutch Cover Assembly

Note: (Incl Ref No. 25 & 26)

$21.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 753-05025

Wire Leads and Sleeve

$13.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 753-06588

Module Assembly

$

$

Not available

29

Cub Cadet 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

30

Cub Cadet 753-05169

Muffler Assembly

Note: (Incl Ref No. 31 & 32)

$112.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 791-180980

Exhaust Gasket

$7.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-04188A

Muffler Mounting Bolts

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 753-04814

Cylinder Assembly

Note: (Incl Ref No. 35 & 36)

$83.99

$

In Stock, only 1 left!

0

34

Cub Cadet 753-04367

Piston and Rod Assembly

$

$

Not available

35

Cub Cadet 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

*

Cub Cadet 753-1209

Piston Ring Set

Note: Not shown

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-04812

Short Block Assembly

Note: (Incl Ref No. 9, Crankcase, 24 & 33-36) Not shown

$208.99

$

Usually ships in 3-6 days

0
