BC 2001 DL - RedMax Brushcutter (SN: 505473 - 507960) (1995-01) 008 - TRIMMER UNIT Parts Diagram

Brushcutter

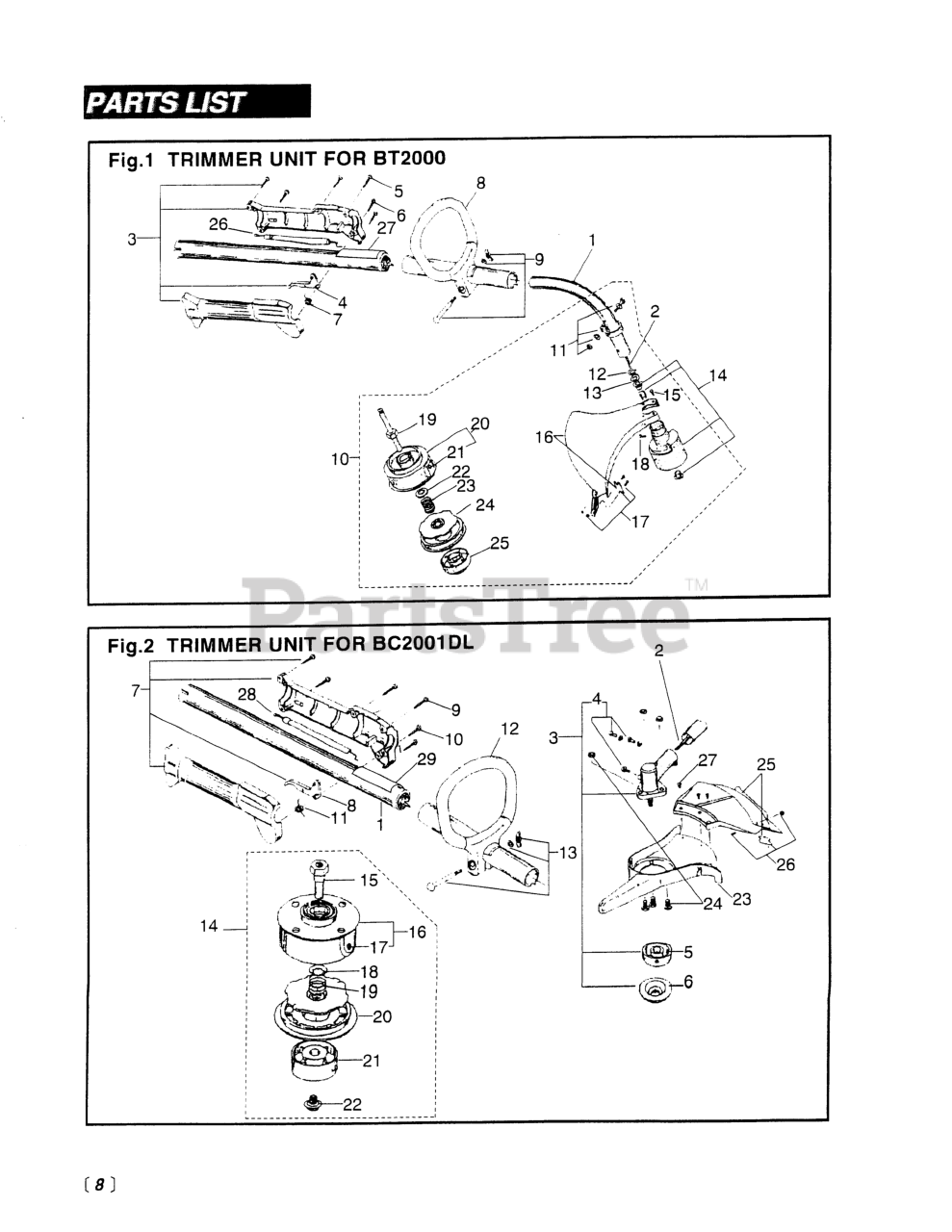

008 - TRIMMER UNIT Parts Diagram

  • Title
1

RedMax 180906

PIPE ASSY (BC2001)(NLA)

Note: Context Note: @ÿ

$

$

Not available

2

RedMax 180907

SHAFT, FLEX (RLPS. 181773)
(Superseded to 574048701)

$

$

Not available

3

RedMax 147488

GEARCASE ASSEMBLY
(Superseded to 574060101)

$

$

Not available

4

RedMax 147677

HARDWARE, MOUNTING

$7.99

$

Usually ships in 3-10 days

0

5

RedMax 147489

HOLDER (U), BLADE DRIVER
(Superseded to 574045601)

$

$

Not available

6

RedMax 147490

HOLDER (L) (RPLS 613222)

$5.00

$

Usually ships in 3-10 days

0

7

RedMax 181125

180277
(Superseded to 574047201)

$

$

Not available

8

RedMax 180975

LEVER, THROTTLE
(Superseded to 574049001)

$

$

Not available

9

RedMax 145569

SET SCREW, ANTI-ROTATION
(Superseded to 574045201)

$

$

Not available

10

RedMax 147544

181501

$

$

Not available

11

RedMax 610314

SPRING, THROTTLE TRIGGER
(Superseded to 574065001)

$

$

Not available

12

RedMax 145819

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

13

RedMax 153525

181587
(Superseded to 917153525)

$7.99

$

Usually ships in 3-10 days

0

14

RedMax 147498

UBT200 - CUTTING HEAD ASSY.

$

$

Not available

15

RedMax 612483

SHAFT
(Superseded to 574065601)

$

$

Not available

16

RedMax 147494

HOUSING, OUTER SPOOL
(Superseded to 791-683301)

$28.99

$

Usually ships in 3-10 days

0

17

RedMax 145566

EYELET
(Superseded to 574045001)

$14.99

$

Usually ships in 3-10 days

0

18

RedMax 612026

WASHER

$5.65

$

Usually ships in 3-10 days

0

19

RedMax 610636

SPRING, INNER REEL
(Superseded to 610636B)

$

$

Not available

20

RedMax 147495

REEL, INNER
(Superseded to 917147495)

$8.99

$

Usually ships in 3-10 days

0

21

RedMax 147496

KNOB (USE 180814)
(Superseded to 574091501)

$

$

Not available

22

RedMax 147676

KNOB, BUMP HEAD (USE 180814)
(Superseded to 574091501)

$

$

Not available

23

RedMax 147492

MOUNT, GUARD

$62.43

$

Usually ships in 3-10 days

0

24

RedMax 147539

GUARD MOUNT HDWE SET
(Superseded to 574046201)

$8.99

$

Usually ships in 3-10 days

0

25

RedMax 683299

GUARD ASSEMBLY
(Superseded to 574066301)

$

$

Not available

26

RedMax 682061

BLADE ASSEMBLY
(Superseded to 574066001)

$10.99

$

Usually ships in 3-10 days

0

27

RedMax 683304

SCREW, GUARD MOUNT ASSY

$3.01

$

Usually ships in 3-10 days

0

28

RedMax 650282100

CABLE COMP (RPLS 6460- )
(Superseded to 574087701)

$

$

Not available

29

RedMax 180962

LABEL, BC2001DL

$1.42

$

Usually ships in 3-10 days

0
