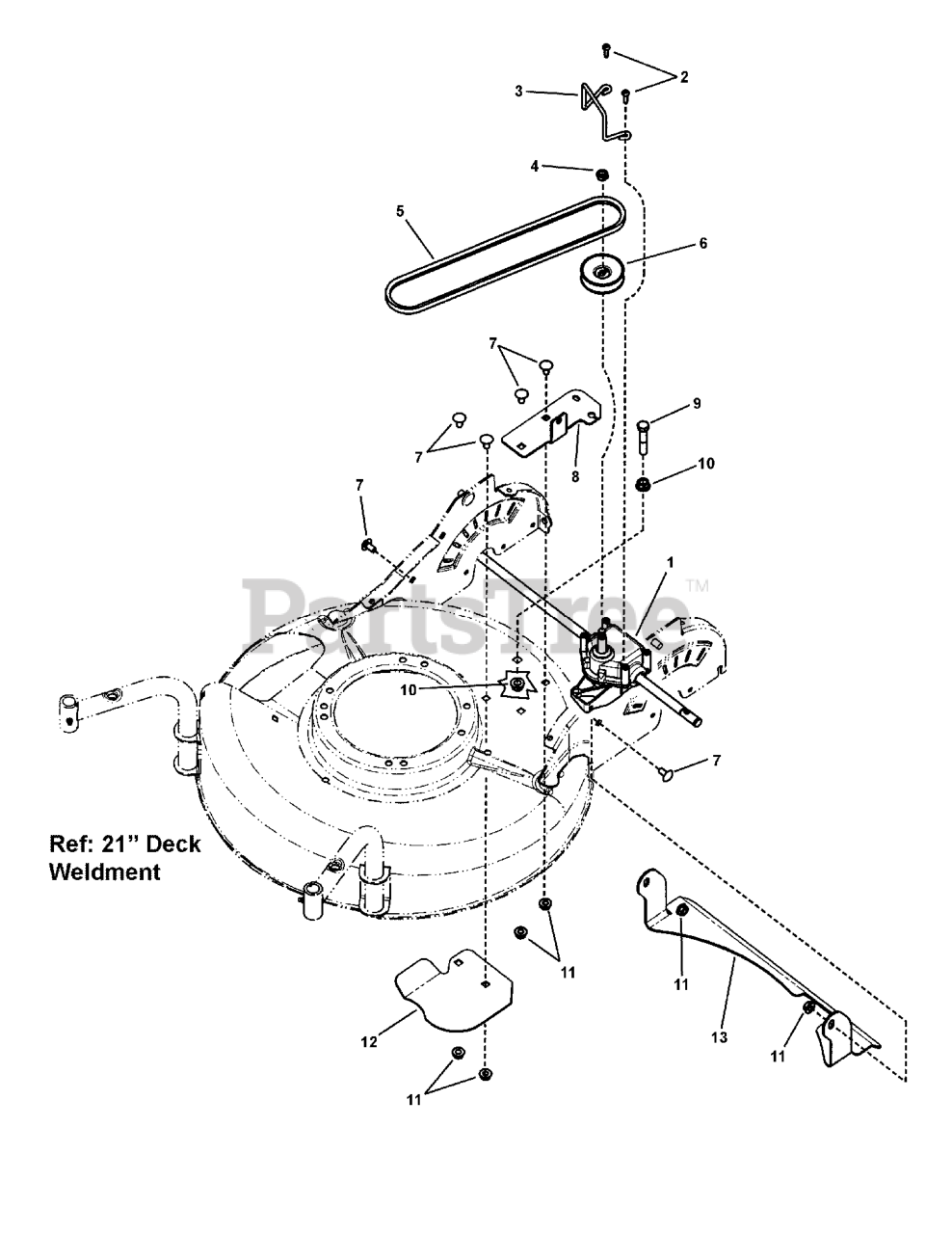

BBRS 219 BS (7800670) - Bad Boy 21" Walk-Behind Mower (2010) Transmission Group Parts Diagram

21" Walk-Behind Mower

Transmission Group Parts Diagram

  • Title

1

Murray 7100858YP

TRANSMISSION, Rocker, 21" WBM

$102.99

$

Usually ships in 2-12 days

0

2

Murray 7091195SM

SCREW, #10-16 x 3/4", Pan Head Self-Tap (Combo)

$4.49

$

In Stock, only 1 left!

0

3

Murray 7100863YP

BELT GUIDE, Transmission

$6.49

$

Usually ships in 2-12 days

0

4

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

5

Murray 7100883YP

BELT, 3L, Traction Drive, 21"

Note: effective length: 32.86"

$20.99

$

In Stock, only 1 left!

0

6

Murray 7100240YP

PULLEY, Transmission, Varaible Speed, LC WBM

$23.99

$

Usually ships in 2-12 days

0

7

Murray 7090799SM

BOLT, 5/16-18 x 5/8" Round Head Short Square Neck, GR 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

8

Murray 7300494AYP

BRACKET, Transmission Mounting

$8.49

$

Usually ships in 2-12 days

0

9

Murray 7091305SM

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5 YZ
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

10

Murray 7091619SM

NUT, 3/8-16 Hex Flange Lock, YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 7091601SM

NUT, 5/16-18 Hex Flange lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Murray 7300013AYP

SHIELD, Debris

$7.99

$

Usually ships in 2-12 days

0

13

Murray 7300700YP

SHIELD, Debris - 21"
(Superseded to 7300700BQYP)

$27.99

$

Usually ships in 2-12 days

0
