BBRS 219 BS (7800670) - Bad Boy 21" Walk-Behind Mower (2010) Mower Deck Group Parts Diagram

21" Walk-Behind Mower

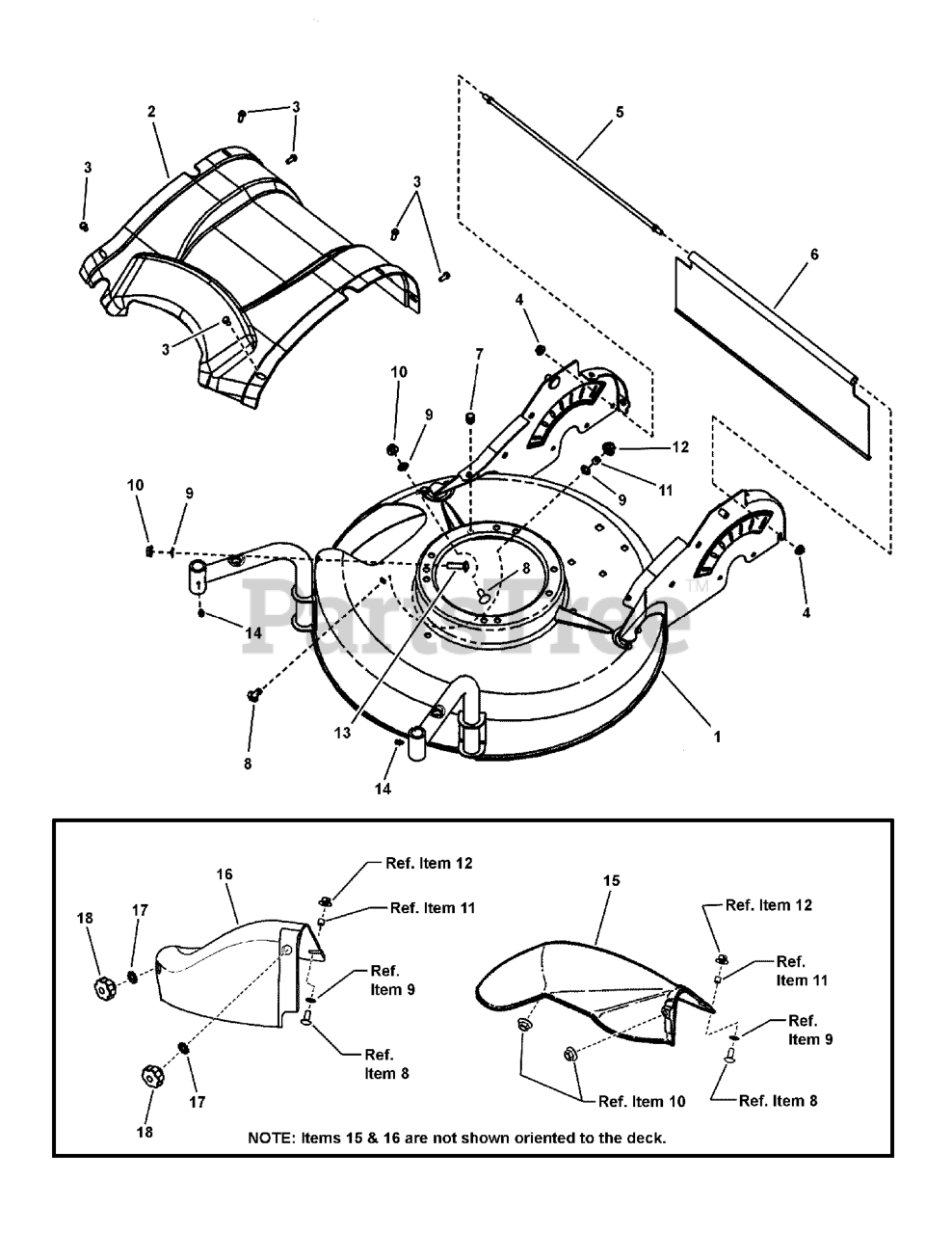

Mower Deck Group Parts Diagram

  • Title

1

Murray 7400295BQYP

WELDMENT, Deck, 21" Swivel Wheel, Value Line

$184.99

$

Usually ships in 2-12 days

0

2

Murray 7100001YP

COVER, Rear, Belt/Transmission

$70.99

$

Usually ships in 2-12 days

0

3

Murray 7900032YP

SCREW, 7MM x 1 x .550, AB Point

$4.49

$

In Stock, only 1 left!

0

4

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

5

Murray 7078225YP

ROD, Trail Shield (1/4-20 thread, both ends)

$10.99

$

Usually ships in 2-12 days

0

6

Murray 7078272YP

SHIELD, Trail

$15.99

$

In Stock, only 1 left!

0

7

Murray 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

8

Murray 7090001YP

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

9

Murray 7011791SM

BOLT RETAINER, 5/16- Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

10

Murray 7091070YP

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Murray 7024340SM

SPACER, .316 x .375 x .300/.310

$4.99

$

In Stock, only 4 left!

0

12

Murray 7090951SM

NUT, 5/16-18- Large Flange Hex Center Lock, Black
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

13

Murray 7091169YP

BOLT, 5/16-18 x 1-1/8" Round Head Short Square Neck Carriage, GR 5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

14

Murray 7013864SM

LUBE FITTING, 3/16" Press-Fit

$3.49

$

In Stock, Qty 12

0

15

Murray 7042965YP

CHUTE, 21 Side (Ext)

$53.99

$

Usually ships in 2-12 days

0

16

Murray 7029149YP

COVER, 21 Deck

$33.99

$

In Stock, Qty 20+

0

17

Murray 7090189SM

WASHER, 5/16 Internal/External Lock
(Superseded to 703936)

$4.49

$

In Stock, only 1 left!

0

18

Murray 7100516YP

KNOB, Fluted (5/16-18 Thread x .633)

$10.99

$

In Stock, Qty 5

0
