BBRS 219 BS (7800670) - Bad Boy 21" Walk-Behind Mower (2010) Grass Catcher Group Parts Diagram

21" Walk-Behind Mower

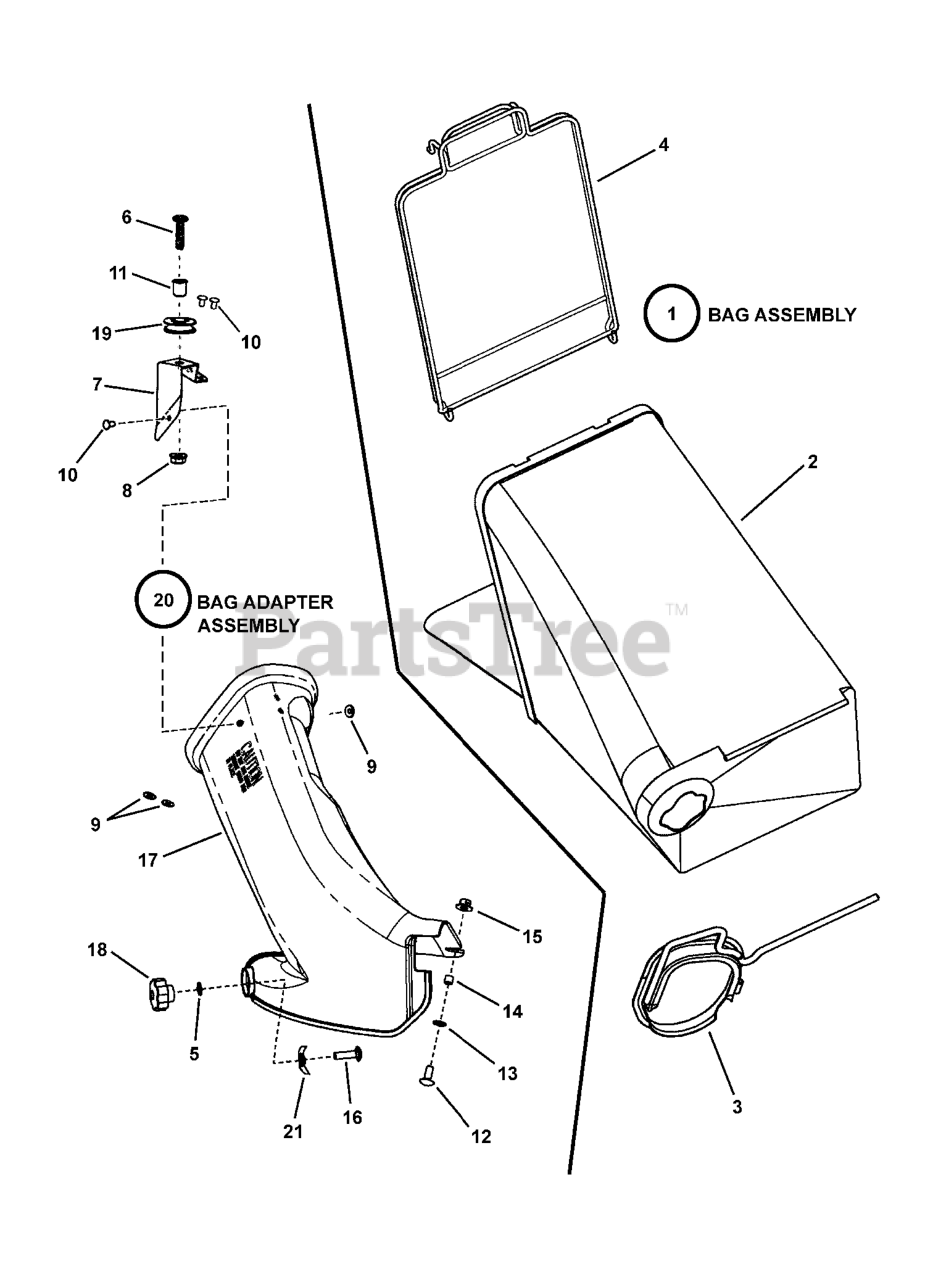

Grass Catcher Group Parts Diagram

  • Title

1

Murray 7500153YP

BAG ASSEMBLY, (Door) No Graphics

$

$

Not available

2

Murray 7100433YP

GRASS BAG, (Door) No Graphics

$95.99

$

In Stock, only 2 left!

0

3

Murray 7042489AYP

CONNECTOR, Bag (weldment)

$44.99

$

Usually ships in 2-12 days

0

4

Murray 7051906AYP

ASSEMBLY, Bag Wire (12") 21S
(Superseded to 7051906YP)

$110.99

$

In Stock, only 2 left!

0

5

Murray 7090189SM

WASHER, 5/16 Internal/External Lock
(Superseded to 703936)

$4.49

$

In Stock, only 1 left!

0

6

Murray 7091984YP

SCREW, 5/16-18 x 1-1/4" Pan Head Self-Tap

$5.49

$

Usually ships in 2-12 days

0

7

Murray 7047082AYP

BRACKET, Rope Guide

$9.49

$

Usually ships in 2-12 days

0

8

Murray 7090585MA

NUT, 5/16-18 Hex Flange Lock, GR 5

$3.99

$

In Stock, Qty 7

0

9

Murray 7072107YP

WASHER, .497 x .030 Flat

$3.99

$

Usually ships in 2-12 days

0

10

Murray 7013860YP

RIVET, 3/16 x .344
(Superseded to 704032)

$4.49

$

In Stock, only 2 left!

0

11

Murray 7012306SM

BUSHING, .381 x .625 x .62 Flange
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

12

Murray 7090001YP

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

13

Murray 7011791SM

BOLT RETAINER, 5/16- Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

14

Murray 7024340SM

SPACER, .316 x .375 x .300/.310

$4.99

$

In Stock, only 4 left!

0

15

Murray 7090951SM

NUT, 5/16-18- Large Flange Hex Center Lock, Black
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

16

Murray 7091833SM

SCREW, 5/16-18 x 5/5" Cross Recess Pan Head

$4.49

$

In Stock, only 1 left!

0

17

Murray 7047081YP

ADAPTER, Bag

$152.99

$

Usually ships in 2-12 days

0

18

Murray 7100516YP

KNOB, Fluted (5/16-18 Thread x .633)

$10.99

$

In Stock, Qty 5

0

19

Murray 7024228SM

PULLEY, Nylon

$4.99

$

In Stock, only 4 left!

0

20

Murray 7058037YP

ASSEMBLY, Bag Adapter
(Superseded to 7600117YP)

Note: (includes Ref. Nos. 6, 7, 8, 9, 10, 11, 17 & 19)

$142.99

$

Usually ships in 2-12 days

0

21

Murray 7900028YP

NUT, 5/16-18 Speed

$3.99

$

Usually ships in 2-12 days

0
