BBRS 219 BS (7800670) - Bad Boy 21" Walk-Behind Mower (2010) Front Wheels Group Parts Diagram

21" Walk-Behind Mower

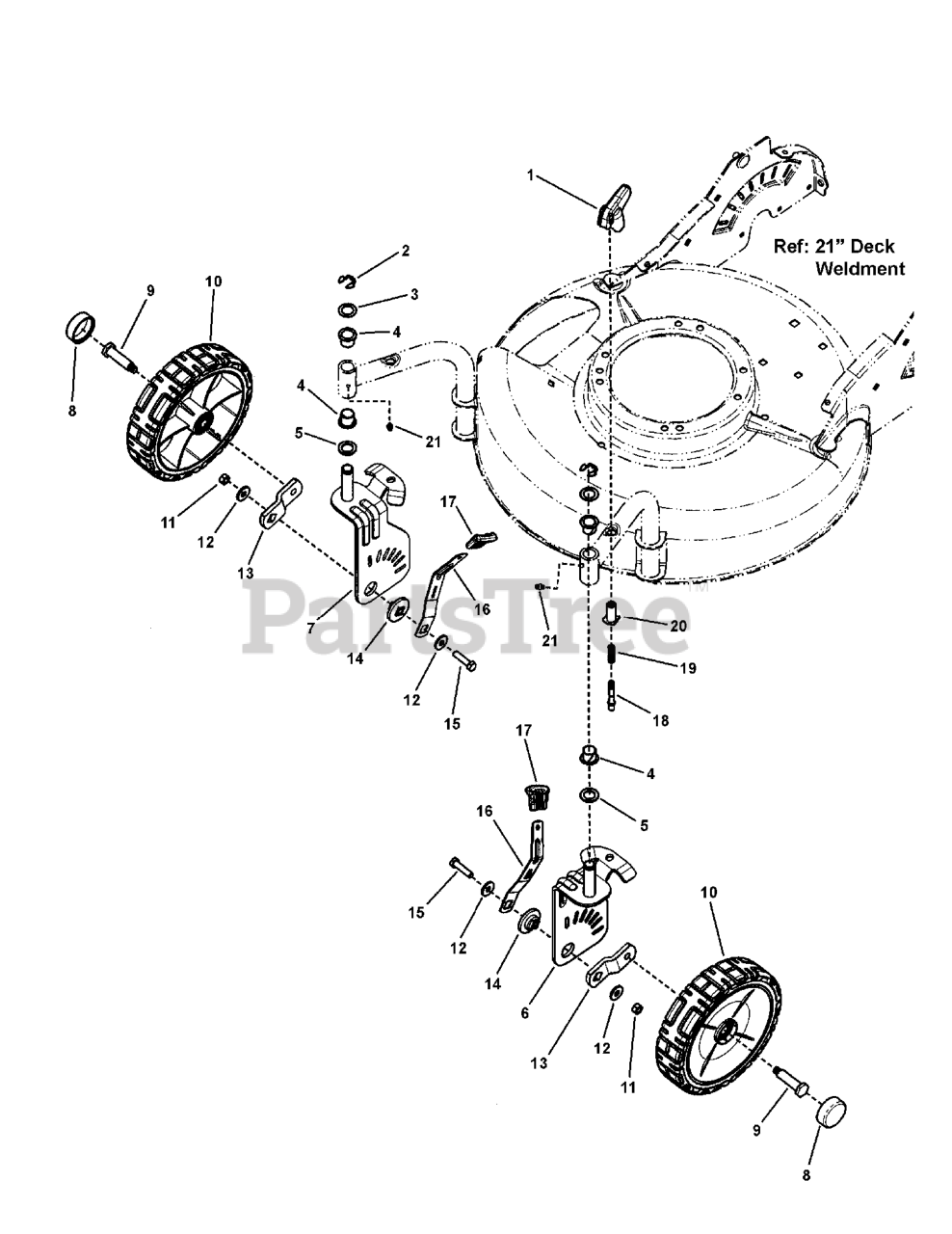

Front Wheels Group Parts Diagram

  • Title

1

Murray 7101202YP

KNOB, Quick Release

$6.99

$

Usually ships in 2-12 days

0

2

Murray 1704420SM

RING, Klipring Ext for .625 Dia. Shaft

$4.99

$

In Stock, only 2 left!

0

3

Murray 7092021YP

WASHER, .64 x .99 x .025 Flat, YZ

$3.99

$

In Stock, only 1 left!

0

4

Murray 7046628YP

NYLINER, 5/8

$4.99

$

In Stock, only 3 left!

0

5

Murray 7091628SM

WASHER, .64 x .99 x .05 Flat, YZ

$4.49

$

In Stock, only 3 left!

0

6

Murray 7400293YP

WELDMENT, Swivel Wheel Bracket, LH

$61.99

$

Usually ships in 2-12 days

0

7

Murray 7400294YP

WELDMENT, Swivel Wheel Bracket, RH

$63.99

$

Usually ships in 2-12 days

0

8

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

9

Murray 7101484YP

AXLE, Swivel Wheel, 1-5/8

$15.99

$

Usually ships in 2-12 days

0

10

Murray 7500540YP

ASSY, Wheel, 8 x 2 Idle, Snapper Tread Snapper Charcoal Gray

Note: (Includes Ref. No. 22)

$40.99

$

In Stock, only 2 left!

0

11

Murray 7091575SM

NUT, 5/16-18 Hex Center Lock, YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

12

Murray 7900022YP

WASHER, .875 x .327 x .090, Flat, YZ

$3.49

$

In Stock, Qty 11

0

13

Murray 7300432YP

AXLE PLATE, Swivel Wheel

$11.99

$

In Stock, only 1 left!

0

14

Murray 7100249YP

SPACER, Swivel Wheel Pivot

$7.99

$

In Stock, only 1 left!

0

15

Murray 7091527YP

SCREW, 5/16-18 x 1-1/4", Hex Head Cap, GR 5, YZ

$4.49

$

In Stock, only 4 left!

0

16

Murray 7100251YP

LEVER, Height Adjust, Swivel Wheel

$8.49

$

In Stock, only 4 left!

0

17

Murray 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0

18

Murray 7101198YP

PIN, Handle Adjust

$5.49

$

Usually ships in 2-12 days

0

19

Murray 7101200YP

SPRING, Compression

$4.49

$

Usually ships in 2-12 days

0

20

Murray 7101199YP

BUSHING, Handle Pin

$6.99

$

Usually ships in 2-12 days

0

21

Murray 7013864SM

LUBE FITTING, 3/16" Press Fit

$3.49

$

In Stock, Qty 12

0

22

Murray 7101380YP

BALL BEARING, 1-1/8" OD, Flange
(Superseded to 071579MA)

Note: (Not Illustrated)

$40.99

$

In Stock, only 1 left!

0
