BBRR 219 BS (7800671) - Bad Boy 21" Walk-Behind Mower (2010) Wheels & Height-of-Cut Group Parts Diagram

21" Walk-Behind Mower

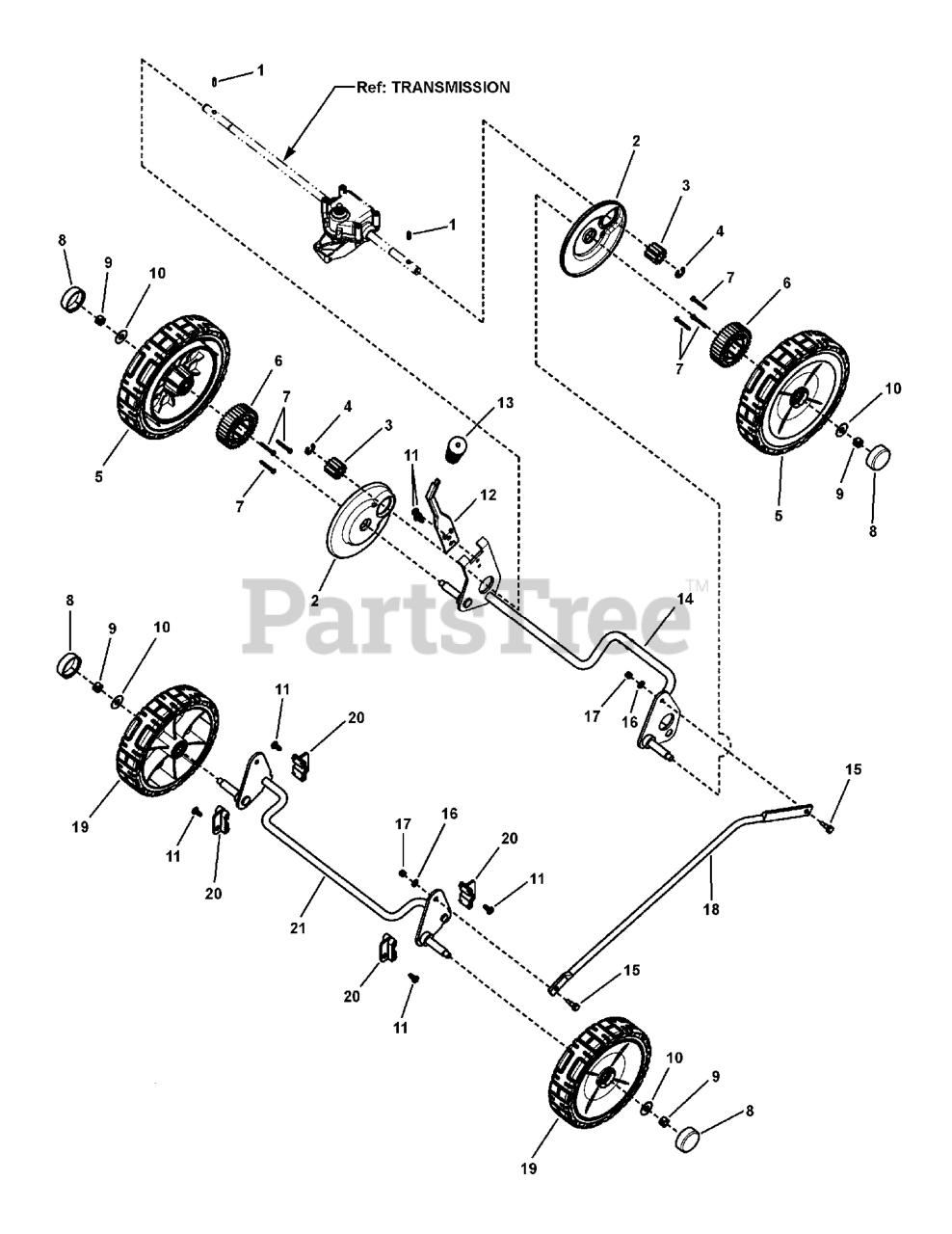

Wheels & Height-of-Cut Group Parts Diagram

  • Title
1

Murray 7100861YP

PIN, Axle

$4.99

$

In Stock, only 1 left!

0

2

Murray 7101367YP

SHIELD, Dust, 21" WBM, RD

$7.49

$

In Stock, only 2 left!

0

3

Murray 7100820YP

GEAR, Pinion

$

$

Not available

4

Murray 7014341YP

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

5

Murray 7500647YP

ASSEMBLY, Wheel, w/Bearing 9", Charcoal Gray

Note: (Includes Ref. No. 22)

$49.99

$

In Stock, only 2 left!

0

6

Murray 7100914YP

GEAR, External Wheel

$10.99

$

Usually ships in 2-12 days

0

7

Murray 7091196SM

SCREW, #8 x 1-1/4, Hex Washer Self-Tap, Hi-Lo

$4.99

$

Usually ships in 2-12 days

0

8

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

9

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

10

Murray 17X169MA

WASHER, 1" OD x .387 ID Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

11

Murray 7900067YP

SCREW, 1/4-20 x .550 Torx Self-Tap

$4.49

$

In Stock, Qty 20+

0

12

Murray 672278MA

LEVER, Spring, Height-Of-Cut

$12.99

$

Usually ships in 2-12 days

0

13

Murray 671297MA

GRIP, Height-Of-Cut

$6.49

$

In Stock, only 1 left!

0

14

Murray 7400275YP

WELDMENT, Rear Crossbar 21" WBM, RD, YZ

$110.99

$

In Stock, only 1 left!

0

15

Murray 7101774YP

BOLT, Shoulder, #10-24 Thread

$8.49

$

In Stock, only 2 left!

0

16

Murray 7091552SM

WASHER, .219 x .500 x .049 Flat, BL

$3.99

$

In Stock, Qty 16

0

17

Murray 7091290SM

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

18

Murray 7101430BQYP

ROD, Lifter Link, 21" WBM, RD

$16.99

$

Usually ships in 2-12 days

0

19

Murray 7500540YP

ASSEMBLY, Wheel, 8 x 2 Idle, Charcoal Gray

Note: (Includes Ref. No. 22)

$40.99

$

In Stock, only 2 left!

0

20

Murray 7101241YP

BUSHING, Front 21"

$6.99

$

In Stock, only 4 left!

0

21

Murray 7400276YP

WELDMENT, Front Crossbar 21" WBM, RD, YZ

$152.99

$

Usually ships in 2-12 days

0

22

Murray 7101380YP

BALL BEARING, 1-1/8" OD, Flange
(Superseded to 071579MA)

Note: (Not Illustrated)

$40.99

$

In Stock, only 1 left!

0
