BBRR 219 BS (7800671) - Bad Boy 21" Walk-Behind Mower (2010) Mower Deck Group Parts Diagram

21" Walk-Behind Mower

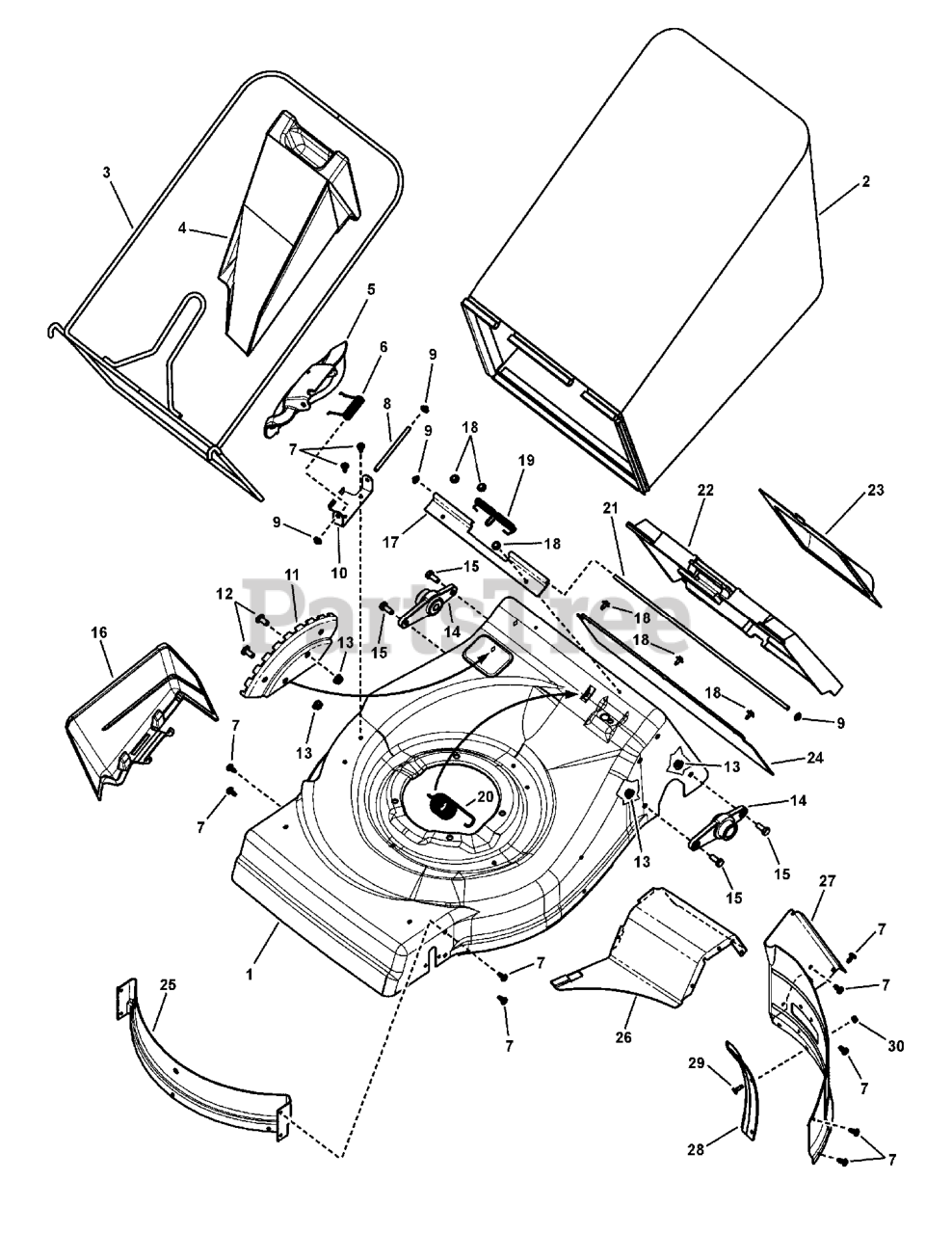

Mower Deck Group Parts Diagram

  • Title

1

Murray 7301050BQYP

DECK, 21" Rear Discharge, Non-Electric Start

$247.99

$

Usually ships in 2-12 days

0

2

Murray 7101304YP

GRASSBAG, 21" Rear Discharge

$119.99

$

In Stock, only 1 left!

0

3

Murray 7101303AYP

BAG FRAME, 21" RD WBM

$

$

Not available

4

Murray 071250MA

PLUG, Mulching

$97.99

$

Usually ships in 2-12 days

0

5

Murray 7101437YP

COVER, 21" Mulching

$20.99

$

Usually ships in 2-12 days

0

6

Murray 166X38MA

SPRING, Torsion, Chute

$4.99

$

In Stock, only 2 left!

0

7

Murray 7900067YP

SCREW, 1/4-20 x .550 Pan Head Self-Tap (Torx)

$4.49

$

In Stock, Qty 20+

0

8

Murray 7101471YP

ROD, Mulch Cover Pivot

$4.49

$

Usually ships in 2-12 days

0

9

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

10

Murray 7300590BQYP

BRACKET, Chute Deflector

$6.49

$

Usually ships in 2-12 days

0

11

Murray 7300587BQYP

INDEX PLATE, Height-Of-Cut, 21" WBM, RD

$12.99

$

Usually ships in 2-12 days

0

12

Murray 7091508SM

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5, YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

13

Murray 7091601SM

NUT, 5/16-18 Hex Flange lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

14

Murray 7501070YP

ASSEMBLY, Bearing Holder, 21" WBM, Rear Discharge

Note: (Includes Ref. No. 31)

$26.99

$

In Stock, only 2 left!

0

15

Murray 7091318SM

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

16

Murray 7101490YP

CHUTE, 21" Side Discharge

$43.99

$

In Stock, only 1 left!

0

17

Murray 071410MA

SPACER, Rear Door, 21" WBM

$7.99

$

Usually ships in 2-12 days

0

18

Murray 7091286YP

SCREW, #10-24 x .50 Hex Washer Self-Tap Sems

$4.99

$

In Stock, Qty 12

0

19

Murray 166X33MA

SPRING, Torsion

$6.99

$

In Stock, only 1 left!

0

20

Murray 7101434YP

SPRING, Extension, Height-Of-Cut Assist

$6.99

$

Usually ships in 2-12 days

0

21

Murray 7101314YP

ROD, Rear Door Pivot, 21" Rear Discharge

$6.99

$

In Stock, only 1 left!

0

22

Murray 071409MA

DOOR, 21" Black

$66.99

$

Usually ships in 2-12 days

0

23

Murray 7300723BQYP

TRANSMISSION COVER, Rear, 21" WBM

$34.99

$

Usually ships in 2-12 days

0

24

Murray 7101553YP

DEFLECTOR, Rear, 21" WBM, RD

$

$

Not available

25

Murray 7300585BQYP

BAFFLE, Front 21" WBM, RD
(Superseded to 7300585ZMA)

$82.99

$

Usually ships in 2-12 days

0

26

Murray 7300591BQYP

BAFFLE, Right Rear, 21" Walk-Behind-Mower, RD

$37.99

$

Usually ships in 2-12 days

0

27

Murray 7300589BQYP

BAFFLE, Left Rear, 21" Rear Discharge, WBM

$95.99

$

Usually ships in 2-12 days

0

28

Murray 7101502YP

BAFFLE, Extension, 21" RD WBM

$8.49

$

Usually ships in 2-12 days

0

29

Murray 7091711YP

BOLT, #10-24 x 5/8" Flat Head Square Neck, YZ
(Superseded to 7091283YP)

$4.49

$

In Stock, only 3 left!

0

30

Murray 7091290SM

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

31

Murray 7078243YP

BEARING, Ball

Note: (Not Illustrated)

$10.99

$

In Stock, Qty 18

0
