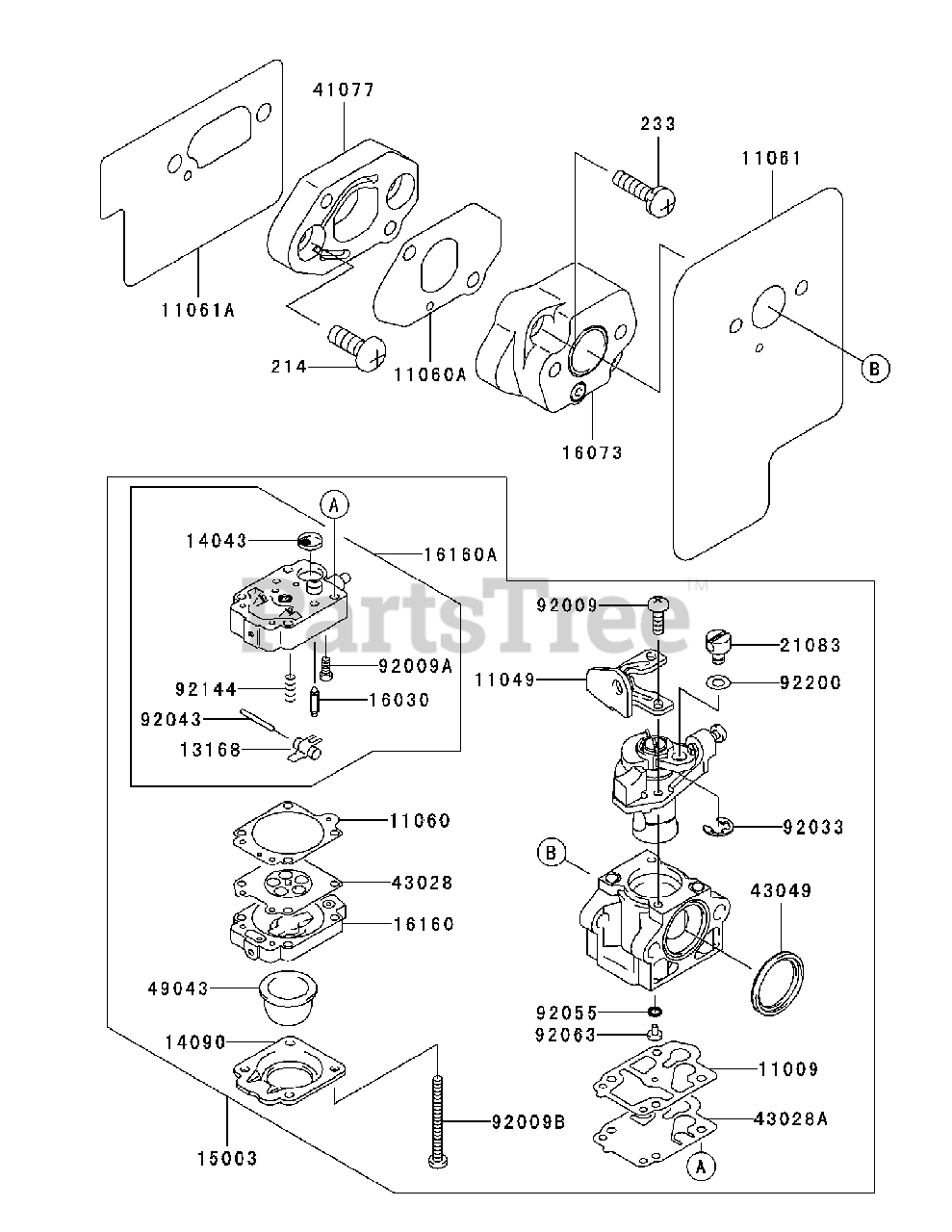

BB 40 (59AF335-150) - Cub Cadet Backpack Blower Kawasaki Carburetor Parts Diagram

Backpack Blower

Kawasaki Carburetor Parts Diagram

  • Title

11009

Cub Cadet KM-11009-2757

GASKET

$5.99

$

In Stock, Qty 5

0

11049

Cub Cadet KM-11049-2006

BRACKET

$15.99

$

Usually ships in 2-5 days

0

11060

Cub Cadet KM-11060-2111

GASKET

$4.49

$

In Stock, Qty 7

0

11060A

Cub Cadet KM-11060-2387

GASKET

$6.99

$

Usually ships in 2-5 days

0

11061

Cub Cadet KM-11061-2108

GASKET,INSULATOR=CARBURETOR

Note: NLA

$

$

Currently unavailable

11061A

Cub Cadet KM-11061-2109

GASKET,CYLINDER=ADAPTER

Note: NLA

$

$

Currently unavailable

13168

Cub Cadet KM-16055-2051

LEVER

$5.49

$

In Stock, only 3 left!

0

14043

Cub Cadet KM-14043-2051

FILTER

$3.49

$

In Stock, Qty 14

0

14090

Cub Cadet KM-14090-2017

COVER,PRIMER PUMP

$10.99

$

Usually ships in 2-5 days

0

15003

Cub Cadet KM-15003-2530

CARBURETOR-ASSY

$190.99

$

Usually ships in 2-5 days

0

16030

Cub Cadet KM-16030-2078

VALVE-FLOAT

$19.99

$

Usually ships in 2-5 days

0

16073

Cub Cadet KM-16073-2213

INSULATOR

$

$

Not available

16160

Cub Cadet KM-16160-2089

BODY

$37.99

$

Usually ships in 2-5 days

0

16160A

Cub Cadet KM-16160-2103

BODY

$38.99

$

Usually ships in 2-5 days

0

21083

Cub Cadet KM-21083-2073

ARM

$7.49

$

Usually ships in 2-5 days

0

41077

Cub Cadet KM-41077-2067

ADAPTER

$18.99

$

Usually ships in 2-5 days

0

43028

Cub Cadet KM-43028-2054

DIAPHRAGM

$25.99

$

In Stock, Qty 6

0

43028A

Cub Cadet KM-43028-2067

DIAPHRAGM

$9.49

$

In Stock, Qty 11

0

43049

Cub Cadet KM-43049-2060

PACKING

$5.99

$

Usually ships in 2-5 days

0

49043

Cub Cadet KM-49043-2067

PUMP-PRIMING

$11.99

$

In Stock, Qty 20+

0

92009

Cub Cadet KM-92009-2277

SCREW

$2.49

$

In Stock, only 2 left!

0

92009A

Cub Cadet KM-92009-2336

SCREW

$3.49

$

In Stock, Qty 5

0

92009B

Cub Cadet KM-92009-2337

SCREW

$3.49

$

In Stock, only 3 left!

0

92033

Cub Cadet KM-92033-2078

RING-SNAP

$1.99

$

In Stock, only 3 left!

0

92043

Cub Cadet KM-92043-2094

PIN

$2.49

$

In Stock, only 1 left!

0

92055

Cub Cadet KM-92055-2147

RING-O

$4.49

$

Usually ships in 2-5 days

0

92063

Cub Cadet KM-92063-2334

JET-MAIN,#60

$

$

Not available

92144

Cub Cadet KM-92144-2308

SPRING

$3.99

$

Usually ships in 2-5 days

0

92200

Cub Cadet KM-92200-2074

WASHER

$1.99

$

In Stock, Qty 5

0

214

Cub Cadet KM-214B0616

SCREW-PAN+-

$

$

Not available

233

Cub Cadet KM-233B0520

SCREW-PAN-WP+-

$

$

Not available
