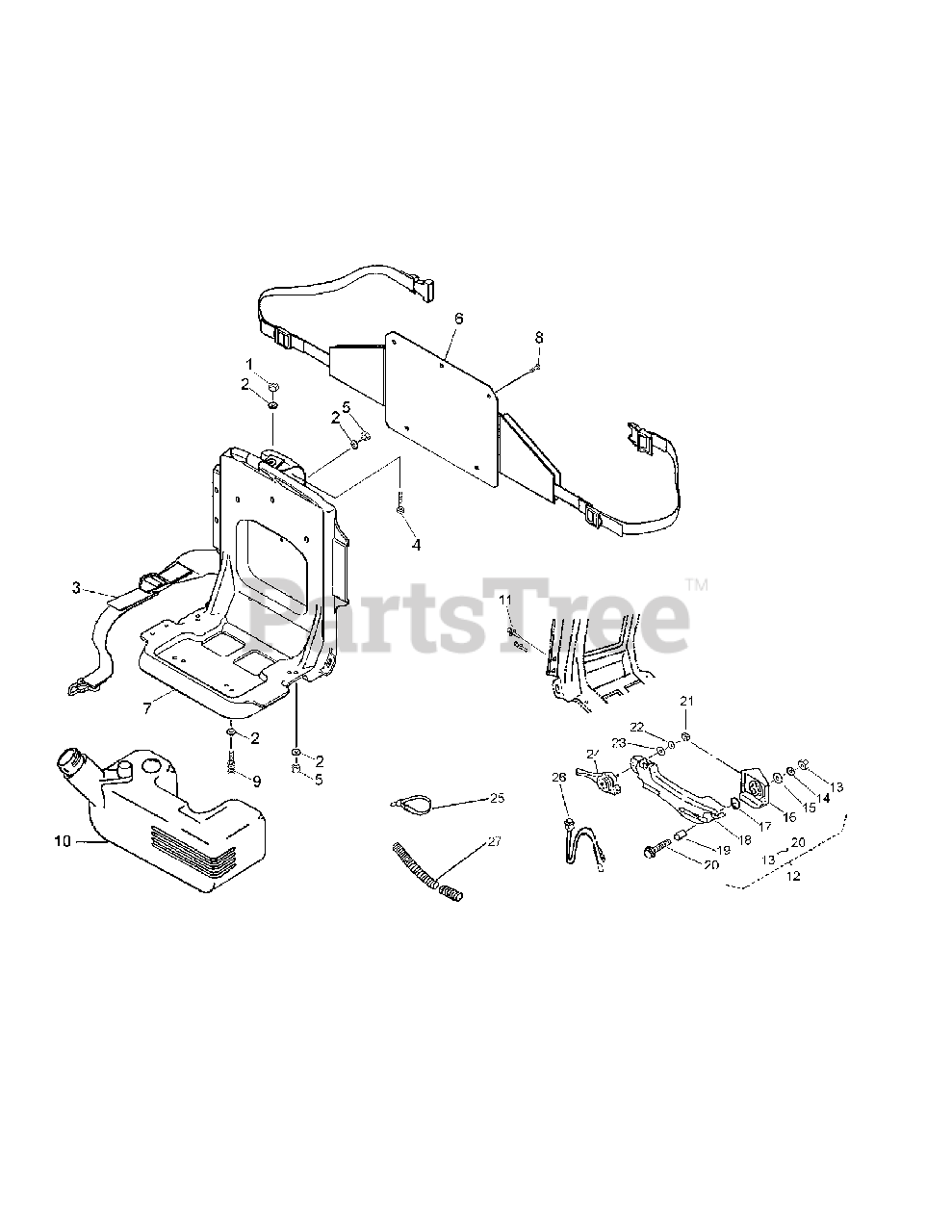

BB 40 (59AF335-150) - Cub Cadet Backpack Blower Frame Parts Diagram

Backpack Blower

Frame Parts Diagram

  • Title

1

Cub Cadet KZ-569L0600

FLANGE NYLON NUT M6

$

$

Not available

2

Cub Cadet KZ-68036-125

WASHER

$

$

Not available

3

Cub Cadet KZ-36063-196

SHOULDER BAND

$

$

Not available

4

Cub Cadet KZ-376L0616

TRUSS SCREW M6x16

$

$

Not available

5

Cub Cadet KZ-561L0600

U-HEXAGON NUT M6

$

$

Not available

6

Cub Cadet KZ-91027-128

KNAPSACK PAD

$

$

Not available

7

Cub Cadet KZ-36122-124

KNAPSACK FRAME

$

$

Not available

8

Cub Cadet KZ-68027-107

CLIP

$

$

Not available

9

Cub Cadet KZ-375L0616

SCREW(W/SW) M6x15

$

$

Not available

10

Cub Cadet KZ-36066-113

FUEL TANK

$

$

Not available

11

Cub Cadet KZ-374L0512

SCREW(W/SW,PW) M5x12

$

$

Not available

12

Cub Cadet KZ-51042-106

LEVER C.P. (INC. REF 13-20)

$62.99

$

Usually ships in 3-6 days

0

13

Cub Cadet KZ-511L0800

HEXAGON NUT M8

$

$

Not available

14

Cub Cadet KZ-661L0800

SPRING LOCK WASHER M8

$

$

Not available

15

Cub Cadet KZ-612L0800

PLAIN WASHER M8

$

$

Not available

16

Cub Cadet N/A

STAY

$

$

Currently unavailable

17

Cub Cadet KZ-211B2100

O-RING

$

$

Not available

18

Cub Cadet N/A

STAY

$

$

Currently unavailable

19

Cub Cadet KZ-61024-137

SPACER

$

$

Not available

20

Cub Cadet KZ-335L0825

FLANGE BOLT M8x25

$

$

Not available

21

Cub Cadet KZ-511L0500

HEXAGON NUT M5

$

$

Not available

22

Cub Cadet KZ-661L0500

SPRING LOCK WASHER M5

$

$

Not available

23

Cub Cadet KZ-613L0500

PLAIN WASHER M5

$

$

Not available

24

Cub Cadet KZ-91010-161

THROTTLE LEVER

$

$

Not available

25

Cub Cadet KZ-68028-102

WIRE BAND

$

$

Not available

26

Cub Cadet KZ-41004-129

STOP SWITCH

$

$

Not available

27

Cub Cadet KZ-41003-137

TUBE

$

$

Not available
