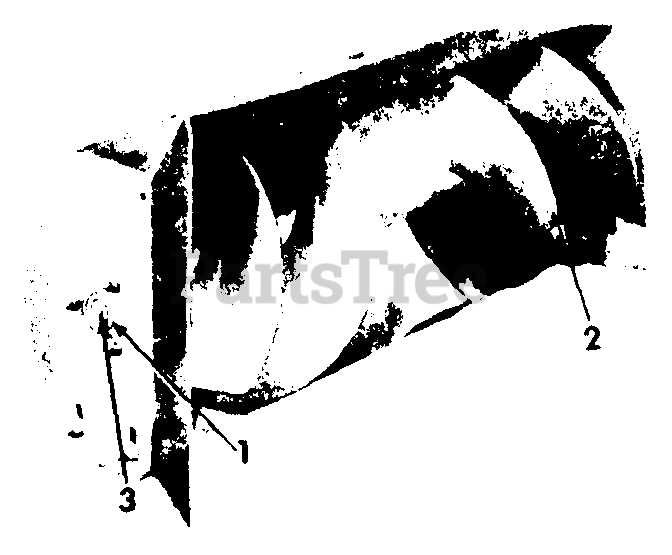

BB 36 - Cub Cadet Snow Thrower Attachment Rotor Part 2 Parts Diagram

Snow Thrower Attachment

Rotor Part 2 Parts Diagram

  • Title

1

475538-R91

BEARING W/SET SCREWS

$

$

Not available

16897-R1

BOLT, 5/16-18 X 3/4 C-Z SQ-NK CRG

Note: QTY-3- USED SERIAL NO. 5100 TO 7199- QTY-6- USED W/SERIAL NO. 5094 & BELOW-

$

$

Not available

18673-R1

BOLT, 5/16-18 X 1/2 C-Z SQ-NK CRG

Note: SERIAL NO. 5100 TO 7199-

$

$

Not available

Cub Cadet 120376

NUT, 5/16-18 C-Z HEX.

$

$

Currently unavailable

Cub Cadet 120214

WASHER 5/16 C-Z MED LOCK

Note: QTY -6- USED W/SERIAL NO. 5094 & BELOW- QTY -3- USED SERIAL NO. 5100 TO 7199-

$

$

Currently unavailable

2

Cub Cadet 395355-R1

ROTOR ASSY.

Note: FOR SERVICE REPLACEMENT OF 475535-R91 ALSO ORDER SHAFT 475536-R1 SHAFT, 475537-R1 AND ATTACHING PARTS

$

$

Currently unavailable

3

Cub Cadet 475536-R1

SHAFT, TAIL

$

$

Currently unavailable

Cub Cadet 475537-R1

SHAFT, DRIVE

$

$

Currently unavailable

443333

NUT, 5/16-18 C-Z HEX.

$

$

Not available

Cub Cadet 180113

SCREW, 5/16-18 X 3 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet 474644-R91

KIT,PRODUCT GRAPHICS

$

$

Currently unavailable
