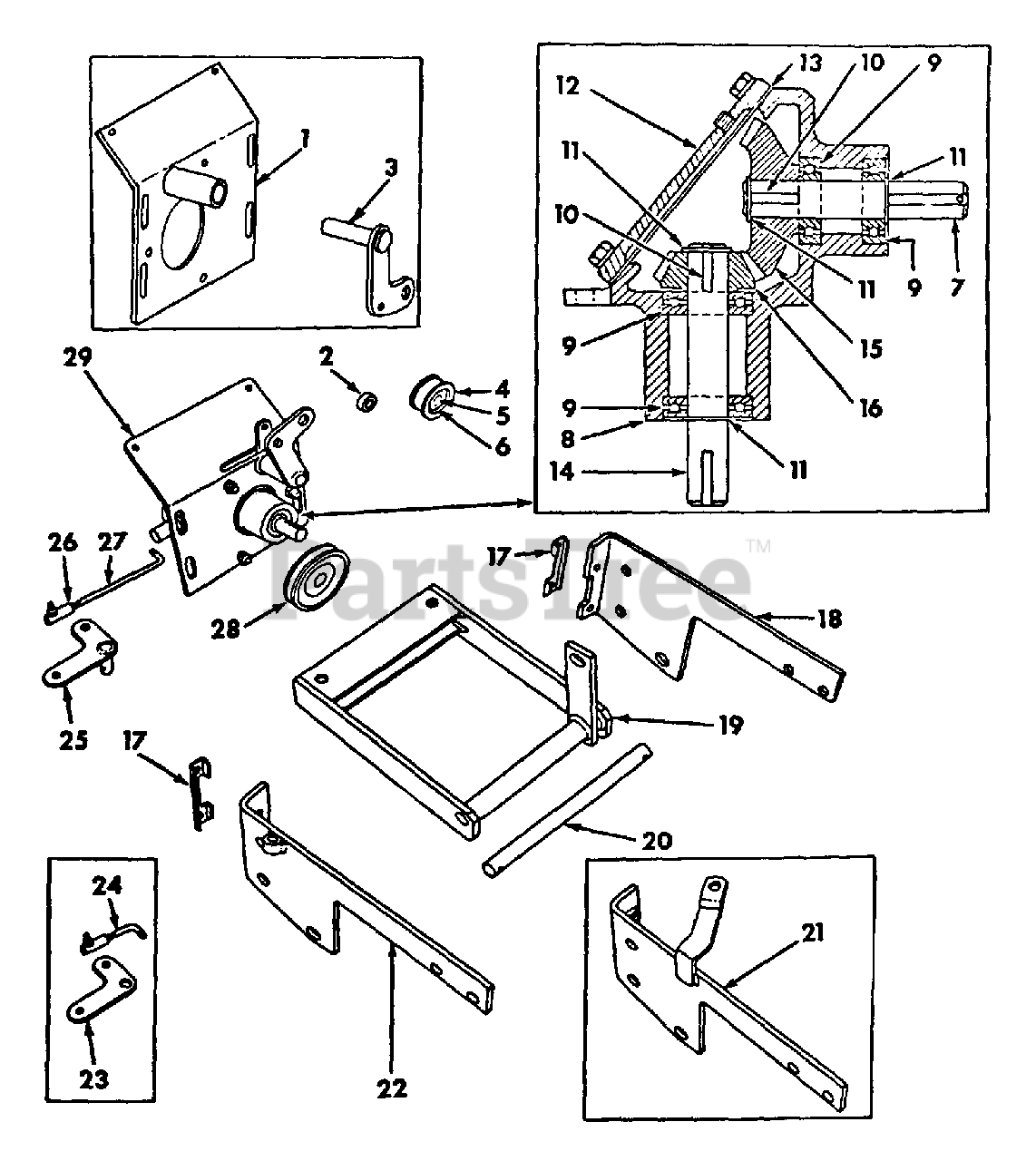

Front Power Take-Off -90 Degree Gear Box- Parts Diagram

  • Title

1

Cub Cadet 475568-R91

PLATE ASSY, FRONT

Note: UP TO SERIAL 5094

$

$

Currently unavailable

Cub Cadet 475569-R91

PLATE ASSY, FRONT

Note: SERIAL NO. 5100 TO 7199

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-180122

SCREW, 3/8-16 X 1 C-Z HEX-HD CAP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-446548

WASHER, 3/8 X 3/4 X .065 C-Z

$

$

Currently unavailable

Cub Cadet 120382

WASHER, 3/8 C-Z MED LOCK

$

$

Currently unavailable

2

Cub Cadet 474064-R1

SPACER

Note: SERIAL NO. 5094 & BELOW

$

$

Currently unavailable

Cub Cadet 475594-R1

SPACER

Note: SERIAL NO. 5100 TO 7199

$

$

Currently unavailable

3

Cub Cadet 475572-R91

ARM, IDLER

Note: SERIAL NO. 5094 & BELOW

$

$

Currently unavailable

4

Cub Cadet 475590-R1

IDLER

Note: UP TO SERIAL NO. 5094

$

$

Currently unavailable

Cub Cadet 475592-R91

IDLER ASSY

Note: SERIAL NO. 5100 TO 7199

$

$

Currently unavailable

Cub Cadet 271548

SCREW, 5/8-11 X 1-3/4 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-121574

WASHER, 5/8 C-Z MED LOCK
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 11

0

124589

NUT, 5/8-11 C-Z HEX.

$

$

Not available

5

Cub Cadet 571395-R91

BEARING ASSY, IDLER

Note: SERIAL NO. 5094 & BELOW

$

$

Currently unavailable

6

Cub Cadet IH-133213-R1

RING, IDLER SNAP

Note: SERIAL NO. 5094 & BELOW

$

$

Not available

7

Cub Cadet IH-475601-R1

SHAFT, OUTPUT

$

$

Not available

8

475596-R1

BOX GEAR

$

$

Not available

18475-R1

BOLT, 5/16-18 X 1-1/4 C-Z HEX-HD MACH

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet IH-475627-R91

BEARING, BALL

$

$

Not available

10

Cub Cadet IH-475642-R1

KEY, 3/16 X 11/16 SQ PARALLEL

$

$

Currently unavailable

11

Cub Cadet IH-269181-R1

RING, RETAINING SNAP
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

12

475597-R1

COVER GEAR BOX

$

$

Not available

Cub Cadet IH-444687

PLUG, 1/8-27 AUT0MOTIVE HEX-SOC-HD PIPE

$

$

Currently unavailable

180020

SCREW, 1/4-20 X 3/4 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

13

475598-R1

GASKET, GEAR BOX COVER

$

$

Not available

14

Cub Cadet 475605-R1

SHAFT, INPUT

$

$

Currently unavailable

15

Cub Cadet IH-485304-R1

GEAR, BEVEL

$

$

Not available

16

Cub Cadet IH-485305-R1

GEAR, BEVEL PINION

$

$

Not available

17

475571-R1

CLIP, LOCKING

Note: SERIAL NO. 5100 TO 7199

$

$

Not available

18

Cub Cadet 475563-R1

PLATE RH SIDE

$

$

Currently unavailable

180175

SCREW, 1/2-13 X 1-1/4 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-120378

NUT 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet 475573-R91

BRACKET ASSY, LIFT

$

$

Currently unavailable

20

Cub Cadet 475575-R1

SHAFT PIVOT

$

$

Currently unavailable

Cub Cadet IH-187988

PIN, 3/16 X 1-1/4 C-Z COTTER
(Superseded to 714-0142)

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 475559-R91

PLATE ASSY, LH SIDE

Note: SERIAL NO. 5094 & BELOW

$

$

Currently unavailable

17452-R1

BOLT, 1/2 X 1-1/4 C-Z HEX-HD MACH

$

$

Not available

Cub Cadet IH-120384

WASHER 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-120376

NUT, 1/2-13 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 475560-R91

PLATE ASSY LH SIDE

Note: SERIAL NO. 5100 TO 7199

$

$

Currently unavailable

17452-R1

BOLT 1/2-13 X 1-1/4 HEX-HD MACH

$

$

Not available

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-120378

NUT, 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 475582-R1

BELLCRANK

Note: SERIAL NO. 5094 & BELOW

$

$

Currently unavailable

Cub Cadet IH-120169

PIN, 5/32 X 1 C-Z COTTER

$

$

Not available

Cub Cadet 475584-R1

PIN, CLEVIS

$

$

Currently unavailable

Cub Cadet IH-120396

WASHER, 17/32 X 1-1/16 X 13 GA C-Z
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 475585-R1

LINK

Note: SERIAL NO. 5094 & BELOW

$

$

Currently unavailable

Cub Cadet IH-120367

NUT, 1/4-28 C-Z HEX.
(Superseded to 912-0138)

$

$

Not available

Cub Cadet IH-177923

PIN, 1/8 X 3/4 C-Z COTTER
(Superseded to 914-0474)

$

$

Not available

Cub Cadet IH-120380

WASHER 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-16559-R1

WASHER 17/64 X 5/8 X .049 C-Z
(Superseded to 936-3020)

$

$

Not available

25

Cub Cadet 475583-R91

BELLCRANK

Note: SERIAL NO. 5100 TO 7199

$

$

Currently unavailable

Cub Cadet IH-177923

PIN, 1/8 X 3/4 C-Z COTTER
(Superseded to 914-0474)

$

$

Not available

26

Cub Cadet IH-191474

JOINT, 1/4 BALL

$

$

Currently unavailable

27

Cub Cadet 475586-R1

LINK

Note: SERIAL NO. 51OO TO 7199

$

$

Currently unavailable

Cub Cadet 120637

NUT, 1/4-28 C-Z HEX.

$

$

Currently unavailable

Cub Cadet IH-177923

PIN, 1/8 X 3/4 C-Z COTTER
(Superseded to 914-0474)

$

$

Not available

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet 446179

WASHER, 1/4 X 1/2 X .049 C-Z

$

$

Currently unavailable

28

Cub Cadet 475641-R91

PULLEY, GEAR BOX

$

$

Currently unavailable

Cub Cadet 102582

SCREW, 5/16-18 X 3/8 HEX-SOC-HD CUP-PT SET

$

$

Currently unavailable

Cub Cadet IH-Q5024

KEY, 3/16 X 1 SQ PARALLEL

$

$

Currently unavailable

29

Cub Cadet 475569-R91

PLATE ASSY, FRONT

Note: SERIAL NOS 5100 TO 7199

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8 TYPE 5
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 6

0

Cub Cadet 180122

BOLT, 3/8 X 1 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-446548

WASHER,.375 X .750 X .051

$

$

Currently unavailable

Cub Cadet 120382

WASHER, 3/8 LOCK

$

$

Currently unavailable
