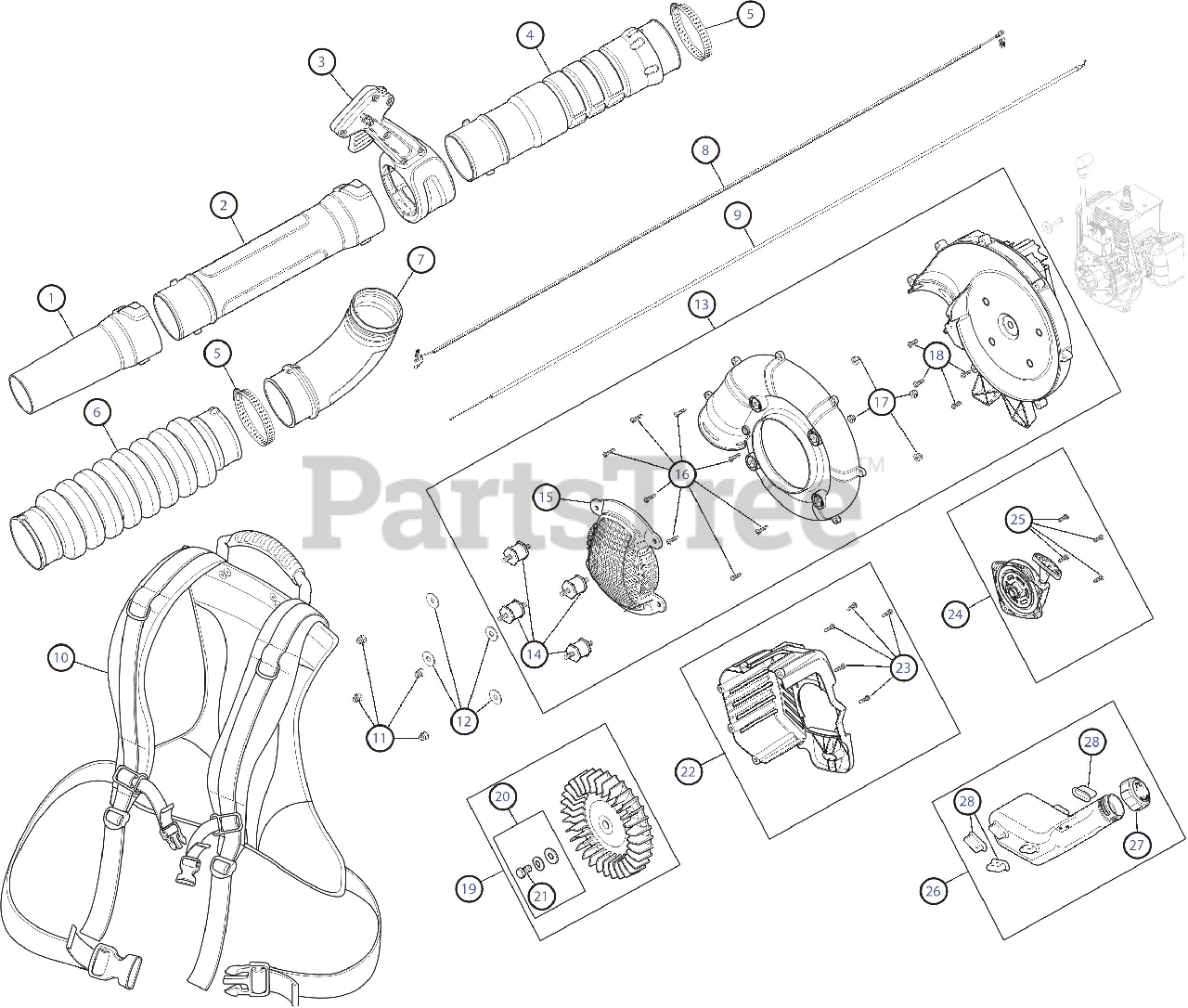

BB 230 (41BR2PEG812) - Cub Cadet Backpack Blower (2017) General Assembly Parts Diagram

Backpack Blower

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06000

Nozzle

$13.99

$

In Stock, only 2 left!

0

2

Cub Cadet 753-05971

Lower Blower Tube

$15.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-08718

Throttle Grip Assembly

$29.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 753-05991

Upper Blower Tube

$20.99

$

In Stock, only 1 left!

0

5

Cub Cadet 726-04080

Clamp

$11.99

$

In Stock, only 2 left!

0

6

Cub Cadet 753-05641

Flex Tube

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-05990

Elbow

$18.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-06994

Lead Wire

$7.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-06434

Throttle Cable

$8.49

$

In Stock, Qty 20+

0

10

Cub Cadet 751-15097

Harness

$70.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 912-0442

Nut
(Superseded to 712-0442)

$

$

Not available

12

Cub Cadet 791-182678

Washer
(Superseded to 4150)

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-08719

Impeller Housing Assembly (Incl. 14 - 18)

$33.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-05648

Insulator Mount

$14.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 753-05713

Intake Cover

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 2952

Nut

$2.99

$

In Stock, only 1 left!

0

18

Cub Cadet 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

19

Cub Cadet 753-05651

Impeller (Incl. 20 & 21)

$31.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-04482

Impeller Hardware (Incl. 21)

$9.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-06600

Housing Assembly (Incl. 23)

$

$

Not available

23

Cub Cadet 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet 753-06596

Starter Assembly (Incl. 25)

$16.99

$

In Stock, Qty 6

0

25

Cub Cadet 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

26

Cub Cadet 753-08721

Fuel Tank Assembly (Incl. 27 & 28)

$25.99

$

In Stock, only 1 left!

0

27

Cub Cadet 791-182529

Fuel Cap

$21.99

$

In Stock, only 4 left!

0

28

Cub Cadet 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0
