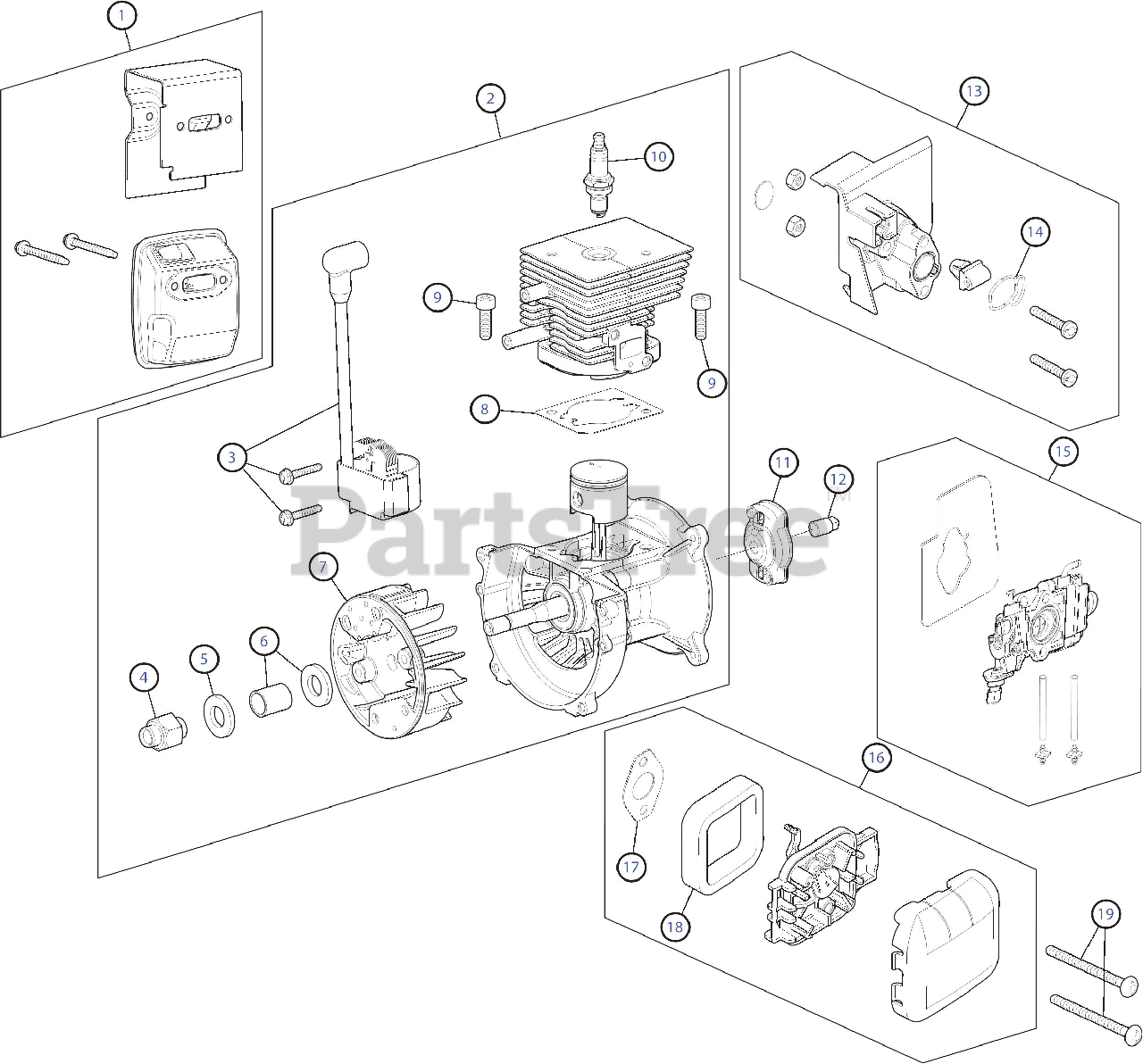

BB 230 (41BR2PEG812) - Cub Cadet Backpack Blower (2017) Engine Assembly Parts Diagram

Backpack Blower

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06418

Muffler Assembly
(Superseded to 753-08745)

$26.99

$

In Stock, only 2 left!

0

2

Cub Cadet 753-08720

Shortblock Assembly (Incl. 3 - 10)

$91.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-06443

Module Assembly

$26.99

$

In Stock, Qty 6

0

4

Cub Cadet 753-05705

Flywheel Adaptor

$9.49

$

In Stock, only 1 left!

0

5

Cub Cadet 936-0326

Washer
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 753-05707

Bushing

$3.49

$

In Stock, only 2 left!

0

7

Cub Cadet 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

8

Cub Cadet 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

9

Cub Cadet 710-04715

Screw

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-08216

Spark Plug
(Superseded to 794-00097)

$6.99

$

In Stock, Qty 9

0

11

Cub Cadet 753-06091

Pawl Assembly

$9.49

$

In Stock, Qty 5

0

12

Cub Cadet 753-06104

Electric Start Adaptor

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 753-06189

Insulator Assembly (Incl. 14)

$7.99

$

In Stock, only 2 left!

0

14

Cub Cadet 753-06184

Insulator O-Ring

$3.49

$

In Stock, Qty 19

0

15

Cub Cadet 753-06442

Carburetor Assembly

$39.99

$

In Stock, only 1 left!

0

16

Cub Cadet 753-05634

Air Cleaner Assembly (Incl. 17 and 18)

$16.99

$

In Stock, only 1 left!

0

17

Cub Cadet 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-04517

Air Cleaner Screw

$5.49

$

In Stock, Qty 20+

0
