BB 230 (41AR2PEG912) - Cub Cadet Backpack Blower (2015) General Assembly Parts Diagram

Backpack Blower

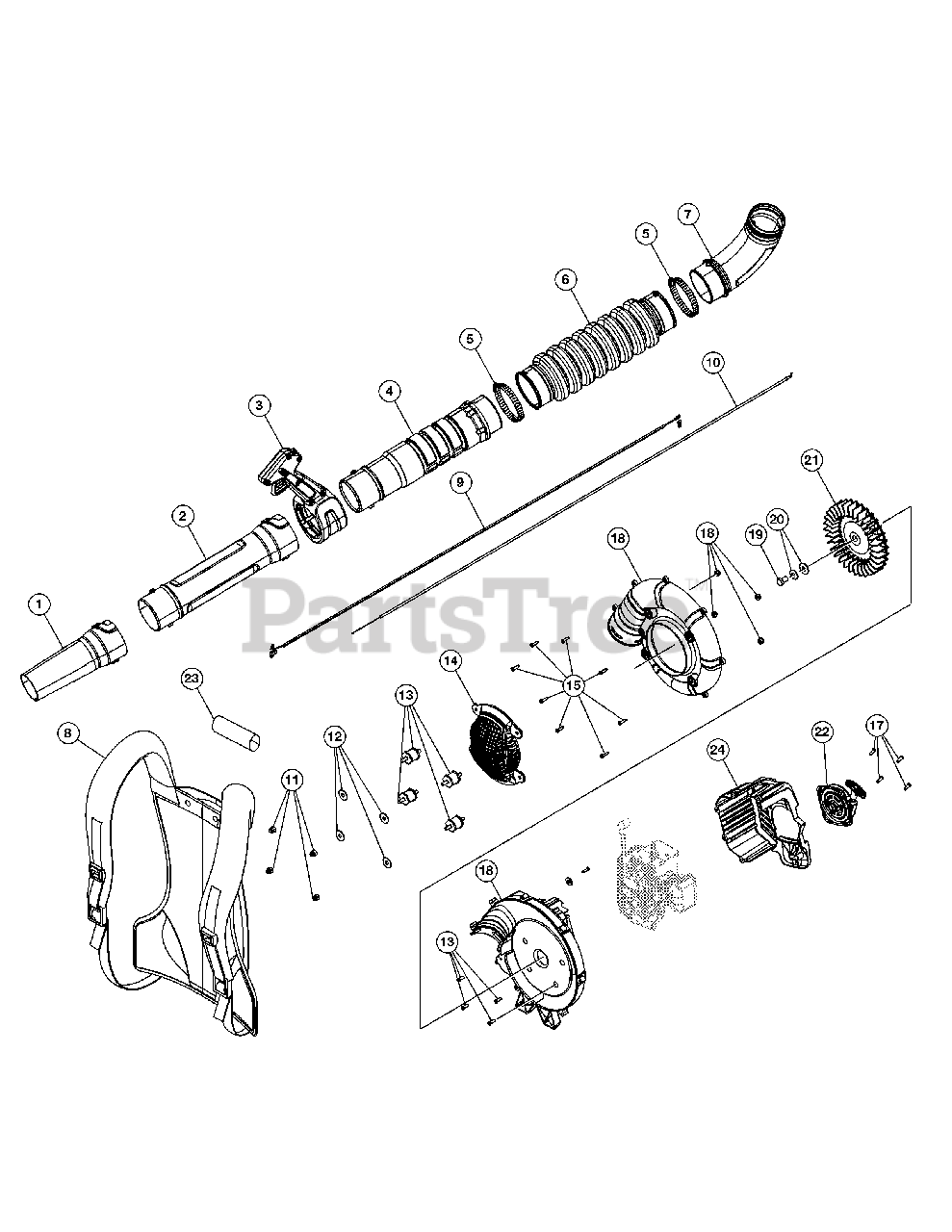

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06000

Nozzle

$13.99

$

In Stock, only 2 left!

0

2

Cub Cadet 753-05971

Lower Blower Tube

$15.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-06993

Throttle Grip Assembly

$14.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 753-05991

Upper Blower Tube

$20.99

$

In Stock, only 1 left!

0

5

Cub Cadet 726-04080

Clamp

$11.99

$

In Stock, only 2 left!

0

6

Cub Cadet 753-05641

Flex Tube

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-05990

Elbow

$18.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-05645

Harness

$108.99

$

In Stock, Qty 5

0

9

Cub Cadet 753-06994

Lead Wire

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-06995

Throttle Cable

$8.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 791-05647

Nut

$

$

Currently unavailable

12

Cub Cadet 791-182678

Washer
(Superseded to 4150)

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-05648

Insulator Mount

$14.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-05713

Intake Cover

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 712-0324

Nut

$3.99

$

In Stock, Qty 17

0

17

Cub Cadet 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

18

Cub Cadet 753-05650

Impeller Housing Assembly (Incl. 13 - 17)

$74.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-04482

Impeller Hardware (Incl. 19)

$9.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 753-05651

Impeller (Incl. 19 & 20)

$31.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-06996

Starter Assembly (Incl. 17)
(Superseded to 753-06829)

$20.99

$

In Stock, Qty 20+

0

23

Cub Cadet 753-06345

Grip

$5.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 753-06997

Housing

$12.99

$

Usually ships in 3-6 days

0
