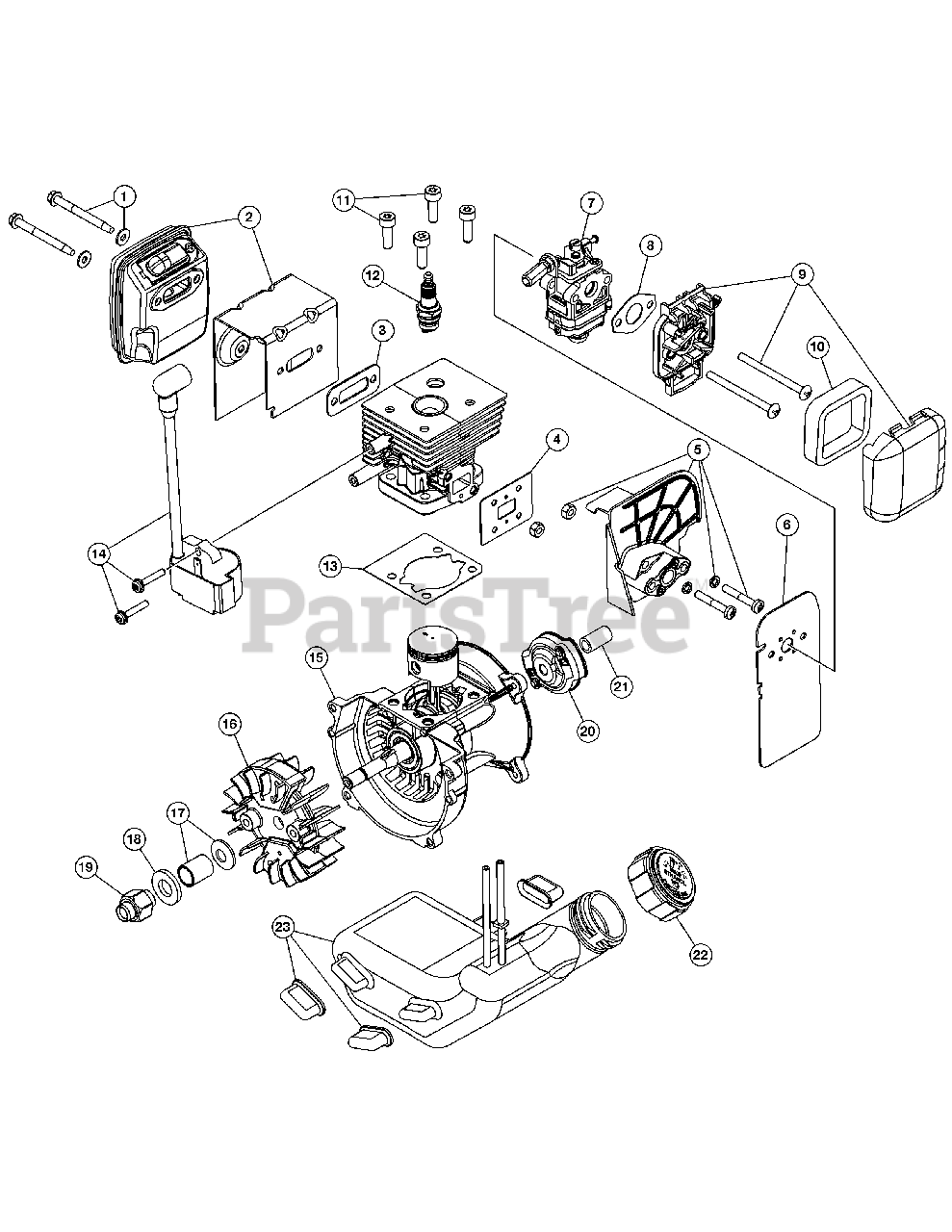

BB 230 (41AR2PEG912) - Cub Cadet Backpack Blower (2013) Engine Assembly Parts Diagram

Backpack Blower

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06294

Muffler Screw

$2.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-06970

Muffler Assembly (Incl. 1 & 3)

$

$

Not available

3

Cub Cadet 753-04619

Muffler Gasket

$9.49

$

In Stock, only 3 left!

0

4

Cub Cadet 753-06353

Gasket

$3.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-06354

Insulator Assembly (Incl. 4)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-06989

Heat Shield

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-06990

Carburetor

$44.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 791-181752

Air Cleaner Assembly (Incl. 10)

$25.99

$

In Stock, Qty 5

0

10

Cub Cadet 791-181757

Air Cleaner Filter

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-04715

Screw

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

13

Cub Cadet 753-06360

Cylinder Gasket

$

$

Not available

14

Cub Cadet 753-06443

Ignition Module

$26.99

$

In Stock, Qty 6

0

15

Cub Cadet 753-06991

Shortblock Assembly (Incl. 12 - 14, 16 - 19)

$89.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 753-06499

Flywheel
(Superseded to 753-06246)

$21.99

$

In Stock, only 1 left!

0

17

Cub Cadet 753-05707

Bushing

$3.49

$

In Stock, only 2 left!

0

18

Cub Cadet 936-0326

Washer (qty 2)
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 753-05705

Flywheel Adapter

$9.49

$

In Stock, only 1 left!

0

20

Cub Cadet 753-06091

Pawl Assembly

$9.49

$

In Stock, only 2 left!

0

21

Cub Cadet 753-06104

Electric Start Adapter

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 753-06857

Fuel Cap

$7.99

$

In Stock, only 4 left!

0

23

Cub Cadet 753-06992

Fuel Tank Assembly (Incl. 22)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 49MESCBP912

Power Start Drill Bit
(Superseded to 49MASCBP953)

Note: Optional, Not shown

$20.99

$

In Stock, only 3 left!

0

Cub Cadet 49MRBESY912

120V Power Start

Note: Optional, Not shown

$

$

Not available
