BB 2280 - Jonsered Blower/Vacuum (2013-11) CARBURETOR Parts Diagram

Blower/Vacuum

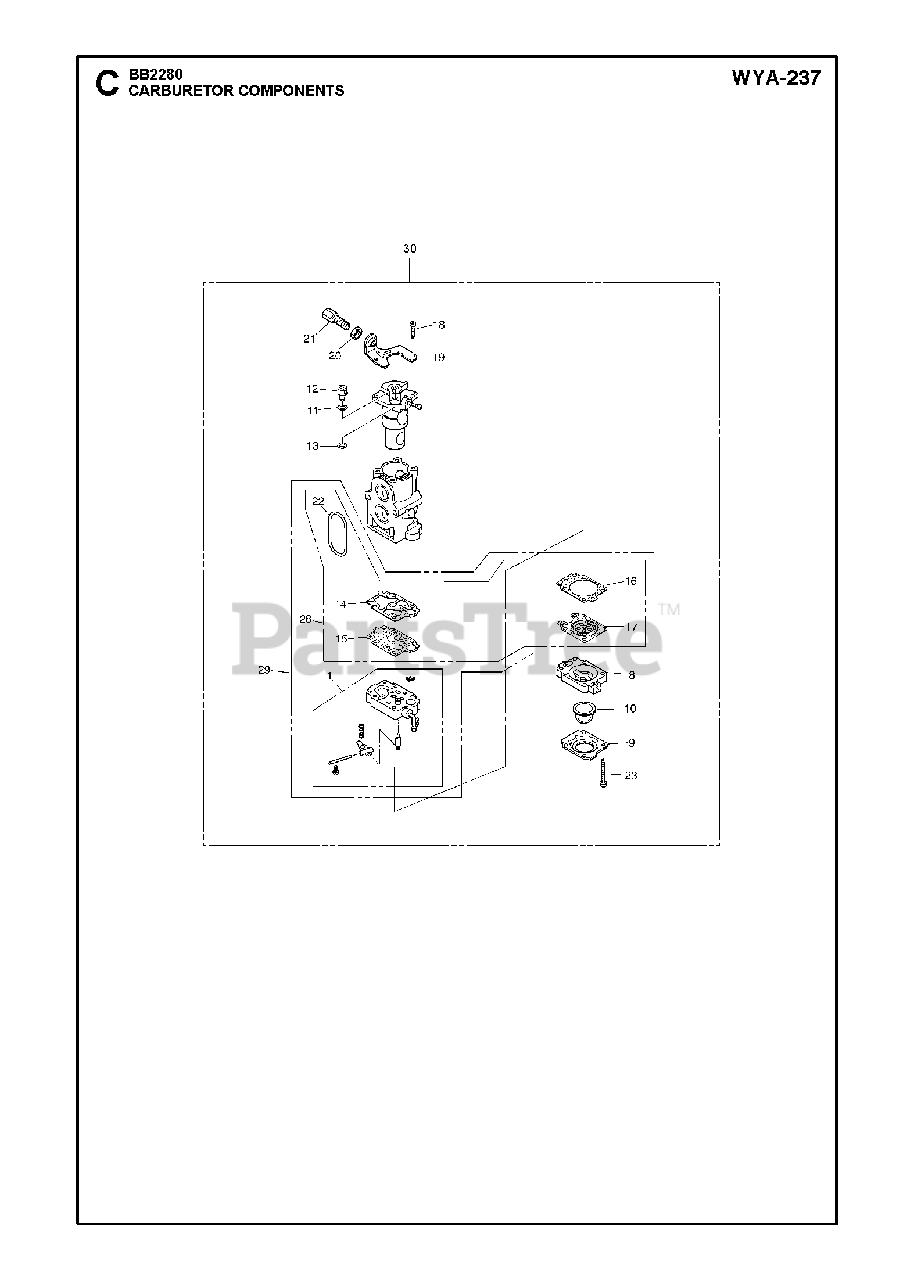

CARBURETOR Parts Diagram

  • Title

1

Jonsered 544363501

RP_BODY-A-PUMP

Note: . 29 30

$74.99

$

Usually ships in 3-10 days

0

8

Jonsered 506740901

BODY

Note: . 30

$34.99

$

Usually ships in 3-10 days

0

9

Jonsered 506741001

COVER
(Superseded to 516543901)

Note: . 30

$6.49

$

In Stock, Qty 8

0

10

Jonsered 505306701

PUMP

Note: . 30

$9.49

$

Usually ships in 3-10 days

0

11

Jonsered 506746101

WASHER
(Superseded to 521360401)

Note: . 30

$3.99

$

In Stock, only 1 left!

0

12

Jonsered 506741201

SWIVEL
(Superseded to 516597701)

Note: . 30

$9.99

$

Usually ships in 3-10 days

0

13

Jonsered 506738601

RING
(Superseded to 516523601)

Note: . 30

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 506745101

GASKET

Note: . 28 29 30

$10.99

$

Usually ships in 3-10 days

0

15

Jonsered 506689801

DIAPHRAGM

Note: . 28 29 30

$6.49

$

In Stock, Qty 5

0

16

Jonsered 506740801

GASKET

Note: . 28 29 30

$10.99

$

In Stock, only 3 left!

0

17

Jonsered 505306801

DIAPHRAGM

Note: . 28 29 30

$18.99

$

Usually ships in 3-10 days

0

18

Jonsered 505307901

SCREW
(Superseded to 516528701)

Note: . 30

$4.99

$

In Stock, only 2 left!

0

19

Jonsered 506746001

BRACKET
(Superseded to 521359901)

Note: . 30

$12.99

$

Usually ships in 3-10 days

0

20

Jonsered 506612601

NUT
(Superseded to 510487401)

Note: . 30

$4.99

$

Usually ships in 3-10 days

0

21

Jonsered 506741301

ADJUSTER
(Superseded to 521756001)

Note: . 30

$7.49

$

In Stock, only 1 left!

0

22

Jonsered 521631501

RING
(Superseded to 544365101)

Note: . 28 29 30

$7.99

$

In Stock, Qty 6

0

23

Jonsered 506741101

SCREW

Note: . 30

$4.99

$

In Stock, only 1 left!

0

28

Jonsered 511459501

GASKET KIT

Note: . 29 30

$53.99

$

Usually ships in 3-10 days

0

29

Jonsered 511459601

REBUILD KIT

Note: . 30

$120.99

$

In Stock, only 2 left!

0

30

Jonsered 581177001

Carburetor Assembly

$97.99

$

Usually ships in 3-10 days
