BB 2250 - Jonsered Blower/Vacuum (2009-09) STARTER Parts Diagram

Blower/Vacuum

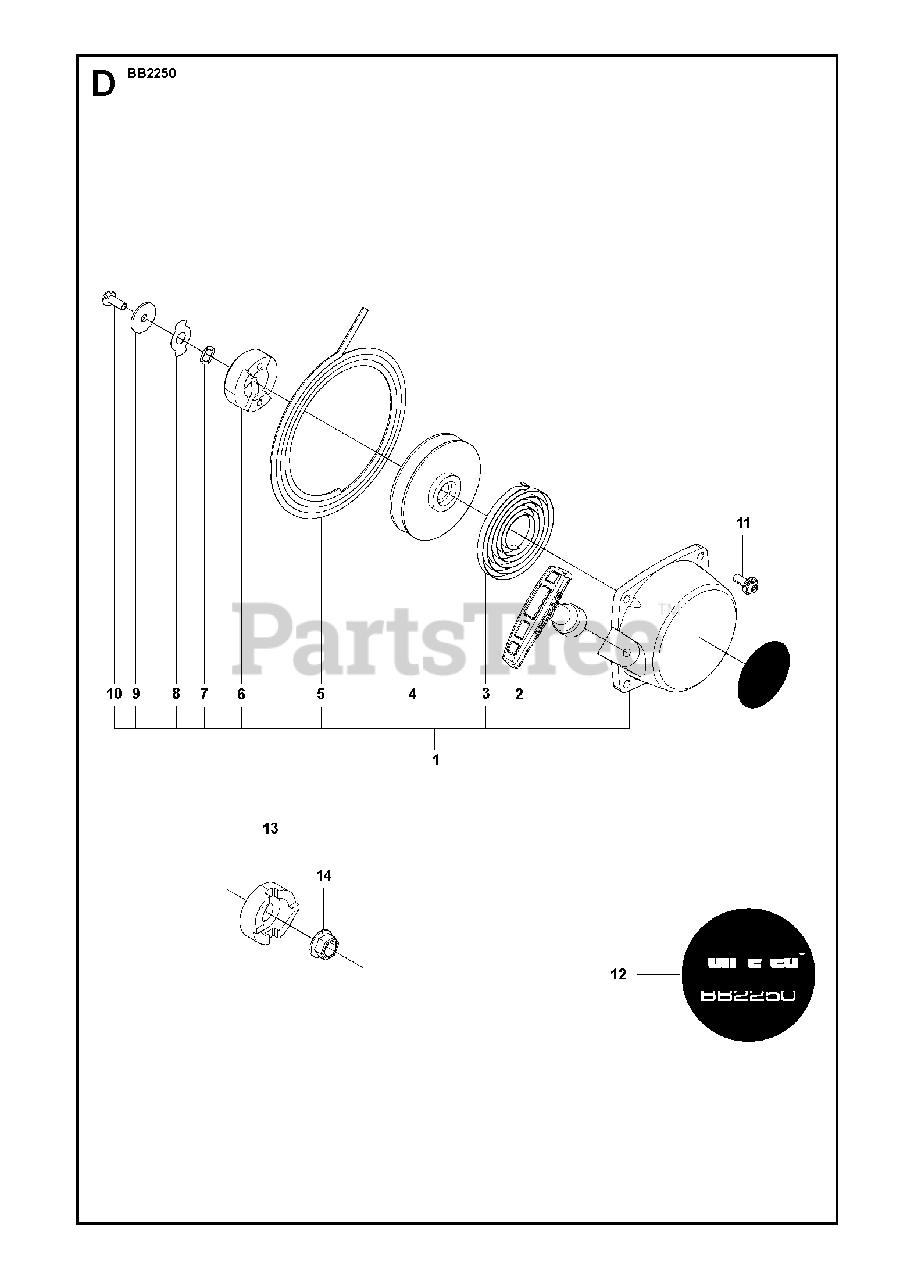

STARTER Parts Diagram

  • Title

1

Jonsered 502843101

STARTER ASSY

$43.99

$

Usually ships in 3-10 days

0

2

Jonsered 502843201

KNOB

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

3

Jonsered 502843301

SPRING

Note: . 1

$11.99

$

In Stock, only 2 left!

0

4

Jonsered 502843401

STARTER PULLEY

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

5

Jonsered 502843501

CHORD
(Superseded to 516316801)

Note: . 1

$

$

Not available

6

Jonsered 504554801

STARTER PAWL

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

7

Jonsered 502843601

WASHER

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

8

Jonsered 504554901

RETAINER
(Superseded to 516348601)

Note: . 1

$

$

Not available

9

Jonsered 502843701

WASHER
(Superseded to 516348701)

Note: . 1

$

$

Not available

10

Jonsered 502843801

SCREW

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

11

Jonsered 502843901

SCREW

$6.49

$

In Stock, only 1 left!

0

12

Jonsered 573936201

LABEL

$4.46

$

Usually ships in 3-10 days

0

13

Jonsered 516348901

PULLEY (RPLS 148775210)
(Superseded to 513288801)

$11.99

$

In Stock, Qty 5

0

14

Jonsered 544259901

NUT
(Superseded to 516313901)

$6.49

$

In Stock, only 4 left!

0
