BB 185H42 LT (960120028-01) - Poulan Pro Lawn Tractor (2005) Steering Assembly Parts Diagram

Lawn Tractor

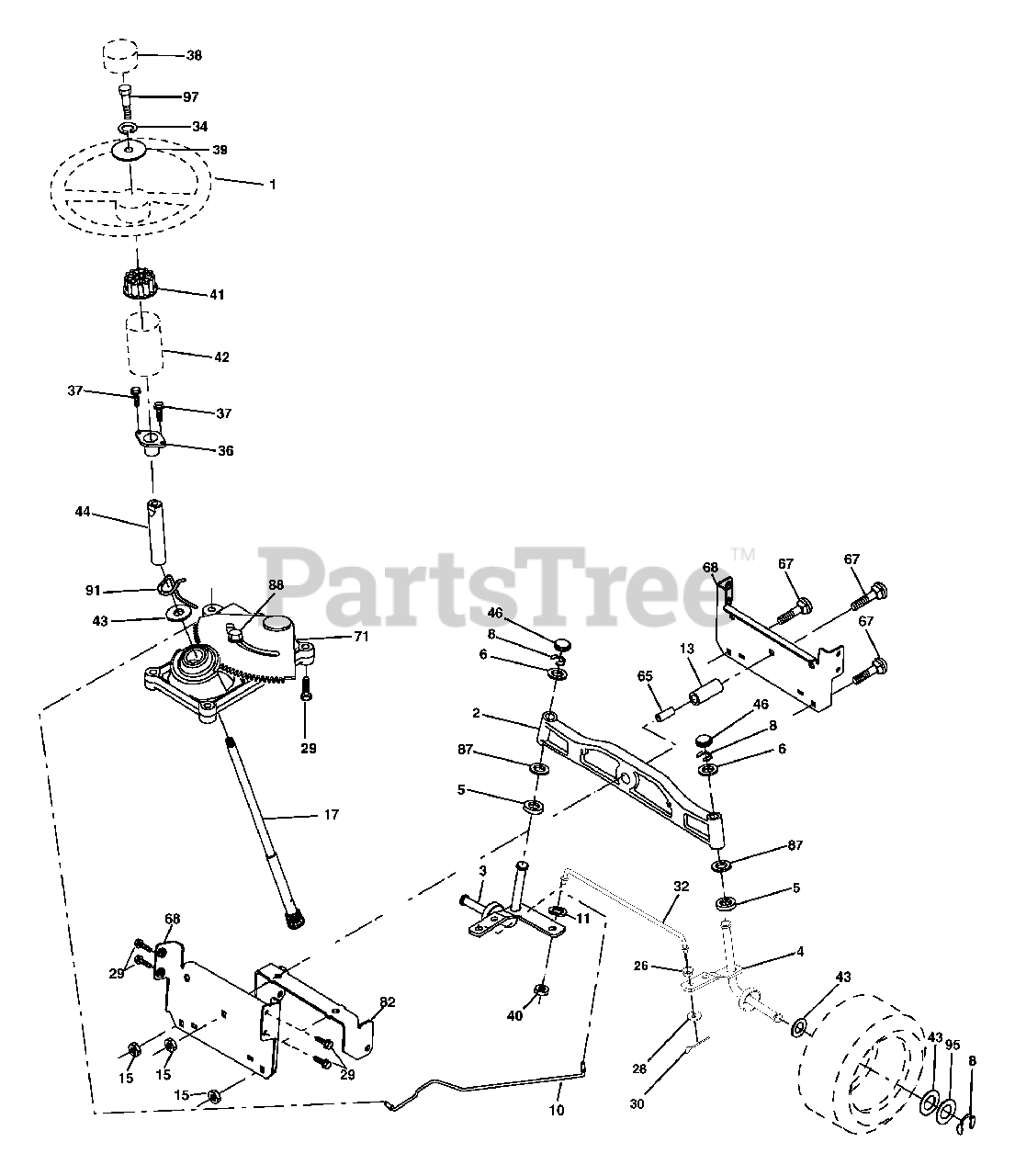

Steering Assembly Parts Diagram

  • Title
1

Electrolux/AYP 186093X428

Wheel Steering
(Superseded to 584462001)

$

$

Not available

2

Electrolux/AYP 184706

Axle Asm
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 169840

Spindle Asm LH
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 169839

Spindle Asm RH
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 6266H

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 15

0

6

Electrolux/AYP 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

8

Electrolux/AYP 12000029

Ring Klip #t5304-75
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 175121

Link Drag
(Superseded to 532175121)

$68.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 10040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 136518

Spacer Brg Axle Front
(Superseded to 532136518)

$9.99

$

Usually ships in 3-10 days

0

15

Murray 145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 190753

Shaft Asm Steering
(Superseded to 532190753)

$

$

Not available

26

Electrolux/AYP 126847X

Bushing Link Drag
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 19131416

Washer 13/32 x 7/8 x 16 Ga.
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 17000612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

30

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 192757

Rod Tie
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

34

Electrolux/AYP 10040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

36

Murray 155099

Bushing Strg
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

37

Electrolux/AYP 152927

Screw
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 186095X428

Insert Cap Strg Wh
(Superseded to 532194603)

$53.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 19113812

Washer 11/32 ID x 2-3/8 OD 12 Ga.
(Superseded to 819113812)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 73540600

Crownlock nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 186737

Adaptor Wheel Strg
(Superseded to 587738905)

$9.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 145054X428

Boot Steering Dash
(Superseded to 532169633)

$

$

Not available

43

Electrolux/AYP 121749X

Washer 25/32 x 1 1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 190752

Extension Steering Shaft
(Superseded to 532190752)

$17.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 121232X

Cap Spindle Fr Top Blk
(Superseded to 532121232)

$4.99

$

In Stock, Qty 8

0

65

Electrolux/AYP 160367

Spacer Brace Axle
(Superseded to 532414736)

$6.99

$

In Stock, Qty 6

0

67

Electrolux/AYP 72110618

Bolt RDHD SQNK 3/8-16 x 2 1/4
(Superseded to 872110618)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 175146

Steering Asm
(Superseded to 532175146)

$182.99

$

In Stock, only 3 left!

0

68

Electrolux/AYP 169827

Axle, Brace
(Superseded to 532169827)

$21.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 169835

Bracket Susp Chassis Front
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 173966

Washer Flat .781 x 1 1/2 x .14
(Superseded to 532173966)

$7.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 175118

Bolt Shoulder 7/16-20 unc
(Superseded to 532175118)

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 175553

Clip Steering
(Superseded to 532175553)

$13.99

$

In Stock, only 1 left!

0

95

Electrolux/AYP 188967

Washer Harden .739 x 1.637 x .060
(Superseded to 532188967)

$4.99

$

In Stock, Qty 20+

0

97

Electrolux/AYP 74780564

Bolt 5/16-18 unc x 4" L Gr. 5
(Superseded to 532428982)

$4.99

$

Usually ships in 3-10 days

0
