BAG-3813 BA (GB3) - Honda Grass Catcher for 38" Cutter Deck (SN: GB3-0000001 - GB3-9999999) CHUTER (BAG-3813) Parts Diagram

Grass Catcher for 38" Cutter Deck

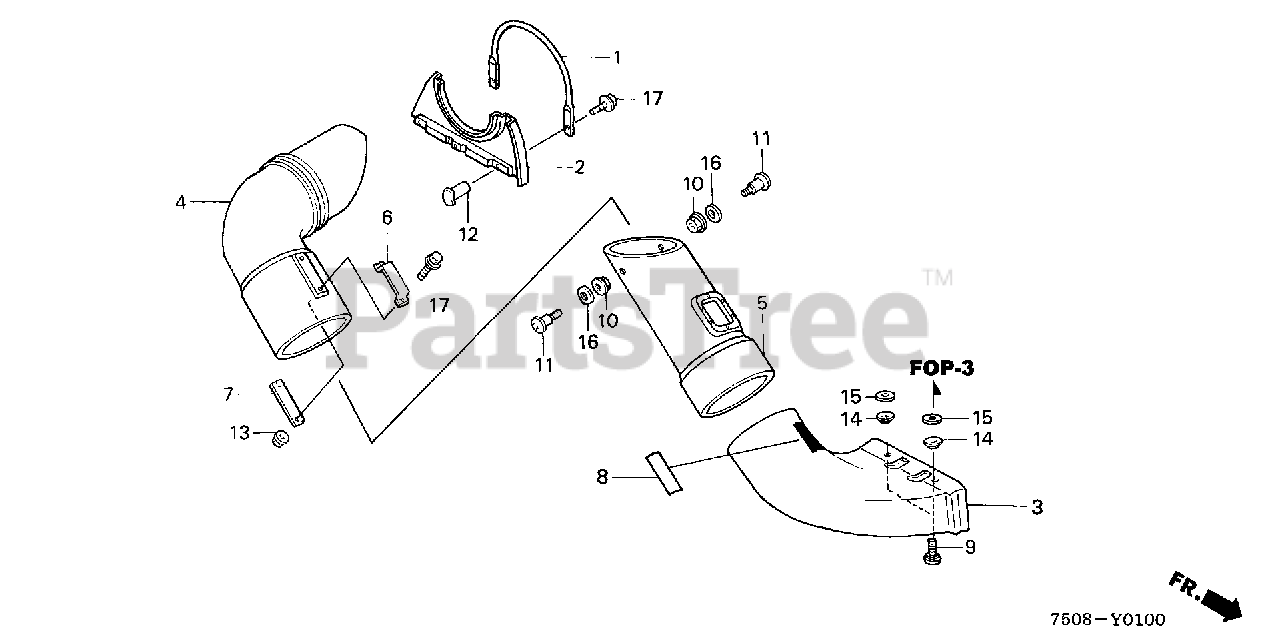

CHUTER (BAG-3813) Parts Diagram

  • Title

1

Honda 82112-751-801

SUPPORT, CHUTE

$39.99

$

Usually ships in 3-6 days

0

2

Honda 82114-751-800

SEAL

$

$

Not available

3

Honda 82311-750-920

CHUTE (LOWER)

$

$

Not available

4

Honda 82312-751-801

SEE PART DETAILS - PRI; CHUTE (UPPER)

$87.99

$

Usually ships in 3-6 days

0

5

Honda 82315-751-801

SEE PART DETAILS - PRI; CHUTE, MIDDLE

$

$

Not available

6

Honda 82317-751-800

HANDLE, CHUTE

$

$

Not available

7

Honda 82318-751-800

BASE, HANDLE

$7.49

$

Usually ships in 3-6 days

0

8

Honda 82319-751-800

LABEL, CHUTE (E)

$

$

Currently unavailable

8

Honda 82319-751-900

LABEL, CHUTE

$

$

Not available

9

Honda 90101-750-920

BOLT, SPECIAL (8X20)

$2.99

$

In Stock, only 4 left!

0

10

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

11

Honda 90116-751-800

BOLT, CHUTE

$6.49

$

Usually ships in 3-6 days

0

12

Honda 90306-751-800

NUT, PIPE (6MM)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

14

Honda 90525-751-800

WASHER (8X24)

$6.49

$

Usually ships in 3-6 days

0

15

Honda 90543-750-881

SEE PART DETAILS - PRI; WASHER, LOCK (5/16)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

17

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0
