B75 K3 SD (EV4000) - Honda Outboard Engine, Made in Japan (SN: EV4000-100000 - EV4000-9999999) SHIFT SHAFT + CARRYING HANDLE Parts Diagram

Outboard Engine, Made in Japan

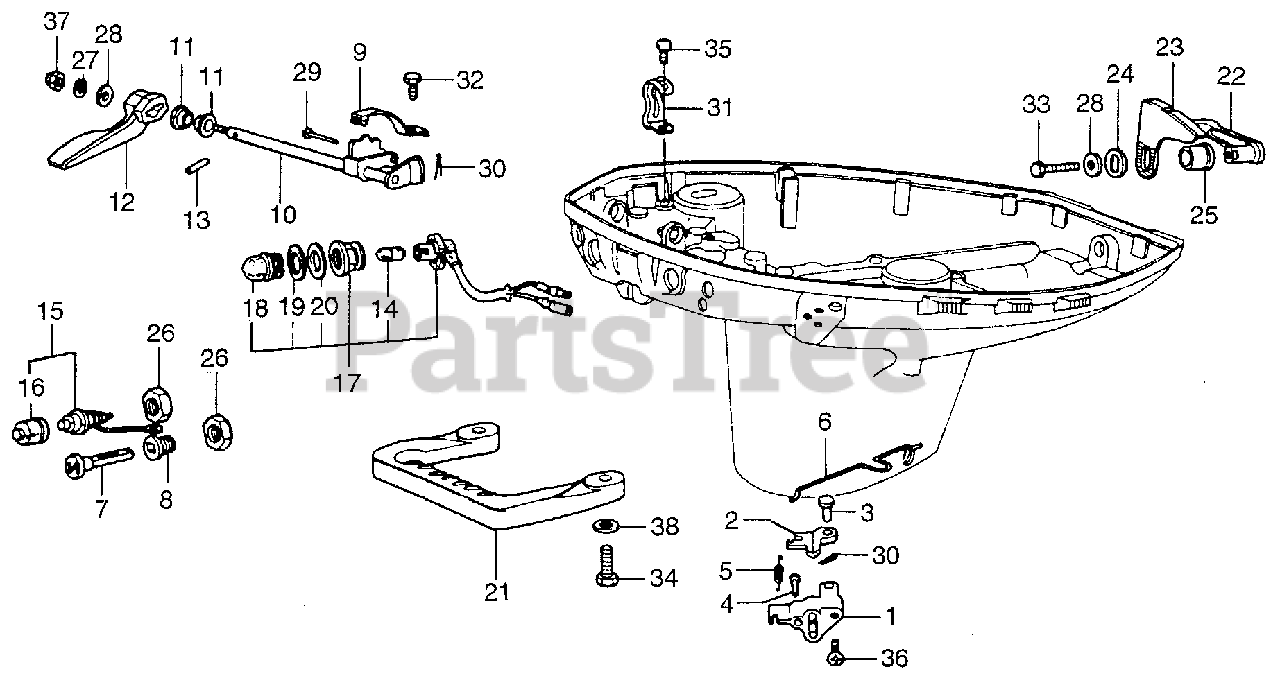

SHIFT SHAFT + CARRYING HANDLE Parts Diagram

  • Title

1

Honda 17710-921-020KA

SEE PART DETAILS - PRI; CONNECTOR, FUEL *NH8* (DARK GRAY) (NOT AVAILABLE)

$25.99

$

Usually ships in 3-6 days

0

2

Honda 17721-921-000

ARM, FUEL STOP (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 17722-921-000

PIN (6X15) (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 17723-921-000

SHAFT, FUEL STOP

$

$

Not available

5

Honda 17724-921-000

SPRING, FUEL STOP (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 17725-921-000

ROD, FUEL STOP (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 17951-921-030

KNOB, CHOKE

$14.99

$

Usually ships in 3-6 days

0

8

Honda 17953-921-010

GUIDE, CHOKE KNOB

$7.49

$

Usually ships in 3-6 days

0

9

Honda 24210-921-000

SPRING, CLICK

$

$

Not available

10

Honda 24610-935-030

SHAFT, SHIFT

$

$

Not available

11

Honda 24621-921-010

BUSH, SHAFT

$6.49

$

In Stock, only 1 left!

0

12

Honda 24701-921-040N

LEVER, GEARSHIFT *PB1* (DARK BLUE) (NOT AVAILABLE)

$24.99

$

Usually ships in 3-6 days

0

13

Honda 24705-921-000

PIN, SHIFT LEVER

$2.99

$

Usually ships in 3-6 days

0

14

Honda 34902-259-000

SEE PART DETAILS - PRI; BULB, DASH (12V3.4W) (IMASEN)

$2.99

$

In Stock, Qty 6

0

15

Honda 36100-921-023

SWITCH, ENGINE

$

$

Not available

16

Honda 36101-935-003

CAP, BUTTON (N/A: USE P/N 36100-921-000)

$

$

Currently unavailable

17

Honda 37210-935-015

SEE PART DETAILS - PRI; LAMP, INDICATOR (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

18

Honda 37211-935-005

LENS (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 37212-935-005

GASKET, LENS

$

$

Not available

20

Honda 37213-935-005

WASHER, SPECIAL

$

$

Not available

21

Honda 50281-921-000N

HANDLE, CARRYING *PB1* (DARK BLUE)

$37.99

$

Usually ships in 3-6 days

0

22

Honda 63201-935-000N

LEVER, COVER LOCK *PB1* (DARK BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 63202-935-000

HOOK, COVER LOCK (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 63203-935-000

WASHER, COVER LOCK

$3.99

$

Usually ships in 3-6 days

0

25

Honda 63205-920-000

BUSH, COVER LOCK

$6.49

$

In Stock, only 1 left!

0

26

Honda 90302-921-000

NUT, HEX. (16MM)

$5.99

$

In Stock, only 1 left!

0

27

Honda 90407-920-000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 2 left!

0

28

Honda 90512-921-010

SEE PART DETAILS - PRI; WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 90754-921-010

PIN (5X17)

$11.99

$

Usually ships in 3-6 days

0

30

Honda 90756-921-000

PIN, COTTER (1.6MM)

$1.99

$

In Stock, Qty 5

0

31

Honda 91401-935-000

CLIP, WIRE

$

$

Not available

32

Honda 92101-06012-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 92101-06016-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 92000-08032-4J

BOLT, HEX. (8X32) (NOT AVAILABLE)

$

$

Currently unavailable

35

Honda 93500-05008-0B

SEE PART DETAILS - PRI; SCREW, PAN (5X8)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 93600-06016-49

SCREW, FLAT (6X16)

$

$

Currently unavailable

37

Honda 94021-06020

SEE PART DETAILS - PRI; NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

38

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0
