B75 K3 LD (EV4000) - Honda Outboard Engine, Made in Japan (SN: EV4000-100000 - EV4000-9999999) SWIVEL CASE + SWIVEL SHAFT Parts Diagram

Outboard Engine, Made in Japan

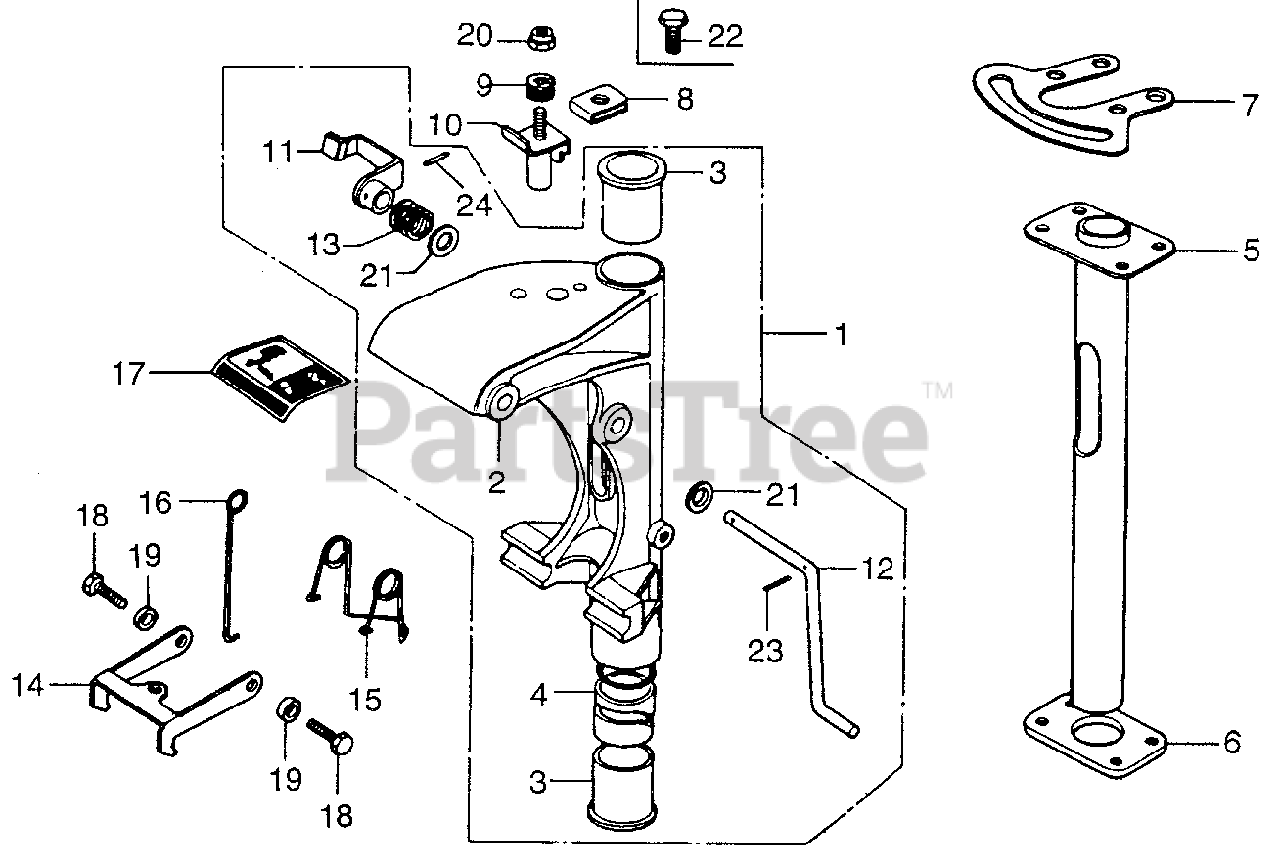

SWIVEL CASE + SWIVEL SHAFT Parts Diagram

  • Title
1

Honda 50200-935-611N

CASE ASSY., SWIVEL *PB1* (DARK BLUE)

$

$

Not available

2

Honda 50201-935-320N

SEE PART DETAILS - PRI; CASE, SWIVEL *PB1* (DARK BLUE)

$

$

Not available

3

Honda 50202-921-340

BUSH, SWIVEL CASE (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 50203-935-300

SEE PART DETAILS - PRI; BUSH, SWIVEL CASE CENTER (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

5

Honda 50221-921-060

SHAFT, SWIVEL (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 50222-921-000

FLANGE (LOWER)

$

$

Not available

7

Honda 50231-921-010

PLATE, FRICTION

$46.99

$

Usually ships in 3-6 days

0

8

Honda 50232-921-010

SHOE, FRICTION

$

$

Not available

9

Honda 50233-921-000

SPRING, FRICTION (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 50240-935-000

STATOR, FRICTION

$

$

Currently unavailable

11

Honda 50260-921-310

LEVER, TILT (N/A: SEE ASSEMBLY)

$

$

Not available

12

Honda 50272-921-310

LINK, L. TILT (NOT AVAILABLE)

$

$

Not available

13

Honda 50273-921-300

SPRING, TILT

$

$

Currently unavailable

14

Honda 50401-921-050

HOOK, REVERSE LOCK

$

$

Currently unavailable

15

Honda 50403-921-040

SPRING, HOOK RETURN

$

$

Currently unavailable

16

Honda 50404-921-040

ROD, RELEASE (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 87535-921-600

PLATE, SETTING CAUTION

$

$

Currently unavailable

18

Honda 90016-920-000

BOLT, FLANGE (6X12)

$2.99

$

In Stock, only 3 left!

0

19

Honda 90103-921-000

COLLAR (6MM) (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 90303-935-000

NUT, FRICTION (6MM) (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 90511-921-000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94305-20203

PIN, SPRING (2X20) (NOT AVAILABLE)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94305-40143

PIN, SPRING (4X14)

$1.99

$

In Stock, only 1 left!

0
