B75 K2 LD (EV4000) - Honda Outboard Engine, Made in Japan (SN: EV4000-100000 - EV4000-9999999) GEAR CASE + EXTENSION CASE Parts Diagram

Outboard Engine, Made in Japan

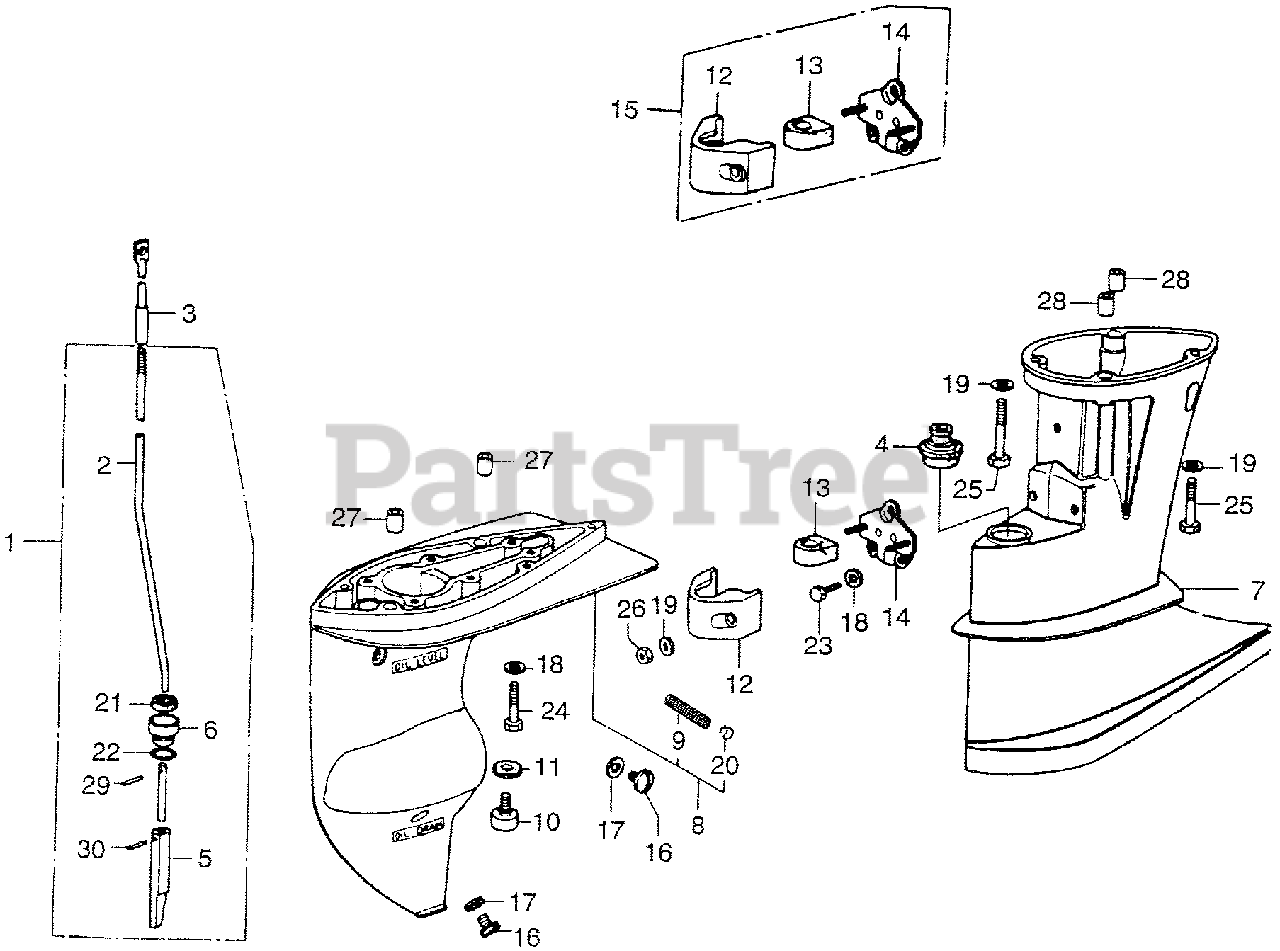

GEAR CASE + EXTENSION CASE Parts Diagram

  • Title

1

Honda 24310-935-700

ROD, SHIFT (NOT AVAILABLE)

$

$

Currently unavailable

1

Honda 24310-935-000

ROD, SHIFT (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 24311-935-700

ROD, SHIFT (LONG)

$

$

Currently unavailable

2

Honda 24311-935-300

ROD, SHIFT (SHORT)

$

$

Currently unavailable

3

Honda 24312-921-020

JOINT, CHANGE ROD (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 24313-921-003

GROMMET, ROD

$

$

Not available

5

Honda 24341-ZV4-300

SEE PART DETAILS - PRI; ROD, PUSH

$

$

Not available

6

Honda 24343-921-300

HOLDER, SEAL (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

7

Honda 40201-935-700N

CASE, EXTENSION *PB1* (DARK BLUE)

$

$

Not available

7

Honda 40201-935-000N

CASE, EXTENSION *PB1* (DARK BLUE)

$

$

Not available

8

Honda 41100-935-020N

SEE PART DETAILS - PRI; CASE, GEAR *PB1* (DARK BLUE)

$782.99

$

Usually ships in 3-6 days

0

9

Honda 41104-921-320

SCREEN, WATER

$11.99

$

Usually ships in 3-6 days

0

10

Honda 41106-881-000

SEE PART DETAILS - PRI; METAL, ANODE

Note: Use from Engine SN 3001342.

$

$

Not available

11

Honda 41107-935-000

RUBBER, INSULATE (NOT AVAILABLE)

Note: Use from Engine SN 3001342.

$

$

Currently unavailable

12

Honda 50121-921-050N

HOUSING, SETTING (LOWER) *PB1* (DARK BLUE)

Note: Use up to Engine SN 3001290.

$

$

Currently unavailable

12

Honda 50121-935-000N

HOUSING, SETTING (LOWER) *PB1* (DARK BLUE) (NOT AVAILABLE)

Note: Use from Engine SN 3001291.

$

$

Currently unavailable

13

Honda 50151-935-000

RUBBER, SETTING (LOWER)

Note: Use from Engine SN 3001291.

$

$

Currently unavailable

14

Honda 50152-935-000

PLATE, SETTING (LOWER)

Note: Use from Engine SN 3001291.

$

$

Currently unavailable

15

Honda 50160-935-305N

SETTING (LOWER) *PB1* (DARK BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 90105-921-000

BOLT, OIL CHECK

$8.99

$

Usually ships in 3-6 days

0

17

Honda 90475-703-000

WASHER C (8MM)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

19

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

20

Honda 90855-921-300

PLUG, SEALING (10MM)

$3.99

$

In Stock, only 1 left!

0

21

Honda 91253-921-003

SEAL, WATER (6MM)

$16.99

$

Usually ships in 3-6 days

0

22

Honda 91304-KK3-830

SEE PART DETAILS - PRI; O-RING (9.4X2.4)

$3.49

$

Usually ships in 3-6 days

0

23

Honda 92101-06012-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 92101-06040-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X40)

$

$

Not available

25

Honda 92101-08050-4J

SEE PART DETAILS - PRI; BOLT, HEX. (8X50)

$6.99

$

Usually ships in 3-6 days

0

26

Honda 94002-08490-0S

NUT, HEX. (8MM)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 94301-10140

SEE PART DETAILS - PRI; PIN A, DOWEL (10X14)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 94305-25122

PIN, SPRING (2.5X12)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 96220-25118

ROLLER (2.5X11.8)

$0.99

$

Usually ships in 3-6 days

0
