B75 K2 LD (EV4000) - Honda Outboard Engine, Made in Japan (SN: EV4000-100000 - EV4000-9999999) FUEL PUMP + COVER Parts Diagram

Outboard Engine, Made in Japan

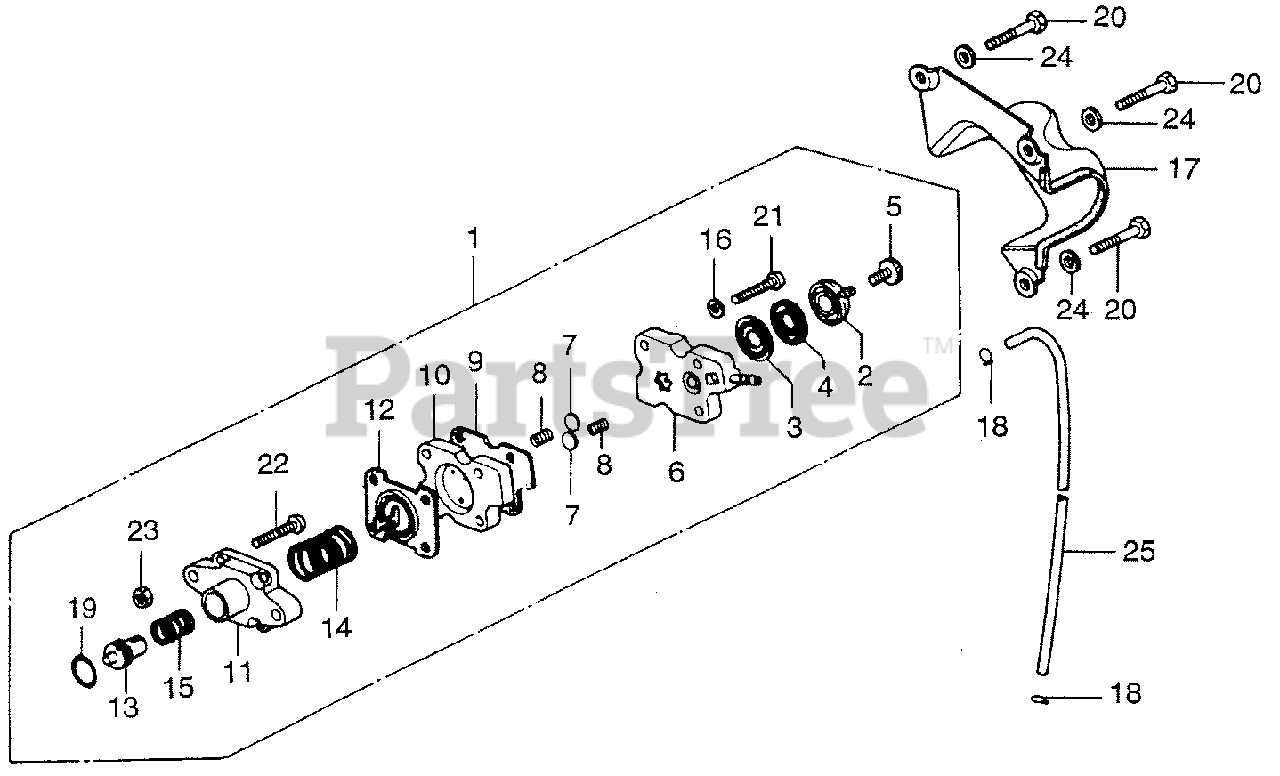

FUEL PUMP + COVER Parts Diagram

  • Title

1

Honda 16700-935-325

SEE PART DETAILS - PRI; PUMP ASSY., FUEL (NOT AVAILABLE)

$

$

Not available

2

Honda 16701-921-000

BODY, FILTER (NOT AVAILABLE)

$11.99

$

Usually ships in 3-6 days

0

3

Honda 16702-921-000

SCREEN (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16703-921-000

GASKET, SCREEN (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16704-921-000

SCREW, CAP (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16705-921-000

CAP (N/A: SEE ASSEMBLY) (ALT. PNO: 16700-935-325)

$

$

Currently unavailable

7

Honda 16706-921-000

VALVE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16707-921-000

SPRING, VALVE (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16708-921-000

GASKET, VALVE (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

10

Honda 16709-921-000

BODY (UPPER)

$

$

Currently unavailable

11

Honda 16710-921-000

BODY (LOWER) (N/A: SEE ASSEMBLY) (ALT. PNO: 16700-935-325)

$

$

Currently unavailable

12

Honda 16711-921-000

DIAPHRAGM (N/A: SEE ASSEMBLY) (ALT. PNO: 16700-935-325)

$

$

Currently unavailable

13

Honda 16712-921-000

ROD, PUSH (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 16713-921-000

SPRING, DIAPHRAGM (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 16714-921-000

SPRING, RETURN (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 16715-921-000

WASHER, SPRING (4MM) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 16722-921-010

SEE PART DETAILS - PRI; COVER, FUEL PUMP

$

$

Not available

18

Honda 90602-921-000

CLIP, TUBE (B8)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 91351-MG7-003

SEE PART DETAILS - PRI; O-RING (20.8X2.4)

$3.99

$

In Stock, only 2 left!

0

20

Honda 92000-06028-02

SEE PART DETAILS - SUP; BOLT, HEX. (6X28)

$

$

Not available

21

Honda 93500-04028-0B

SCREW, PAN (4X28)

$

$

Currently unavailable

22

Honda 93500-06020-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X20)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 93500-06025

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

$

$

Currently unavailable

22

Honda 93500-06025-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X25)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 93500-06025-0B

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

$

$

Currently unavailable

22

Honda 93500-06025-02

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

$

$

Currently unavailable

23

Honda 94001-04020-0S

NUT, HEX. (4MM)

$

$

Not available

24

Honda 94101-06200

WASHER, PLAIN (6MM)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X450)

$54.99

$

In Stock, only 1 left!

0
