B75 K2 LD (EV4000) - Honda Outboard Engine, Made in Japan (SN: EV4000-100000 - EV4000-9999999) CYLINDER BARREL + CYLINDER HEAD Parts Diagram

Outboard Engine, Made in Japan

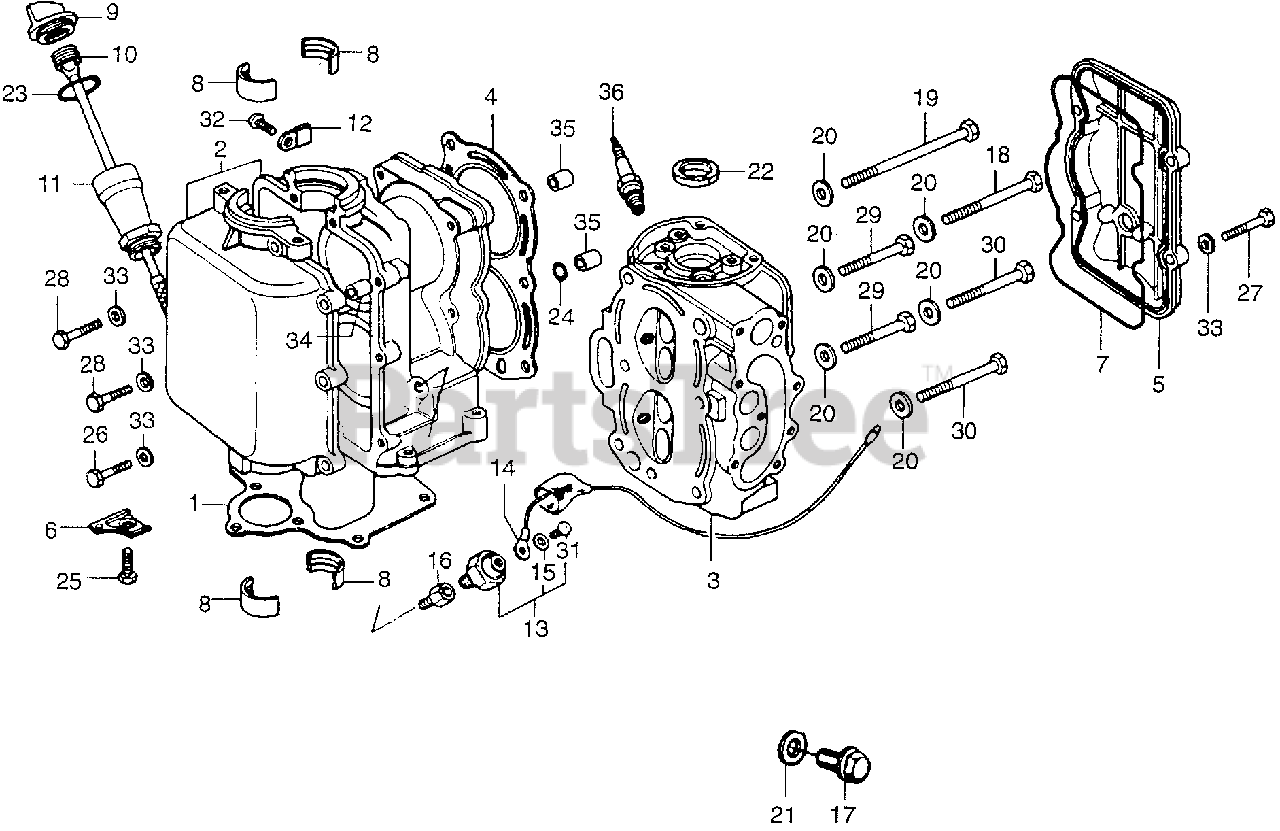

CYLINDER BARREL + CYLINDER HEAD Parts Diagram

  • Title

1

Honda 11210-921-030

SEE PART DETAILS - SUP; GASKET, OIL PAN

$

$

Currently unavailable

2

Honda 12010-935-000KA

CYLINDER

$

$

Not available

3

Honda 12200-921-050KA

CYLINDER HEAD

$

$

Not available

4

Honda 12251-921-505

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$

$

Not available

5

Honda 12300-921-050KA

COVER, CYLINDER HEAD

$

$

Currently unavailable

6

Honda 12367-935-000

PLATE, BREATHER

$

$

Not available

7

Honda 12391-921-030

GASKET, CYLINDER COVER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 13315-921-013

BEARING, CRANKSHAFT (STD) (NOT AVAILABLE)

$

$

Not available

9

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL

$13.99

$

Usually ships in 3-6 days

0

10

Honda 15612-921-000

DIPSTICK, OIL

$

$

Not available

11

Honda 15621-921-020

JOINT, OIL FILLER (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 32901-921-000

CLAMP

$

$

Not available

17

Honda 90002-706-000

BOLT, OIL CHECK (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 90017-935-000

BOLT, HEAD (8X70)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90018-935-000

BOLT, HEAD (8X94)

$5.99

$

Usually ships in 3-6 days

0

20

Honda 90402-822-000

WASHER, HEAD (8MM)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90442-921-000

WASHER, SEALING

$

$

Currently unavailable

22

Honda 91206-921-000

OIL SEAL (16X28X6)

$8.99

$

Usually ships in 3-6 days

0

23

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7)

$4.99

$

In Stock, only 1 left!

0

24

Honda 91353-706-000

O-RING (9.8X2.2) (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 92000-06010-02

SEE PART DETAILS - PRI; BOLT, HEX. (6X10) (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 92000-06025-02

SEE PART DETAILS - SUP; BOLT, HEX. (6X25)

$

$

Currently unavailable

26

Honda 92101-06025-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X25)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 92000-06028-02

SEE PART DETAILS - SUP; BOLT, HEX. (6X28)

$

$

Not available

28

Honda 92000-06035-02

BOLT, HEX. (6X35) (NOT AVAILABLE)

$

$

Currently unavailable

29

Honda 92200-08050-0A

BOLT, HEX. (8X50) (NOT AVAILABLE)

$

$

Currently unavailable

30

Honda 92200-08065-0A

BOLT, HEX. (8X65) (NOT AVAILABLE)

$

$

Currently unavailable

32

Honda 93500-05008-0B

SEE PART DETAILS - PRI; SCREW, PAN (5X8)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 94101-06200

WASHER, PLAIN (6MM)

$0.99

$

Usually ships in 3-6 days

0

34

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

35

Honda 94301-10140

SEE PART DETAILS - PRI; PIN A, DOWEL (10X14)

$3.49

$

Usually ships in 3-6 days

0

36

Honda 98066-55710

SEE PART DETAILS - PRI; SPARK PLUG (D5HS) (NGK)

$2.99

$

Usually ships in 3-6 days

0
