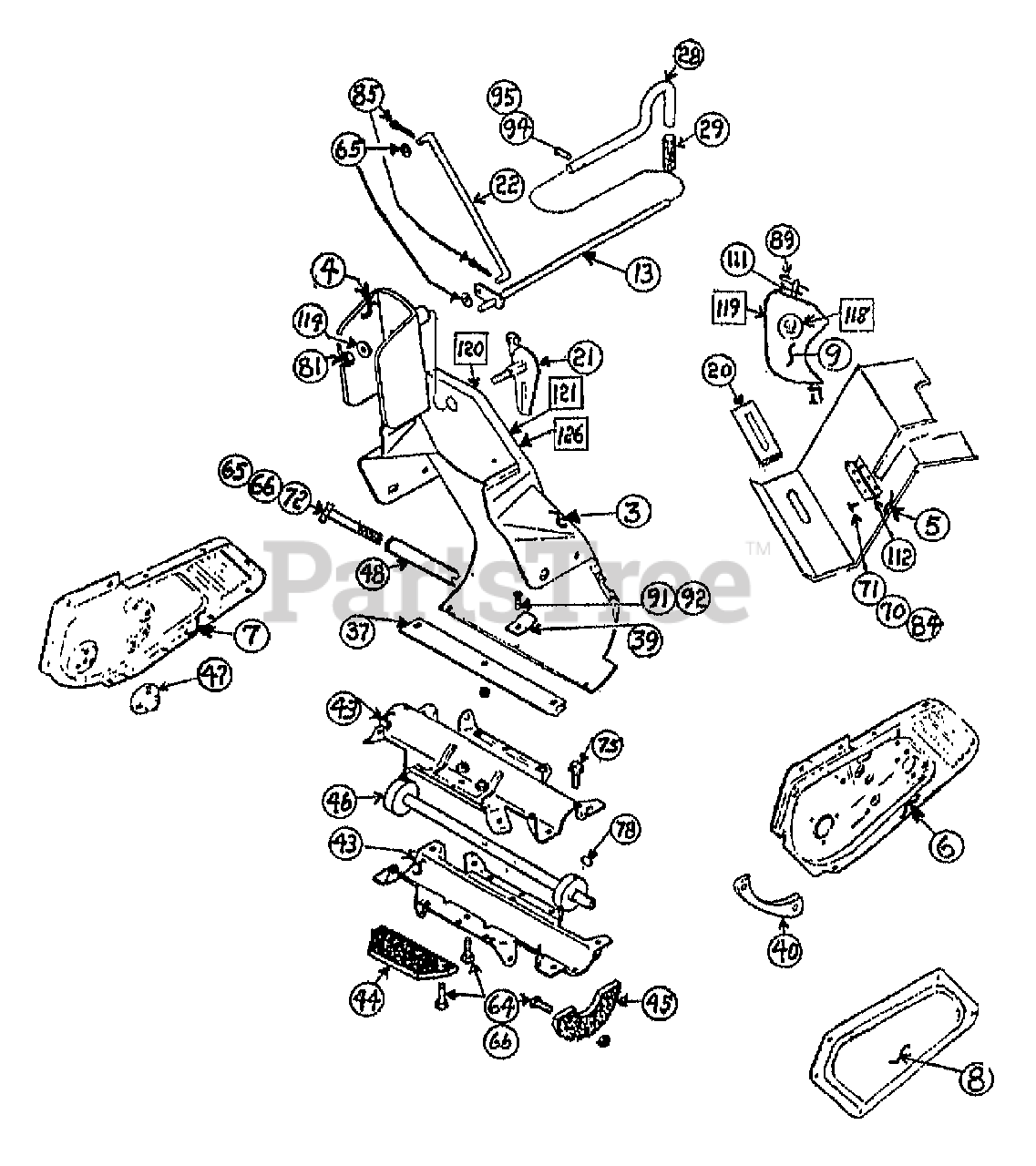

B60225 - Troy-Bilt Snow Thrower Conversion Kit Part 1 Parts Diagram

Snow Thrower Conversion Kit

Part 1 Parts Diagram

  • Title

1

0

N/A

$

$

Not available

3

Troy-Bilt GW-60256

WRAP SHEET W/DECALS

$

$

Currently unavailable

4

Troy-Bilt GW-B209684

DEFLECTOR-VANE

$

$

Currently unavailable

5

Troy-Bilt GW-60255

MAIN GUARD W/DECAL

$

$

Currently unavailable

6

MTD GW-B237564

ASSM-SIDE PLATE LH

$

$

Not available

7

MTD GW-B238866

ASSM-PLATE RH

$

$

Not available

8

Troy-Bilt GW-B207041

COVER-BELT

$

$

Currently unavailable

9

MTD GW-60254

GUARD-DRIVE W/DECAL

$

$

Not available

10

MTD GW-60159

BELT-V UPR DR SNOWBLOW

$

$

Not available

11

MTD GW-B237453

BELT-AUGER

$

$

Not available

12

MTD GW-60246

BRKT-LOCKING PNT

$

$

Not available

13

MTD GW-B237361

DEFLECTOR-ROD WELD

$

$

Not available

14

Troy-Bilt GW-B237476

GUIDE-BELT

$

$

Currently unavailable

15

Troy-Bilt GW-B237335

SHAFT PICK-UP

$

$

Currently unavailable

16

Troy-Bilt GW-B237362

BRKT-MOUNTING

$

$

Currently unavailable

17

Troy-Bilt GW-B238096

BEARING

$

$

Currently unavailable

18

Troy-Bilt GW-B237359

PULLEY-ENGINE PICK-UP

$

$

Currently unavailable

19

Troy-Bilt GW-B237355

PULLEY-AUGER DRIVE

$

$

Currently unavailable

20

Troy-Bilt GW-B237339

SHIELD-WEATHER

$

$

Currently unavailable

21

Troy-Bilt GW-B209816

ASSM-PIVOT VANE

$

$

Currently unavailable

22

Troy-Bilt GW-B237337

ROD-LINKAGE

$

$

Currently unavailable

23

MTD GW-B238871

BRKT-MOUNTING WELD

$

$

Not available

24

Troy-Bilt GW-B237343

HOLDER-IDLER WELD

$

$

Currently unavailable

25

MTD GW-B23486

PULLEY-IDLER

$

$

Not available

26

MTD GW-60153

ASSM-IDLER PLATE

$

$

Not available

27

Troy-Bilt GW-B237478

PLATE-MOUNTING

$

$

Currently unavailable

28

Troy-Bilt GW-B207111

HANDLE-VANE CONTROL

$

$

Currently unavailable

29

Troy-Bilt GW-B207174

GRIP-VANE CONTROL

$

$

Currently unavailable

30

MTD GW-60186

PULLEY-ENGINE 4L

$

$

Not available

31

Troy-Bilt GW-B36747

SPRING-COMPRESSION

$

$

Currently unavailable

32

Troy-Bilt GW-B238738

ASSM-IDLER PULLEY

$

$

Currently unavailable

33

Troy-Bilt GW-B207080

BUSHING-PIVOT

$

$

Currently unavailable

34

Troy-Bilt GW-B237360

PULLEY-AUGER

$

$

Currently unavailable

35

MTD GW-60228

STOP-OVERCENTER

$

$

Not available

36

MTD GW-B237489

GUIDE-BELT

$

$

Not available

37

Troy-Bilt GW-B201879

SCRAPER

$

$

Currently unavailable

38

Troy-Bilt GW-B237569

ASSM-IDLER ARM

$

$

Currently unavailable

39

Troy-Bilt GW-B208889

SPRING-AUGER STOP

$

$

Currently unavailable

40

MTD GW-B210219

STRIP

$

$

Not available

41

Troy-Bilt GW-B70742

PIN

$

$

Currently unavailable

42

MTD GW-B237486

ASSM-RECOIL GUARD

$

$

Not available

43

MTD GW-B207105

PLATE-AUGER

$

$

Not available

44

MTD GW-B207527

TIP

$

$

Not available

45

MTD GW-B207141

FLIGHT

$

$

Not available

46

Troy-Bilt GW-B238873

SUPPORT-AUGER

$

$

Currently unavailable

47

Troy-Bilt GW-B238867

ASSM-BEARING

$

$

Currently unavailable

48

Troy-Bilt GW-B238876

TUBE

$

$

Currently unavailable

49

MTD GW-B237739

ASSM-SWITCH

$

$

Not available

50

MTD GW-60253

COVER-CARB W/DECAL

$

$

Not available

51

Troy-Bilt GW-B237341

D SPACER-IDLER

$

$

Currently unavailable

52

Troy-Bilt GW-B71174

BOLT
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

53

Troy-Bilt GW-B70643

WASHER
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

54

Troy-Bilt GW-B70545

NUT
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

55

Troy-Bilt GW-B70235

BOLT
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt GW-B70649

WASHER
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

57

Troy-Bilt GW-B70703

WASHER
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

58

Troy-Bilt GW-B70143

BOLT
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt GW-B70646

WASHER
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

60

Troy-Bilt GW-B70549

NUT
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

61

MTD GW-B70701

WASHER

$

$

Not available

62

Troy-Bilt GW-B207104

WASHER-CUP

$

$

Currently unavailable

63

Troy-Bilt GW-B207121

SCR-HH 5/16-18 X .20 STH ZP

$

$

Currently unavailable

64

Troy-Bilt GW-B70097

BOLT
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

65

Troy-Bilt GW-B70699

WASHER
(Superseded to 936-3020)

$

$

Not available

66

Troy-Bilt GW-B70628

NUT
(Superseded to 1110106)

$

$

Not available

67

Troy-Bilt GW-B3917

RING-SNAP

$

$

Currently unavailable

68

Troy-Bilt GW-B11412

WASHER-FLAT 3/4

$

$

Currently unavailable

69

Troy-Bilt GW-B70387

SCR-RD HD #10-24 X 3/4

$

$

Currently unavailable

70

Troy-Bilt GW-B70641

WASHER
(Superseded to 1100240)

$

$

Not available

71

Troy-Bilt GW-B70540

NUT
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

72

Troy-Bilt GW-B71401

SCR-HH 1/4-20 X 6

$

$

Currently unavailable

73

MTD GW-B70093

BOLT

$

$

Not available

74

Troy-Bilt GW-B207074

NUT-SPEED

$

$

Currently unavailable

75

Troy-Bilt GW-B10531

SCR-HEX TYPE A #10-.500

$

$

Currently unavailable

76

Troy-Bilt GW-B71259

BOLT-HH 1/4-28 X 3/4

$

$

Currently unavailable

77

Troy-Bilt GW-B18846

WASHER-1.06 X .25 X .067

$

$

Currently unavailable

78

Troy-Bilt GW-B70807

KEY-WOODRUFF 1/8 X 1/2

$

$

Currently unavailable

79

Troy-Bilt GW-B70151

BOLT
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

80

Troy-Bilt GW-B70629

NUT
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

81

Troy-Bilt GW-B70605

NUT
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

83

Troy-Bilt GW-B207122

SCR-SHAKE PR 1/4-15 X 3/4

$

$

Currently unavailable

84

MTD GW-B70386

SCR-RH M10-24 X .50 ZP

$

$

Not available

85

MTD GW-B9678

CLIP

$

$

Not available

86

Troy-Bilt GW-B237327

CUSHION-6.74 5 LONG

$

$

Currently unavailable

87

Troy-Bilt GW-B237324

CUSHION-3.75 LONG

$

$

Currently unavailable

88

Troy-Bilt GW-B70795

KEY
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

89

MTD GW-9368

PIN-HITCH ZP

$

$

Not available

90

MTD GW-9302

KEY-.188 SQ X 1.25

$

$

Not available

91

Troy-Bilt GW-B71082

SCR-HEX SOC FL #10-24

$

$

Currently unavailable

92

MTD GW-B70627

NUT
(Superseded to GW-92001)

$

$

Not available

93

MTD GW-B237479

BRACE-SUPPORT

$

$

Not available

94

Troy-Bilt GW-B71083

SCR-RD HD #8-32 X 5/8

$

$

Currently unavailable

95

Troy-Bilt GW-B71094

NUT-LOCK #8-32

$

$

Currently unavailable

96

Troy-Bilt GW-B70553

NUT
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

97

Troy-Bilt GW-9591

SCR-FLT HD 5/16-24

$

$

Currently unavailable

98

Troy-Bilt GW-B70258

BOLT
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

99

Troy-Bilt GW-B70762

PIN
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

101

MTD GW-B237371

KEYS

$

$

Not available

102

Troy-Bilt GW-B237344

LEVER-REMOTE CHOKE

$

$

Currently unavailable

103

Troy-Bilt GW-B70699

WASHER
(Superseded to 936-3020)

$

$

Not available

104

Troy-Bilt GW-B237560

N KNOB-CHOKE LEVER

$

$

Currently unavailable

105

Troy-Bilt GW-ET42576

ENGINE STUD

$

$

Currently unavailable

106

MTD GW-9683

SCR-HH 5/16-18X.63 G5

$

$

Not available

107

Troy-Bilt GW-B70683

WASHER
(Superseded to 936-3020)

$

$

Not available

108

0

N/A

$

$

Not available

109

MTD GW-B237562

GASKET

$

$

Not available

110

MTD GW-B37590

CLAMP-CABLE

$

$

Not available

111

Troy-Bilt GW-60028

CUSHION

$

$

Currently unavailable

112

MTD GW-B237332

HINGE-SHROUD

$

$

Not available

113

Troy-Bilt GW-B70685

WASHER
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

114

Troy-Bilt GW-B70689

WASHER-FLAT 7/16 SAE

$

$

Currently unavailable

115

MTD GW-9799

SCR-FLHH 5/16-24 X .75 ZP

$

$

Not available

117

MTD GW-B237581

DECAL-CARB COVER

$

$

Not available

118

Troy-Bilt GW-60071

DECAL-"CULTIVATOR-PLUS"

$

$

Currently unavailable

119

Troy-Bilt GW-B237579

DECAL-WARN. BELT CVR

$

$

Currently unavailable

120

Troy-Bilt GW-B207946

DECAL

$

$

Currently unavailable

121

MTD GW-B207945

DECAL

$

$

Not available

122

Troy-Bilt GW-B237577

DECAL-DEFLECTOR PLT LT

$

$

Currently unavailable

123

Troy-Bilt GW-B237576

DECAL-DEFLECTOR PLT RT

$

$

Currently unavailable

124

Troy-Bilt B237578

DECAL-ATTACH INST

$

$

Currently unavailable

125

0

N/A

$

$

Not available

126

Troy-Bilt GW-B35756

DECAL-ANSI

$

$

Currently unavailable
