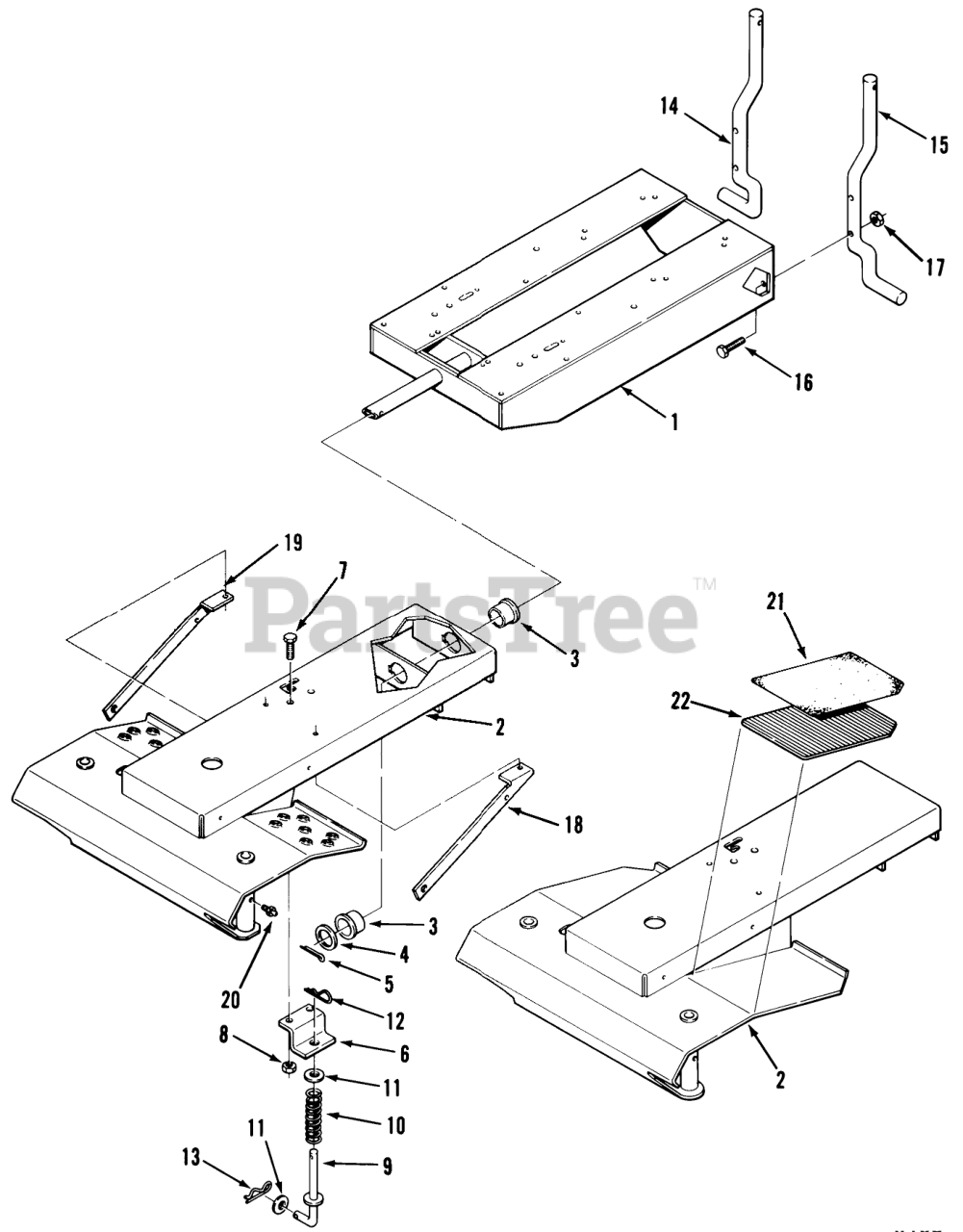

B3-11B502 (111-5) - Toro Rear-Engine Riding Mower (1986) FRAME Parts Diagram

Rear-Engine Riding Mower

FRAME Parts Diagram

  • Title

1

Toro 111151

Rear Frame Assy

$

$

Not available

1

Toro 111301

Rear Frame Ass-y 108-3, 108-5, 111-5
(Superseded to 112502)

$743.99

$

Usually ships in 3-6 days

0

2

Toro 111085

Front Frame Assy

$

$

Not available

2

Toro 111303

ASSY FRONT FRAME R

$

$

Not available

3

Toro 110311

BEARING FLANGE

$

$

Not available

4

Toro 110426

WASHER

$

$

Not available

5

Toro 932037

Pin-Cotter
(Superseded to 9320374)

$

$

Not available

6

Toro 110406

BRACKET R

$

$

Not available

7

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

8

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

9

Toro 110913

ROD ASSY R

$

$

Not available

10

Toro 109229

SPRING-COMPRESSION

$61.99

$

Usually ships in 3-6 days

0

11

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

12

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

13

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

14

Toro 111088

REAR ROD RH B

$

$

Not available

15

Toro 111087

REAR ROD LH B

$193.99

$

Usually ships in 3-6 days

0

16

Toro 911439

BOLT 5/16-18X1 1/2

$

$

Not available

17

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 18

0

18

Toro 110961

ASSY BRACE AXLE LH

$

$

Not available

19

Toro 110962

ASSY BRACE AXLE RH

$

$

Not available

20

Toro MW1455

Grease Zerk
(Superseded to 302-26)

$6.49

$

In Stock, only 1 left!

0

21

Toro 111300

PAD FOOTREST RH

$

$

Not available

21

Toro 111299

PAD FOOTREST LH

$

$

Not available

22

Toro 111324

PAD FOOTREST RH

$47.99

$

Usually ships in 3-6 days

0

22

Toro 111325

PAD FOOTREST LH

$

$

Not available
