B3-08B303 (108-3) - Toro Rear-Engine Riding Mower (1986) WHEELS AND TIRES Parts Diagram

Rear-Engine Riding Mower

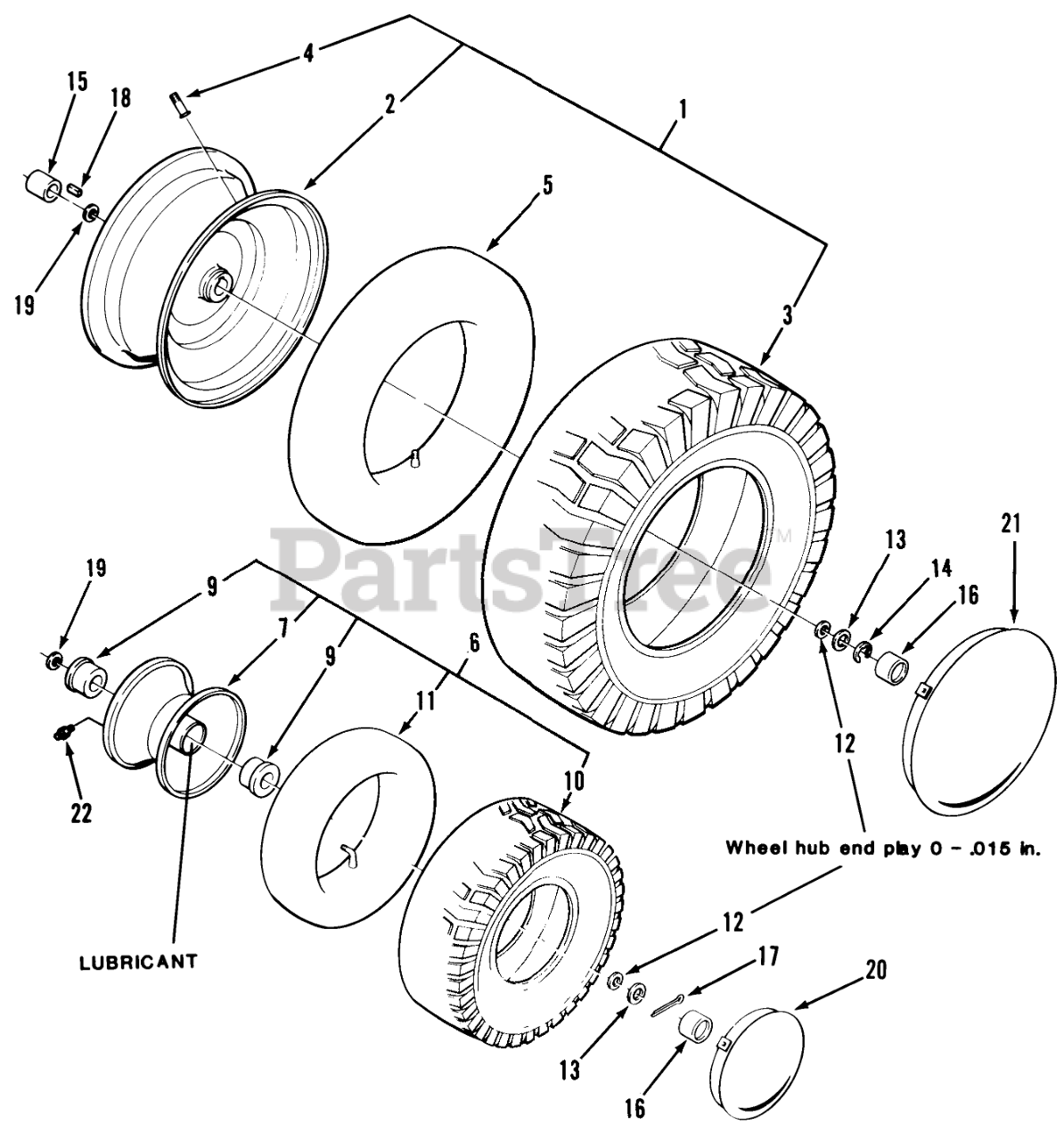

WHEELS AND TIRES Parts Diagram

  • Title
1

Toro 110879

Rear Wheel and Tire 108-3 Only

$

$

Not available

1

Toro 110880

Rear Wheel and Tire 108-4 Only

$

$

Not available

1

Toro 110896

Rear Wheel And Tire Assy 108-5, 111-5 Only

$

$

Not available

2

Toro 110881

Rear Wheel 108-4 Only

$

$

Not available

2

Toro 110897

ASSY WHEEL

$

$

Not available

3

Toro 110883

Rear Tire 4.80 x 4.00-8 108-3 Only

$

$

Not available

3

Toro 110882

Rear Tire 16 x 6.50-8 108-3 Only

$

$

Not available

3

Toro 9792

TIRE TURF SAVER 16X6.50-8

$

$

Not available

4

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

5

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

$

$

Not available

6

Toro 110884

Front Wheel and Tire 108-3 Only

$

$

Not available

6

Toro 110885

ASSY WHEEL & TIRE

$

$

Not available

6

Toro 110898

Front Wheel and Tire 11 1-5, 111-6 Only

$

$

Not available

7

Toro 110886

Frt Wheel w/Bushings & Grease Fitting 108-4

$

$

Not available

7

Toro 110899

ASSY WHEEL

$195.99

$

Usually ships in 3-6 days

0

9

Toro 110391

BEARING-WHEEL

$7.99

$

In Stock, only 4 left!

0

9

Toro 100166

FLANGE BEARING

$34.99

$

Usually ships in 3-6 days

0

10

Toro 110888

Tire 4.10 x 3.50-4 108-3 Only
(Superseded to 110885)

$

$

Not available

10

Toro 108444

Tire-Front 4-10 X 3.50-4
(Superseded to 100030)

$

$

Not available

11

$

$

Not available

12

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

13

Toro 920250

WASHER

$

$

Not available

14

Toro 104636

E Ring
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

15

Toro 110387

LH AXLE SPACER

$

$

Not available

16

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

16

Toro 109261

HUB CAP

$

$

Not available

17

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

18

Toro 1120

SQ KEY

$3.49

$

Usually ships in 3-6 days

0

19

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

20

Toro 110784

Hub Cap 4" 111-5 Only

$

$

Not available

21

Toro 111162

HUB CAP 8 IN

$

$

Not available

22

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0
