B3-08B303 (108-3) - Toro Rear-Engine Riding Mower (1986) ELECTRICAL SYSTEM-ELECTRIC START Parts Diagram

Rear-Engine Riding Mower

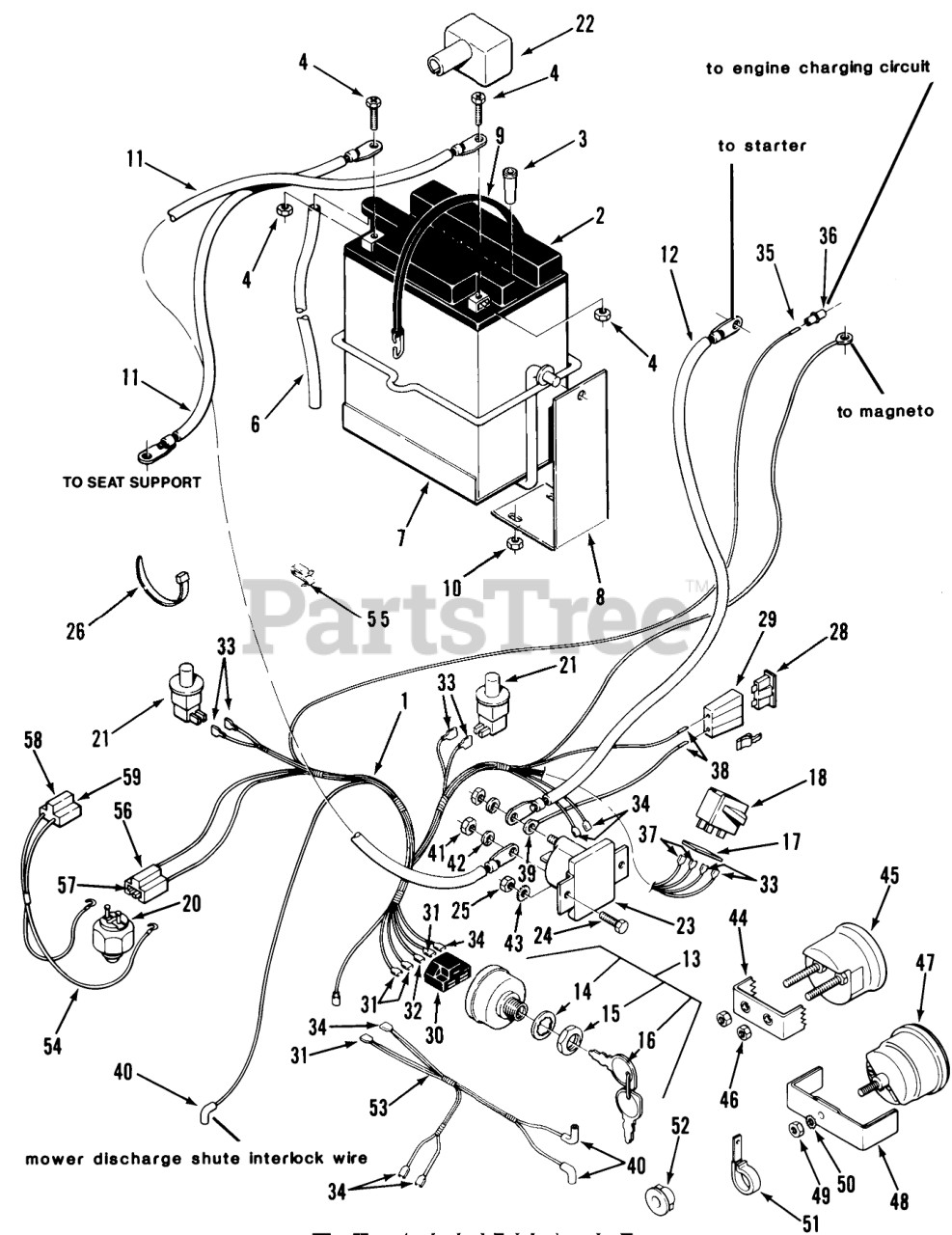

ELECTRICAL SYSTEM-ELECTRIC START Parts Diagram

  • Title

1

Toro 111363

WIRING HARNESS

$

$

Not available

2

Toro 110379

BATTERY 120CCA

$

$

Not available

3

Toro 110427

ADAPTER

$

$

Not available

4

Toro 111185

ASSY BATTERY HDW

$

$

Not available

6

Toro 110424

HOSE BATTERY DRAIN

$

$

Not available

7

Toro 111335

BATTERY TRAY B

$

$

Not available

8

Toro 111339

BRACKET B

$

$

Not available

9

Toro 111340

STRAP

$

$

Not available

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 111341

ASSY WIRE

$

$

Not available

12

Toro 111075

WIRE ASM

$23.99

$

Usually ships in 3-6 days

0

13

Toro 111215

Ignition Switch Ass-y
(Superseded to 103991)

$55.99

$

In Stock, only 1 left!

0

14

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

15

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

16

Toro 111220

Ignition Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

16

Toro 111214

KEY PADDED

$

$

Not available

17

Toro 110501

SHIELD-DIRT (DPDT)

$

$

Not available

18

Toro 109327

PTO Interlock Switch
(Superseded to 98-2392)

$78.99

$

Usually ships in 3-6 days

0

20

Toro 111365

SWITCH (N.C.-TRANS)

$

$

Not available

21

Toro 109329

SWITCH (N.C.)

$

$

Not available

22

Toro 111045

COVER-TERMINAL

$

$

Not available

23

Toro 110167

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, only 4 left!

0

24

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

25

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

26

Toro 100571

PLASTIC TIE

$

$

Not available

28

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

29

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

30

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

31

Toro 102651

Terminal

$

$

Not available

32

Toro 105306

TERMINAL-TAB RCPT

$3.99

$

Usually ships in 3-6 days

0

33

Toro 518077

Terminal

$

$

Currently unavailable

34

Toro 8765

Connector

$

$

Not available

35

Toro 518074

Terminal

$

$

Not available

36

Toro 107831

SOCKET HOUSING

$

$

Not available

37

Toro 109378

Wire Terminal (Part of 1)

$

$

Currently unavailable

38

Toro 108995

TERMINAL-FUSE

$

$

Not available

39

Toro 518007

Wire Terminal (Part of 1)

$

$

Not available

40

Toro 518246

Terminal Part of 5

$

$

Not available

41

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

42

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

43

Toro 920122

LOCKWASHER

$

$

Not available

44

Toro 109650

CLAMP MOUNTING

$16.99

$

Usually ships in 3-6 days

0

45

Toro 110741

Voltmeter (w/109650)
(Superseded to 117176)

$

$

Not available

46

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

47

Toro 110853

Hourmeter 314, 417
(Superseded to 113469)

$446.99

$

Usually ships in 3-6 days

0

48

Toro 108768

HOUR METER CLAMP

$

$

Not available

49

Toro 915538

Hex Nut
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

50

Toro 920120

Lockwasher
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

51

Toro 105490

CLAMP

$

$

Not available

52

Toro 938018

BUSHING-NYLON .75

$

$

Not available

53

Toro 110893

Volt & Hourmeter Harness

$

$

Not available

54

Toro 111364

ASSY WIRING HARNESS

$

$

Not available

55

Toro 3023

SPEED CLIP

$

$

Not available

56

Toro 109375

WHEEL ASM

$

$

Not available

57

Toro 105312

Connector Part of 5

$

$

Currently unavailable

58

Toro 110459

CONNECTOR BODY B

$1.99

$

In Stock, only 2 left!

0

59

Toro 105306

TERMINAL-TAB RCPT

$3.99

$

Usually ships in 3-6 days

0
