B3-08B302 (108-3) - Toro Rear-Engine Riding Mower (1981) KAWASAKI FB460V TYPE AS-15 ENGINE Parts Diagram

Rear-Engine Riding Mower

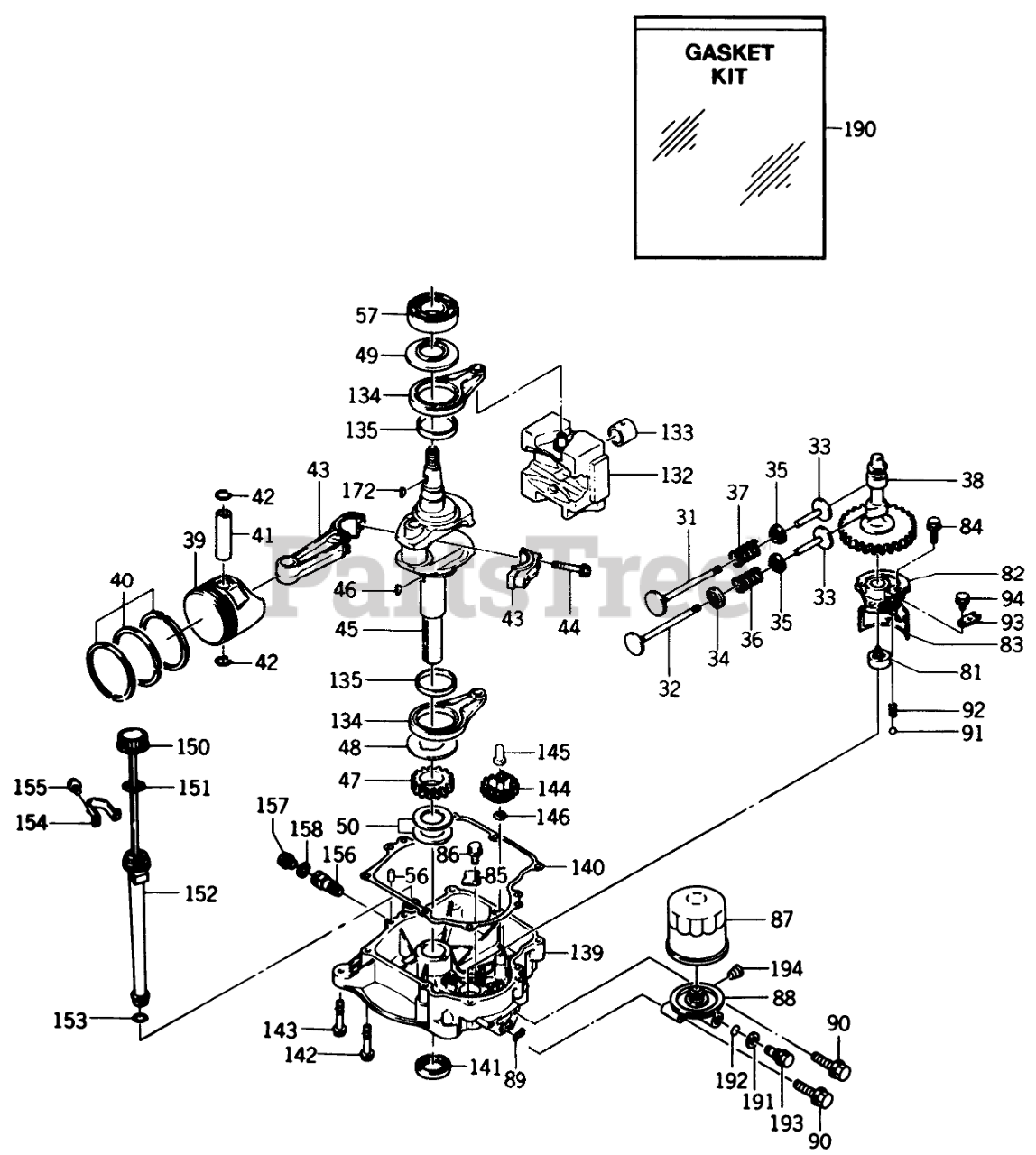

KAWASAKI FB460V TYPE AS-15 ENGINE Parts Diagram

  • Title

31

Kawasaki 12004-2076

Intake Valve
(Superseded to 12004-2072)

$28.99

$

In Stock, only 1 left!

0

32

Kawasaki 12005-2066

Exhaust Valve
(Superseded to 12005-2065)

$

$

Not available

33

Kawasaki 12032-2058

Tappet

$

$

Not available

34

Kawasaki 12039-2052

Rotator

$

$

Not available

35

Kawasaki 39108-2054

Retainer-Spring

$

$

Not available

36

Kawasaki 49078-2058

Spring-Valve
(Superseded to 49078-2074)

$

$

Not available

37

Kawasaki 49078-2059

Spring-Valve
(Superseded to 49078-2075)

$

$

Not available

38

Toro 12044-2148

Cam Shaft

$

$

Currently unavailable

39

Kawasaki 13001-2096

Piston

$

$

Not available

Kawasaki 13029-2084

Piston 0.25

$

$

Not available

Kawasaki 13029-2085

Piston 0.50

$

$

Not available

Kawasaki 13027-2056

Piston-.030 Over Size

$

$

Not available

40

Kawasaki 13008-6009

Set-Ring Piston

$

$

Not available

Kawasaki 13008-6010

Set-Ring Piston 0.25

$

$

Not available

Kawasaki 13008-6011

Set-Ring Piston 0.50

$

$

Not available

Kawasaki 13008-6012

Piston Ring Set-.030 Over Size

$

$

Not available

41

Toro 13002-2066

Pin-Piston

$

$

Currently unavailable

42

Toro 92033-2066

Ring-Snap

$

$

Currently unavailable

43

Kawasaki 13251-6005

Connecting Rod Ass-y-Standard (includes item 44)
(Superseded to 13251-6001)

$89.99

$

In Stock, only 1 left!

0

Kawasaki 13251-6007

Connecting Rod Ass-y-.025mm Under Size (includes item 44)
(Superseded to 13251-6002)

$97.99

$

Usually ships in 2-5 days

0

44

Toro 315801-3245A

Bolt

$

$

Currently unavailable

45

Toro 49119-2115

Crankshaft Complete

$

$

Currently unavailable

46

Toro 51OA5100

Key

$

$

Currently unavailable

47

Kawasaki 59056-2105

Gear
(Superseded to 59056-2018)

$46.99

$

Usually ships in 2-5 days

0

48

Toro 92026-2156

Spacer

$

$

Currently unavailable

49

Toro 92026-2164

Spacer

$

$

Currently unavailable

50

Kawasaki 92025-2145

Shim (1.18)

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2146

Shim (1.25)

$6.49

$

Usually ships in 2-5 days

0

Kawasaki 92025-2147

Shim (1.32)

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2148

Shim (1.39)

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2149

Shim (1.46)

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2150

Shim (1.53)

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2151

Shim (1.60)

$3.99

$

Usually ships in 2-5 days

0

Kawasaki 92025-2152

Shim (1.67)

$3.99

$

In Stock, only 1 left!

0

Kawasaki 92025-2153

Shim (1.74)

$5.99

$

Usually ships in 2-5 days

0

56

Kawasaki 92043-2111

Dowel Pin
(Superseded to 92043-1263)

$0.99

$

In Stock, Qty 20+

0

57

Kawasaki 601A6207

Ball Bearing

$21.99

$

In Stock, only 1 left!

0

81

Toro 16082-2057

Pump ASM-Oil

$

$

Currently unavailable

82

Toro 16142-6001

Cover-Pump

$

$

Currently unavailable

83

Kawasaki 49065-2056

Filter-Oil

$

$

Not available

84

Toro 130G0825

Bolt-Flanged (8X25)

$

$

Currently unavailable

85

Kawasaki 13169-2359

Plate

$

$

Not available

86

Toro 130G0508

Bolt 5 x 8

$

$

Currently unavailable

87

Kawasaki 49065-2057

Filter
(Superseded to 49065-2071)

$15.99

$

In Stock, Qty 20+

0

88

Toro 23062-6001

Bracket (includes item 194)

$

$

Currently unavailable

89

Kawasaki 92055-2063

Seal

$4.49

$

In Stock, Qty 10

0

90

Toro 130B0845

Bolt 8 x 45

$

$

Currently unavailable

91

Kawasaki 600A1000

Ball

$0.99

$

In Stock, Qty 7

0

92

Kawasaki 92081-2216

Spring

$0.99

$

Usually ships in 2-5 days

0

93

Kawasaki 13169-2360

Plate
(Superseded to 13270-2054)

$0.99

$

Usually ships in 2-5 days

0

94

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

132

Kawasaki 13042-6006

Weight Complete (includes item 133)
(Superseded to 13042-6001)

$179.99

$

Usually ships in 2-5 days

0

133

Toro 92141-2007

Bushing

$

$

Currently unavailable

134

Kawasaki 46102-6001

Rod Assy (includes item 135)
(Superseded to 46102-6007)

$

$

Not available

135

Toro 92141-2094

Bearing Plane

$

$

Currently unavailable

139

Toro 49015-6001

Gasket

$

$

Currently unavailable

140

Kawasaki 11009-2337

Gasket
(Superseded to 11060-2481)

$

$

Not available

141

Kawasaki 92049-2104

Oil Seal

$

$

Not available

142

Kawasaki 130G0845

Bolt-Flanged (8X45)
(Superseded to 130BA0845)

$1.99

$

In Stock, Qty 13

0

143

Toro 130G0825

Bolt-Flanged (8X25)

$

$

Currently unavailable

144

Kawasaki 49110-2067

Governor ASM
(Superseded to 49110-2084)

$

$

Not available

145

Kawasaki 42036-2060

Sleeve
(Superseded to 42036-2059)

$4.99

$

In Stock, Qty 10

0

146

Toro 314401-5135A

Washer

$

$

Currently unavailable

150

Kawasaki 52005-2058

Gauge

$

$

Not available

151

Kawasaki 11009-2346

Gasket
(Superseded to M88482)

$2.49

$

In Stock, Qty 6

0

152

Kawasaki 59231-2059

Filler

$

$

Not available

153

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

$1.99

$

In Stock, Qty 20+

0

154

Toro 92037-2160-9H

Clamp

$

$

Currently unavailable

155

Kawasaki 130B0508

Bolt
(Superseded to 130AA0508)

$0.99

$

In Stock, Qty 8

0

156

Toro 56071-2063

Joint

$

$

Currently unavailable

157

Kawasaki 92066-2092

Plug
(Superseded to 92066-2253)

$2.49

$

In Stock, only 2 left!

0

158

Kawasaki 317370-7883-00

Gasket
(Superseded to 11009-2175)

$1.99

$

In Stock, Qty 15

0

172

Kawasaki 510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 20+

0

190

Toro 11028-6001

Overhaul Gasket Set

$

$

Currently unavailable

191

Kawasaki 317370-7883-00

Gasket
(Superseded to 11009-2175)

$1.99

$

In Stock, Qty 15

0

192

Kawasaki 670D1507

O Ring
(Superseded to 92055-0847)

$1.99

$

In Stock, only 1 left!

0

193

Kawasaki 92066-2093

Plug

$

$

Not available

194

Kawasaki 92066-2102

Plug

$

$

Not available
