B2-11BX91 (B-1136) - Toro Lawn Tractor (1984) 3 & 5 SPEED TRANSMISSION Parts Diagram

Lawn Tractor

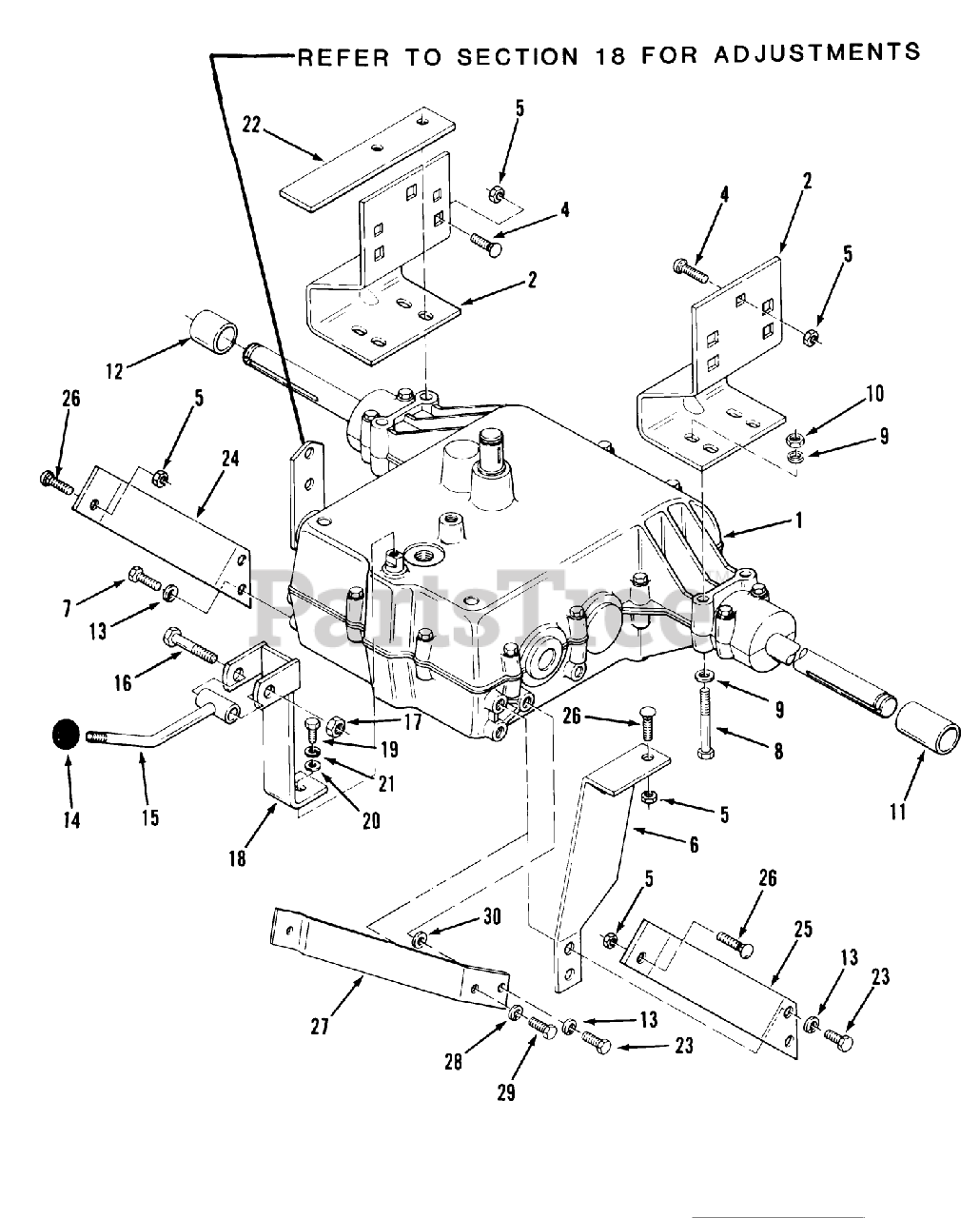

3 & 5 SPEED TRANSMISSION Parts Diagram

  • Title
1

Toro 109920

Transmission-Peerless Model 822

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For CrossReference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Not available

1

Toro 110209

Transmission-3-Speed Peerless Model 900-003

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For CrossReference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Currently unavailable

2

Toro 108793

BRKT-TRANS MOUNT R

$

$

Not available

2

Toro 107970

Bracket-Rear Axle RH

$

$

Not available

2

Toro 110295

Bracket-Rear Axle LH-3-Speed Only

$

$

Not available

4

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 108792

TORQUE STRAP

$

$

Not available

6

Toro 110297

Torque Strap 3-Speed Only
(Superseded to 113-904)

$3.23

$

Usually ships in 3-6 days

0

7

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

8

Toro 908025

HHCS
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

9

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 108421

SPACER-AXLE LH

$

$

Not available

11

Toro 110201

SPACER

$

$

Not available

12

Toro 108420

SPACER-AXLE RH

$

$

Not available

13

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

14

$15.99

$

In Stock, only 4 left!

0

15

Toro 109638

ASSY-UPPER SHIFT ROD

$122.99

$

Usually ships in 3-6 days

0

16

Toro 908040

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

16

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

17

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

18

Toro 109492

ASSY LEVER R

$374.99

$

Usually ships in 3-6 days

0

18

Toro 110192

Shift Lever-Lower 3-Speed Only

$

$

Not available

19

Toro 908153

Bolt 1/4-28 X 7/8
(Superseded to 329-5)

$

$

Not available

20

Toro 104869

WASHER

$

$

Not available

21

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

22

Toro 108396

Brake Stop Bar

$

$

Not available

22

Toro 110163

Brake Stop Bar 3-Speed Only

$

$

Not available

23

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

24

Toro 110152

TORQUE STRAP RH

$

$

Not available

24

Toro 110190

TORQUE STRAP RH R

$

$

Not available

25

Toro 110151

TORQUE STRAP LH

$

$

Not available

26

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

27

Toro 110296

TORQUE STRAP LH R

$

$

Not available

28

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

29

Toro 926673

Bolt, 1/4-20 x 3/4 Swage Form

$

$

Currently unavailable

30

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0
