B - Simplicity Two-Wheeled Tractor, 1.5hp Sickle Bar Group - 30" (3736I05) Parts Diagram

Two-Wheeled Tractor, 1.5hp

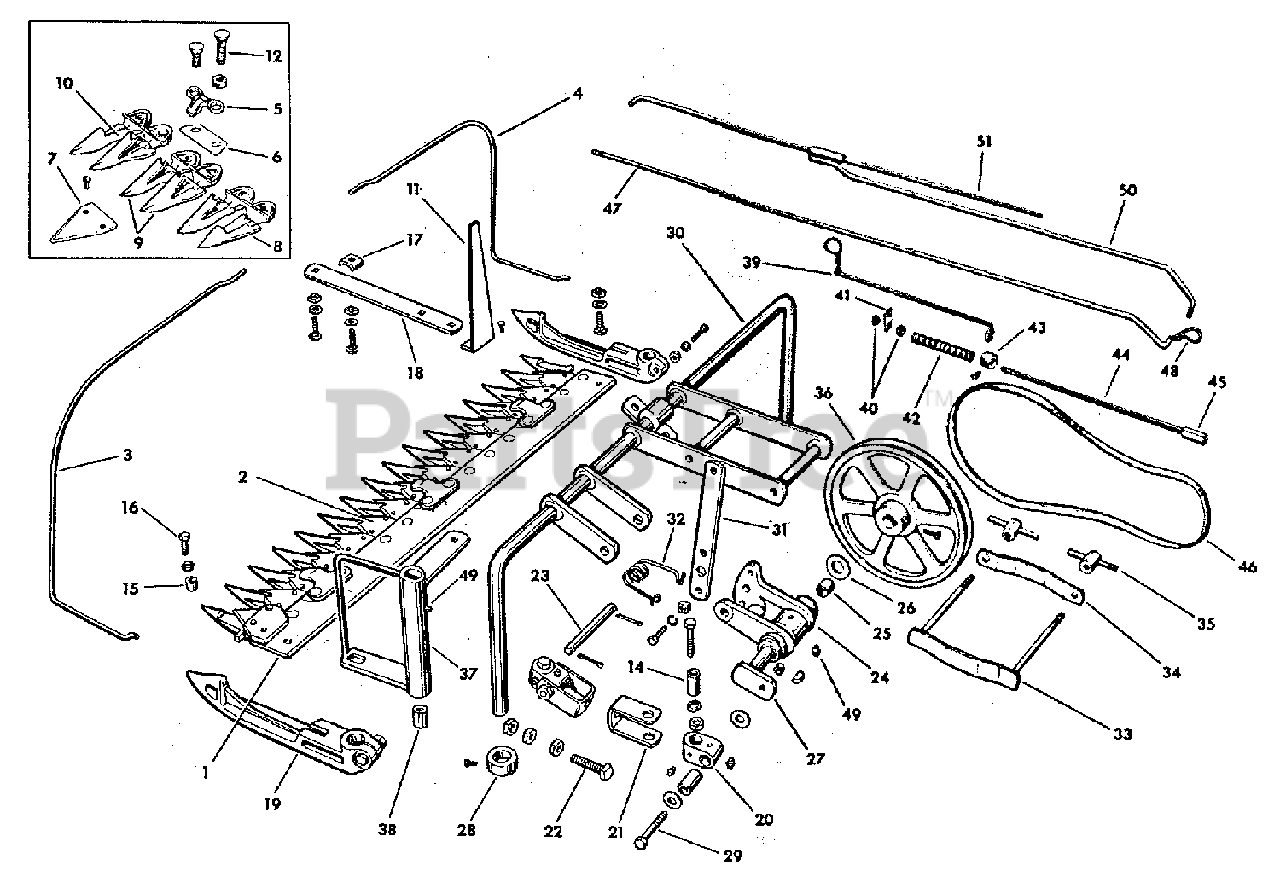

Sickle Bar Group - 30" (3736I05) Parts Diagram

  • Title

1

Simplicity S1A189

BAR, Cutter

$

$

Not available

2

Simplicity S1A188

SICKLE, Complete w/Head

$

$

Not available

3

Simplicity S1B27

GRASS FINGER, Left

$

$

Not available

4

Simplicity S1B26

GRASS FINGER, Right

$

$

Not available

5

Simplicity S1A137

CLIP, Sickle

$

$

Not available

6

Simplicity S1A136

WEAR PLATE

$

$

Not available

7

SICKLE SECTIONS (15 Sections and 30 Rivets in box)

$

$

Not available

8

Simplicity S1A131

END GUARD, Left

$

$

Not available

9

Simplicity S1A135

TWIN GUARD

$

$

Not available

10

Simplicity S1A138

END, Right

$

$

Not available

11

Simplicity S1A178

WHIPPER

$

$

Not available

12

Simplicity S1A133

GUARD BOLT, Long

$

$

Not available

13

Simplicity S1A134

GUARD BOLT, Short

$

$

Not available

14

Simplicity S1A56

BEARING, Pivot Block

$

$

Not available

15

Simplicity S1A58

BEARING, Sickle Head

$

$

Not available

16

BEARING BOLT, Sickle Head, 3/8-24 x 1

$

$

Not available

17

Simplicity S1A182

CLAMP, Grass Finger

$

$

Not available

18

Simplicity S1A181

BRACKET, Grass Finger

$

$

Not available

19

Simplicity S1B19

SHOE, Sickle Bar

$

$

Not available

20

Simplicity S1A52

PIVOT BLOCK

$

$

Not available

21

Simplicity S1A55

CLEVIS, Pitman

$

$

Not available

22

PITMAN, Machine Bolt, 7/16-14 X 1-3/4

$

$

Not available

23

Simplicity S1A165

PIN, Hinge

$

$

Not available

24

Simplicity S1A166

BRACKET, Bearing

$

$

Not available

25

Simplicity S1A59

CRANKSHAFT, Bronze Bushing

$

$

Not available

26

Simplicity S1A145

WASHER, Spacer Thrust

$

$

Not available

27

Simplicity S1AX15

CRANKSHAFT

$

$

Not available

28

Simplicity S2E-A5

COLLAR, Set, 7/8

$

$

Not available

29

CRANK PIN BOLT, 3/8-24 x 2

$

$

Not available

30

Simplicity S1CX7

FRAME, Sickle Bar

$

$

Not available

31

Simplicity S1A167

ARM, Clutch

$

$

Not available

32

Simplicity S1A185

SPRING, Belt Release

$

$

Not available

33

Simplicity S1BX-1

CLAMP, Hitch

$

$

Not available

34

Simplicity S1A-29

SIDE PLATE, Hitch

$

$

Not available

35

Simplicity S1A-41

NUT, Wing, Complete

$

$

Not available

36

Simplicity S1A86

SHEAVE, 8", Iron or Steel

$

$

Not available

37

Simplicity S1BX7

CRANK, Sickle

$

$

Not available

38

Simplicity S1A180

BUSHING

$

$

Not available

39

Simplicity S1A14

ROD, Clutch

$

$

Not available

40

NUT, Hex Jam, 5/16-18

$

$

Not available

41

Simplicity S1A177

HOLDER

$

$

Not available

42

Simplicity S2A45

SPRING

$

$

Not available

43

Simplicity S2A22

COLLAR, Set

$

$

Not available

44

Simplicity S1A154

CLUTCH ROD, Adjustable

$

$

Not available

45

Simplicity S1A157

NUT, Clutch Rod

$

$

Not available

46

Simplicity S1A119

BELT, 33" Circle

$

$

Not available

47

Simplicity S1A156

CLUTCH ROD, Long

$

$

Not available

48

Simplicity S1A45

CLIP, Spring

$

$

Not available

49

FITTING, Grease, #1641

$

$

Not available

50

Simplicity S1A-193

ROD, Lower Idler

$

$

Not available

51

Simplicity S1AX16

ROD ASSEMBLY, Upper

$

$
