B - Simplicity Two-Wheeled Tractor, 1.5hp Disc Harrow Group (3736I04) Parts Diagram

Two-Wheeled Tractor, 1.5hp

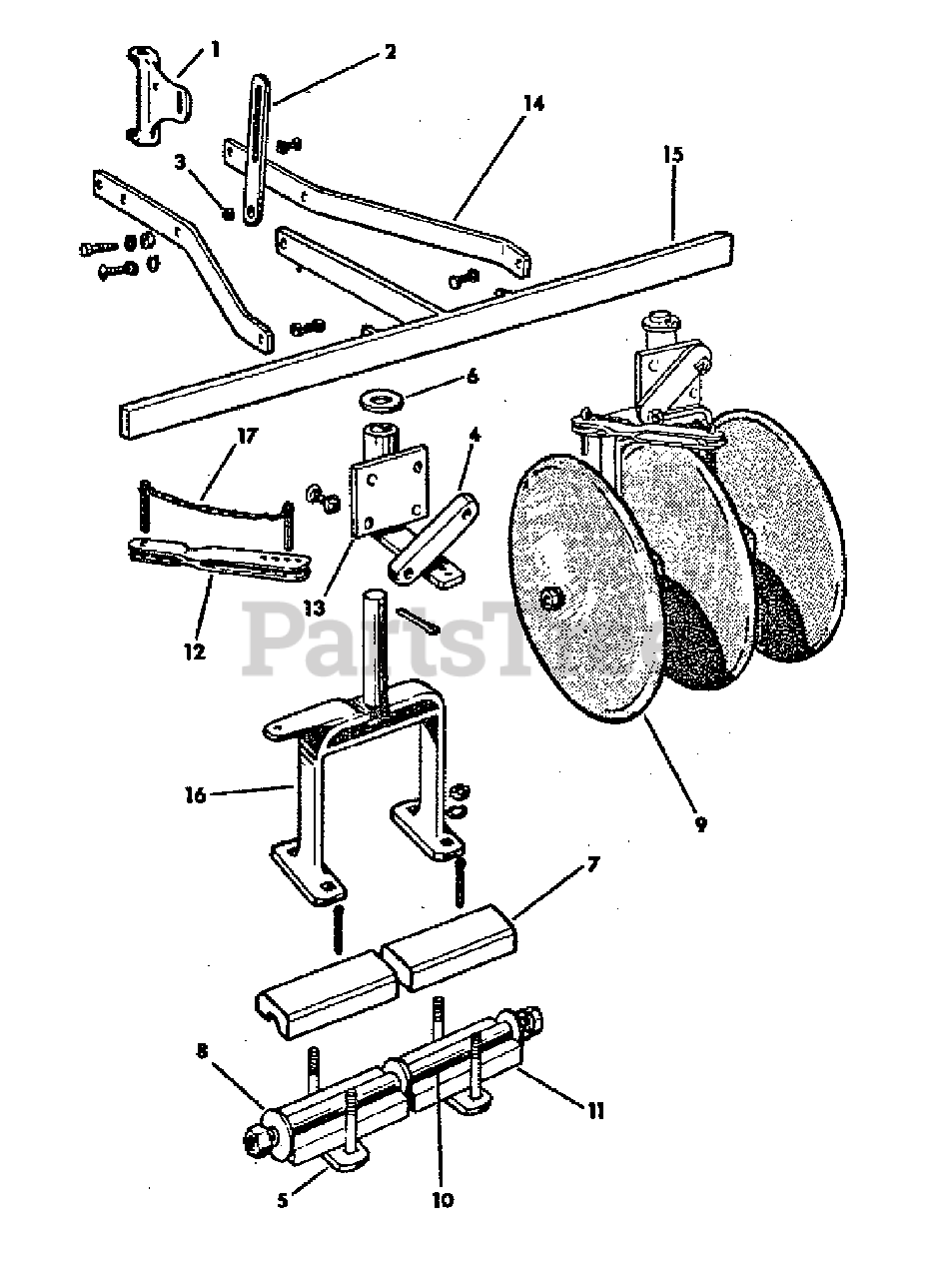

Disc Harrow Group (3736I04) Parts Diagram

  • Title

1

Simplicity SSA7

END, Draw Bar

$

$

Not available

2

Simplicity SSC-A3

LINK, Tilt Adjusting

$

$

Not available

3

Simplicity SSC-A4

LINK SPACER, Tilt Adjusting

$

$

Not available

4

Simplicity SSC-A8

CLIP, Clamp

$

$

Not available

5

Simplicity SSC-A13

CLIP, Bearing

$

$

Not available

6

Simplicity SSC-A14

WASHER, Post

$

$

Not available

7

Simplicity SSC-A15

BLOCK, Bearing (Upper)

$

$

Not available

8

Simplicity SSC-A16

SPACER, Disc

$

$

Not available

9

Simplicity SSC-A19

DISC

$

$

Not available

10

Simplicity SSC-A20

BOLT, Machine (Axle)

$

$

Not available

11

Simplicity SSC-A21

BLOCK, Bearing (Lower)

$

$

Not available

12

Simplicity SSC-AX1

STRAP ASSEMBLY, Angle Adjusting

$

$

Not available

13

Simplicity SSC-BX1

CLAMP ASSEMBLY

$

$

Not available

14

Simplicity SSC-C1

BAR, Draw

$

$

Not available

15

Simplicity SSC-CX1

BAR ASSEMBLY, Cross

$

$

Not available

16

Simplicity SSC-CS2

ARCH ASSEMBLY

$

$

Not available

17

CHAIN, 6"

$

$

Not available
