B - Simplicity Two-Wheeled Tractor, 1.5hp Cultivator Group (3736I03) Parts Diagram

Two-Wheeled Tractor, 1.5hp

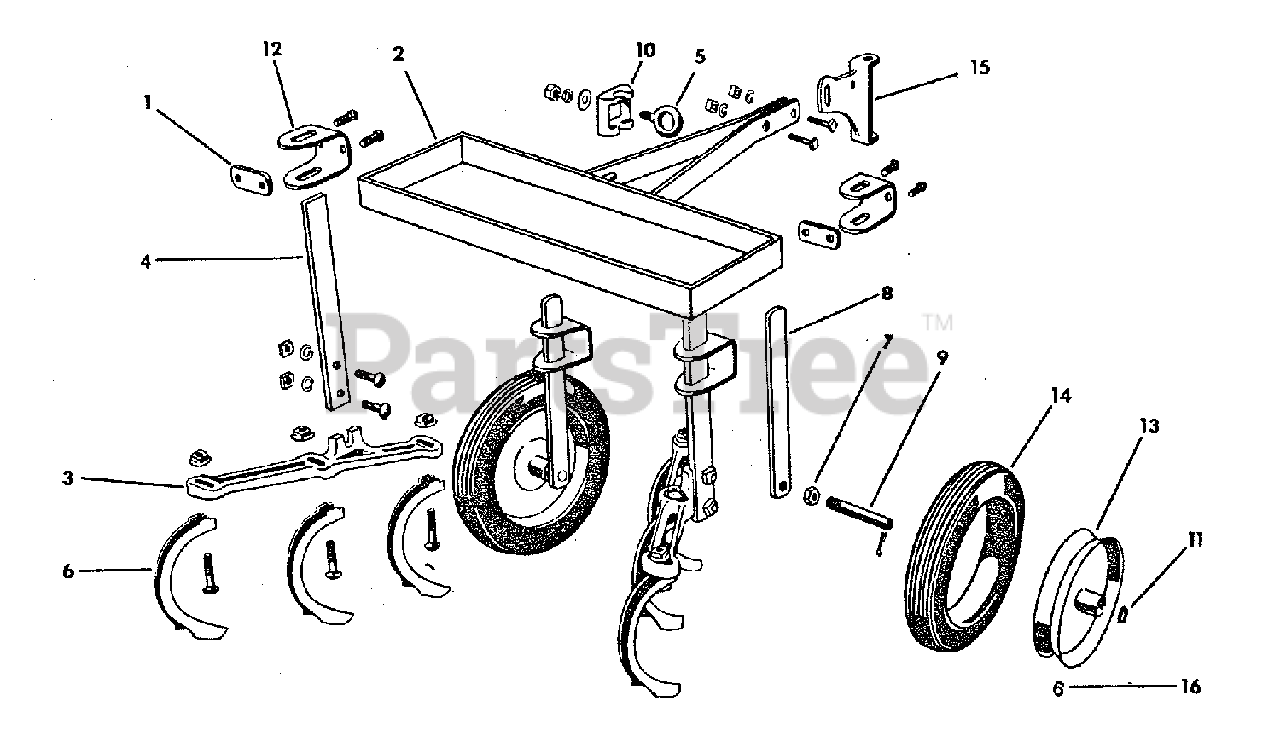

Cultivator Group (3736I03) Parts Diagram

  • Title
1

Simplicity S2A-A73

NUT, Special

$

$

Not available

2

Simplicity SSCX5A

FRAME, Cultivator

$

$

Not available

3

Simplicity SSB4

HOLDER, Tool

$

$

Not available

4

Simplicity SSA25

STANDARD, Tool

$

$

Not available

5

Simplicity S1A39

BOLT, Eye

$

$

Not available

6

Simplicity SSA30

TOOTH, Cultivator

$

$

Not available

7

NUT, Hex, Jam, 5/8-11

$

$

Not available

8

Simplicity SSA26

WHEEL STANDARD, Guage

$

$

Not available

9

Simplicity SSA54A

WHEEL SPINDLE, Guage

$

$

Not available

10

Simplicity S1A38

TOOL CONTROL HANDLE BLOCK

$

$

Not available

11

Simplicity SSA55

WHEEL, Washer for Guage

$

$

Not available

12

Simplicity S2A-A5B

CLAMP, Shank

$

$

Not available

13

Simplicity S1C4A

WHEEL, Cultivator

$

$

Not available

14

TIRE, Juvenile, 10 x 2

$

$

Not available

15

Simplicity SSA7

END, Draw Bar

$

$

Not available

16

FITTING, Grease, #1637

$

$

Not available
